Product Overview

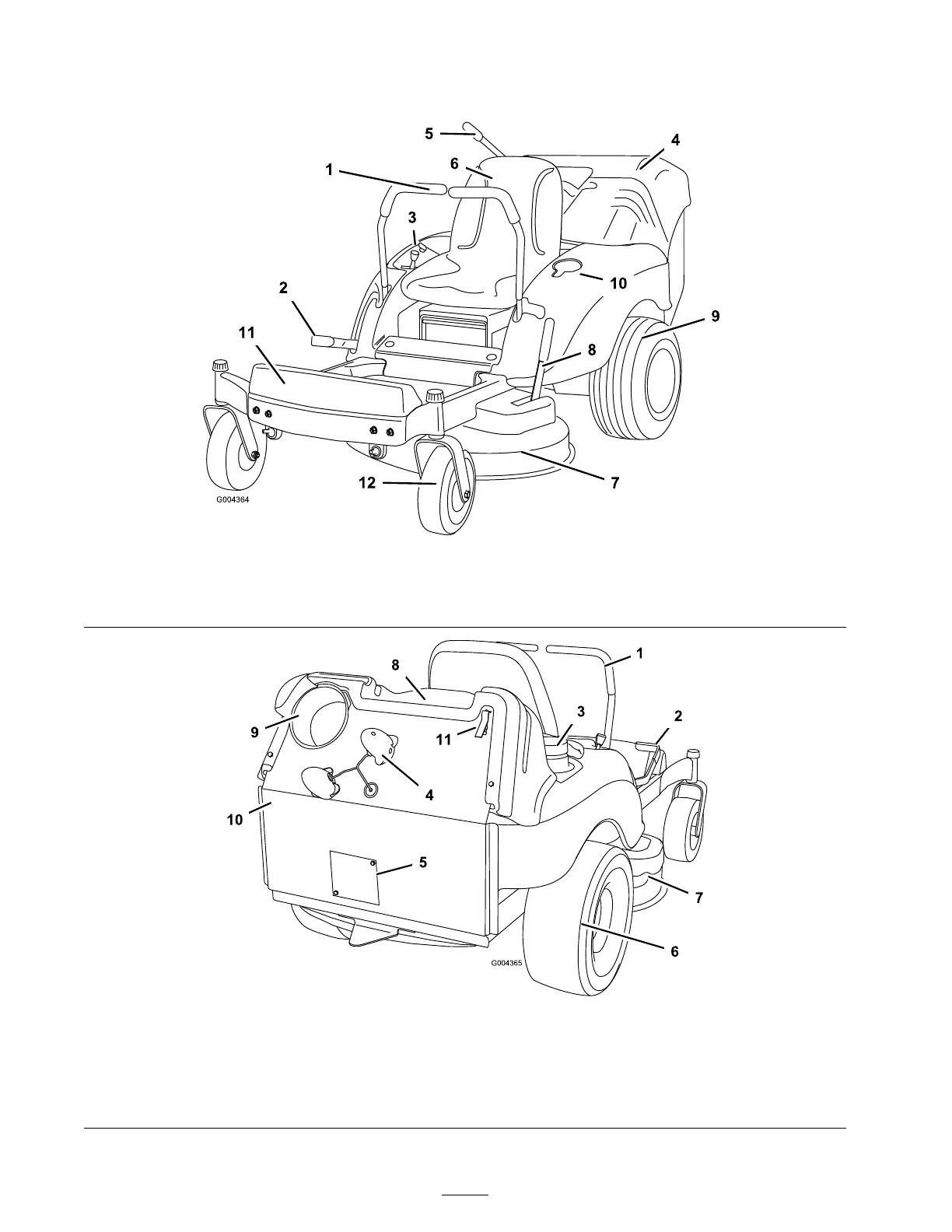

Figure 3
1. Motion control lever 4. Collection bag 7. Mower deck 10. Cup holder
2. Height-of-cut lever 5. DFS lever 8. Recycle-on-demand lever
11. Footrest
3. Control panel
6. Operator’s position, seat
9. Rear drive wheel 12. Front caster wheel
Figure 4
Collection bag removed
1. Motion control lever 4. Collection sensors
7. Engine cover
10. Mower deck
2. Height of cut lever 5. Rear access panel 8. Discharge chute 11. Collection bag presence
sensor
3. Gas tank cap 6. Rear drive wheel 9. Rear frame
