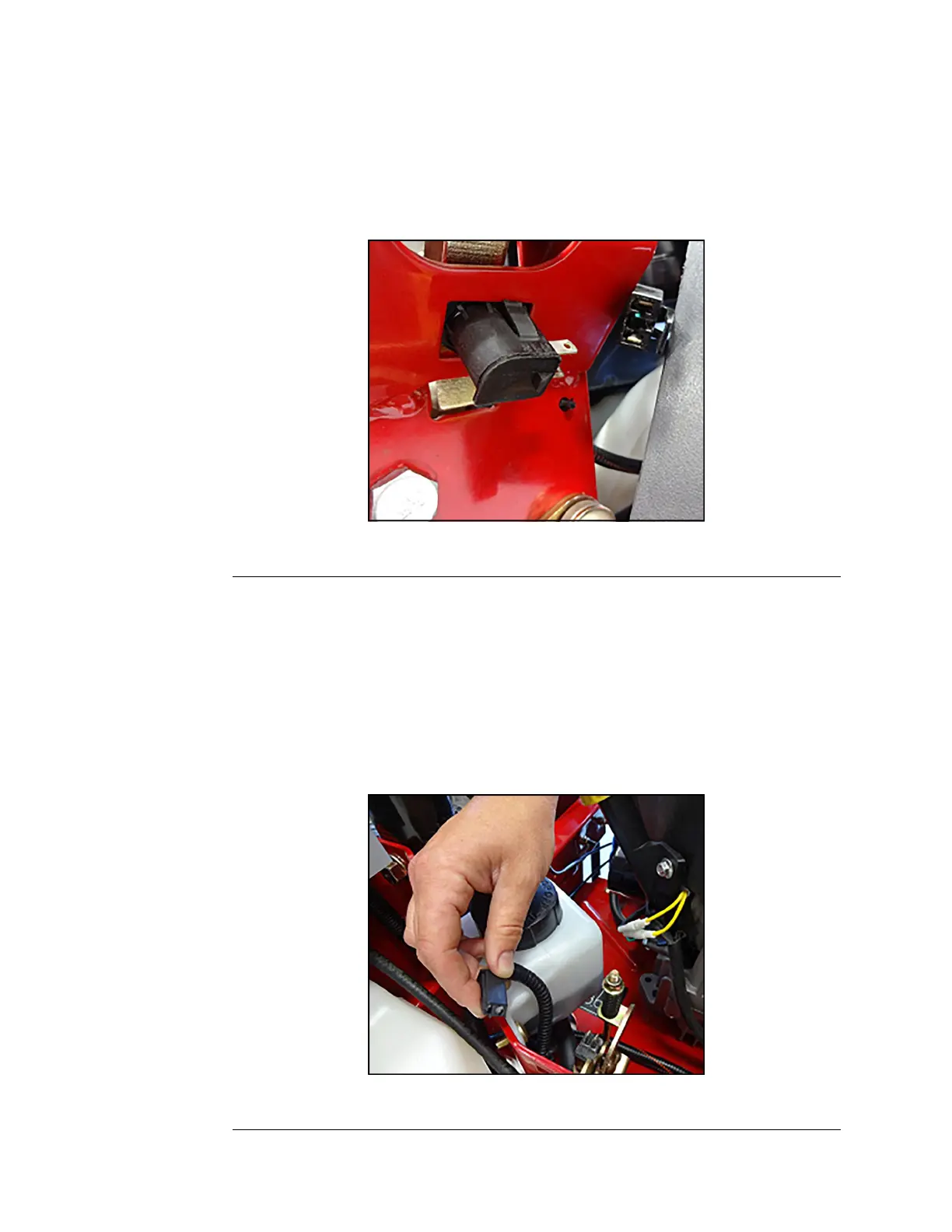

NeutralSwitch-LeftandRight
Theneutralswitchisasinglepoleplungertypeswitch(normallyopen)with
twoterminals.Whentheplungerisdepressed,thecircuitclosesandthereis
continuitybetweentheterminals.
Motioncontrolleversinneutralposition(OUT),theswitchwillhavecontinuity
(closed).
Motioncontrolleversintheoperatingposition(IN),theswitchwillNOThave
continuity(open).
g336403
Figure86
ParkingBrakeSwitch
Theparkingbrakeswitchisasinglepoleplungertypeswitch(normallyopen)
withtwoterminals.Whentheplungerisdepressed(parkingbrakeON),the
circuitclosesandthereiscontinuitybetweentheterminals.Thisallowsbattery
voltagetoowtotherestofthesafetyinterlocksystem.
ParkingbrakeON,theswitchshouldhavecontinuity(closed).
ParkingbrakeOFF,theswitchshouldNOThavecontinuity(open).
g336405
Figure87
Electrical:ServiceandRepairs
Page8–8
2000SeriesZMASTER®ServiceManual
