HydrostaticDriveTransmissionInstallation(continued)

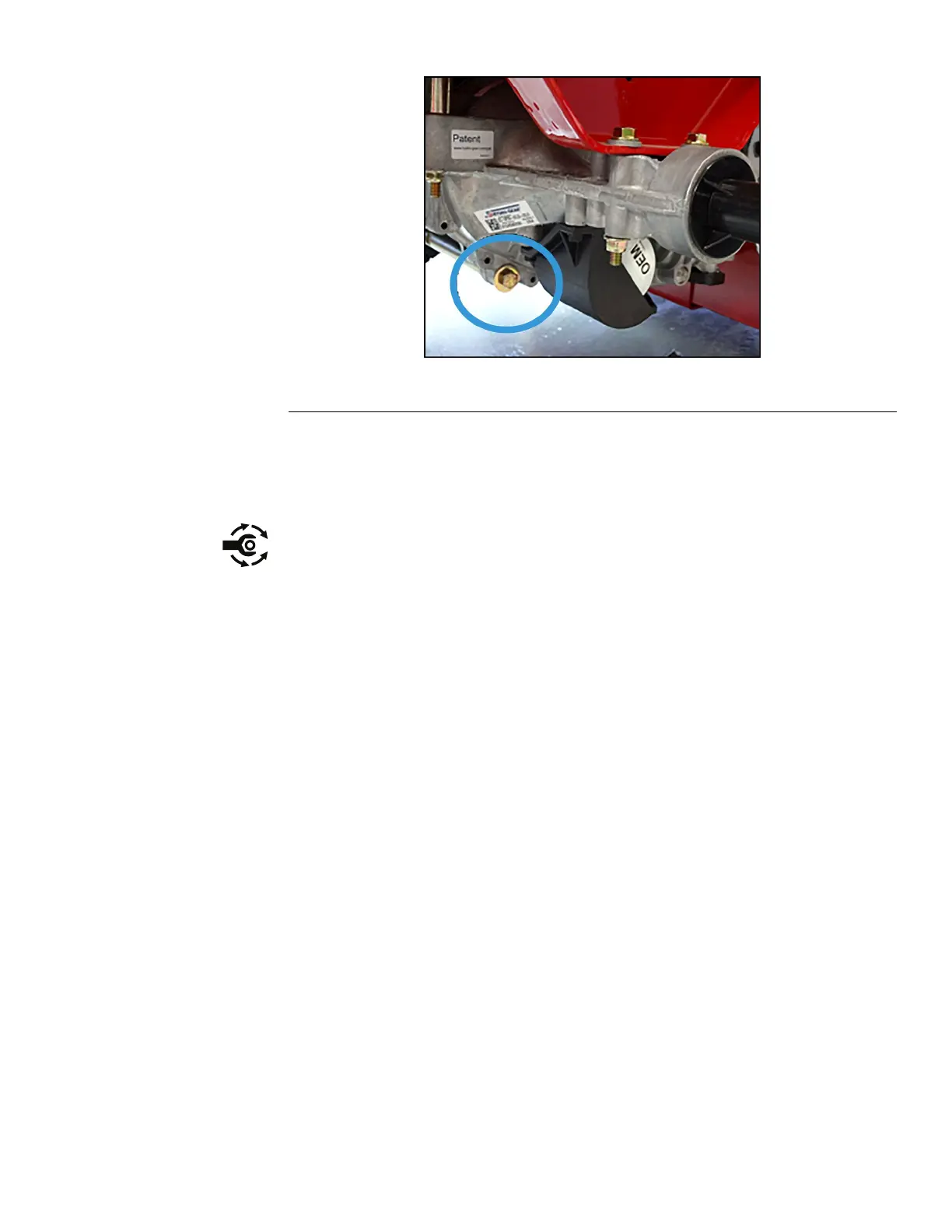

g336198

Figure77

3.Installthefrontandrearhydromountingbolts,washers,andnuts.Donot

tightenatthistime.

Note:Thepropertorquesequence,asoutlinedbelow,iscriticalinavoiding

damagetothehydrostatictransmissionandtheframe.

4.Tightenthecrossshaftboltandtorqueto52-65N•m(43±5ft-lb).

5.Tightentherearhydromountingbolt.

6.Tightenthe2axlehornbolts.

7.Tightenthefronthydromountingbolt.

8.Removetheprotectivecapfromthehydraulicoilnipple(ifinstallinganew

hydrostaticdrive).Installthehydraulicuidhose,andmovethehoseclamp

intoplace.

9.Connectthelowerbrakelinkagetothetransmission.

10.Connectthebypassarm.

11.Connectthemotioncontrollinkage.

Note:Attachthemotioncontrollinkageasshownwiththeoffsettoward

theoutsideofthemachine.

2000SeriesZMASTER®ServiceManual

Page7–11

DriveSystem:ServiceandRepairs

3438-778RevA
