Toro 74665 - Product Overview; Controls

ProductOverview

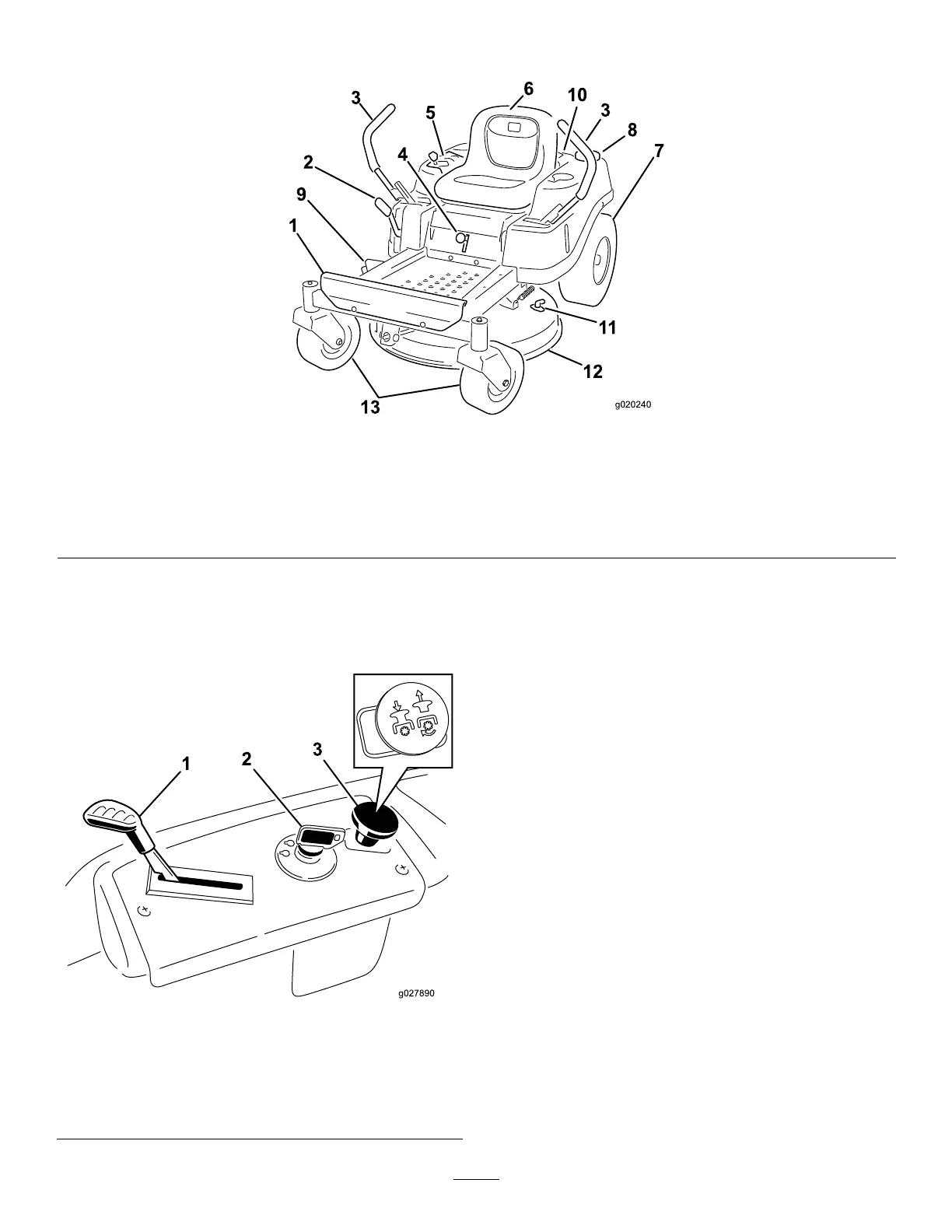

g020240
Figure5
1.Footrest
5.Controlpanel9.Deector
13.Frontcasterwheels
2.Height-of-cutlever6.Operatorseat
10.Engine
3.Motion-controllever7.Reardrivewheel
11.Washouttting
4.SmartSpeed
TM
lever
8.Fuel-tankcap12.Mowerdeck
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
g027890
Figure6
ControlPanel
1.Throttle/Choke
3.Blade-controlswitch
(powertakeoff)
2.Ignitionswitch
KeySwitch
Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andSTART.Referto
StartingtheEngine(page21).
Throttle/ChokeControl
Thethrottleandchokecontrolsarecombinedinto1
controllever.Thethrottlecontrolstheenginespeed
andhasacontinuous-variablesettingfromSLOWto
FAST(Figure6).
Blade-ControlSwitch(Power
Takeoff)
Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure6).
Motion-ControlLevers
Usethemotion-controlleverstodrivethemachine
forward,reverse,andturneitherdirection(Figure5).
11
