DriveSystem
Maintenance
CheckingtheTirePressure
ServiceInterval:Every25hours—Checktire
pressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseanuneven
cut.Checkthepressureatthevalvestem(Figure51).
Checkthetireswhentheyarecoldtogetthemost
accuratepressurereading.
Refertothemaximumpressuresuggestedbythetire
manufactureronthesidewallofthecasterwheeltires.
Inatethereardrive-wheeltiresto90kPa(13psi).

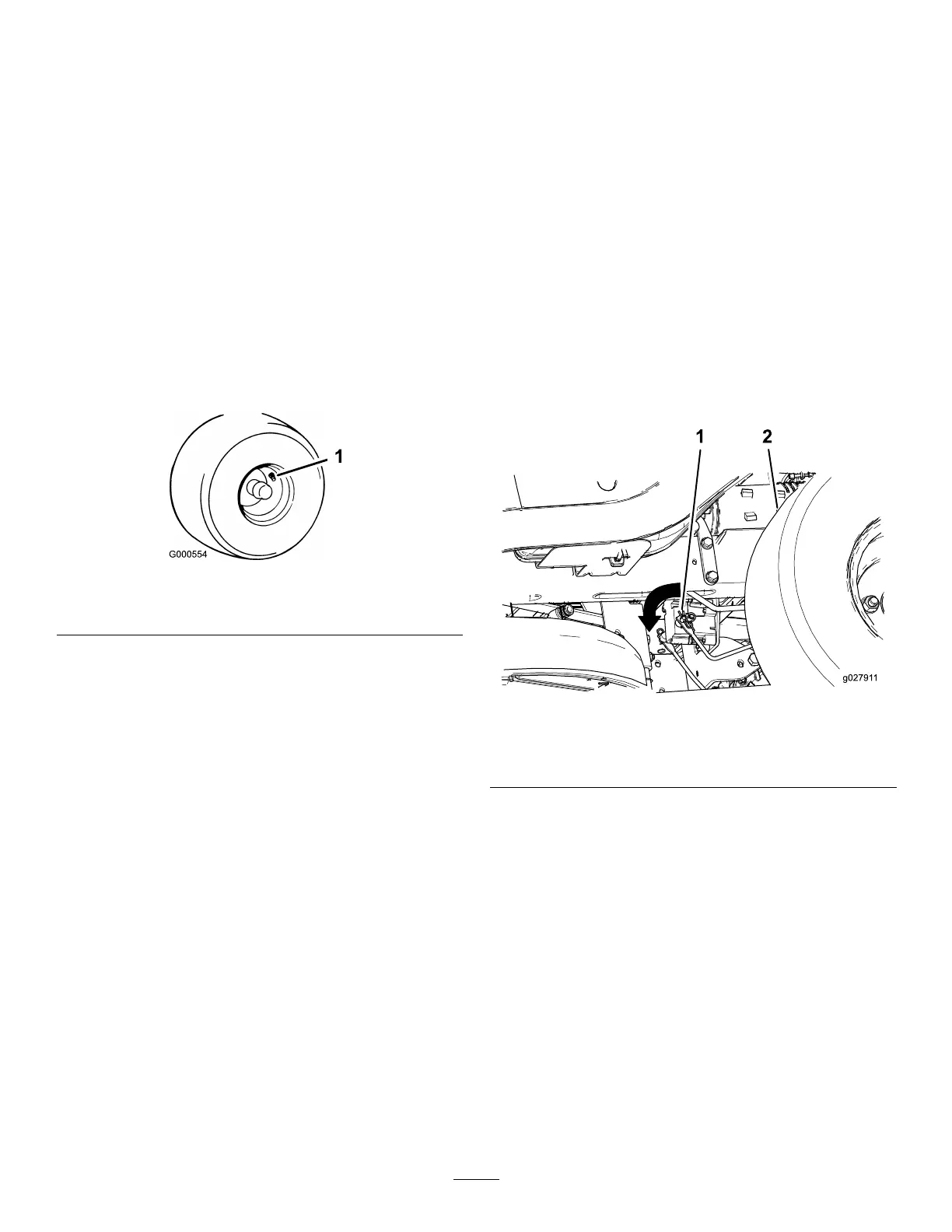

g000554
Figure51
1.Valvestem
ReleasingtheElectric
Brake
Youcanmanuallyreleasetheelectricbrakeby
rotatingthelinkarmsforward.Oncetheelectricbrake
isenergized,thebrakeresets.
1.TurnthekeytotheOFFpositionordisconnect
thebattery.
2.Loosenthebottom2boltsholdingthe
mower-deckcurtaintothemowerdeck.Referto
ReleasingtheMower-DeckCurtain(page30).
3.Locatetheshaftontheelectricbrakewherethe
brakelinkarmsareconnected(Figure52).
4.Rotatetheshaftforwardtoreleasethebrake.
5.Tightenthebottom2boltsforthemower-deck
curtaintothemowerdeck.RefertoReleasing
theMower-DeckCurtain(page30).
g027911
Figure52
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
