Toro 74822 - Page 46

G01031 1
2
3
1

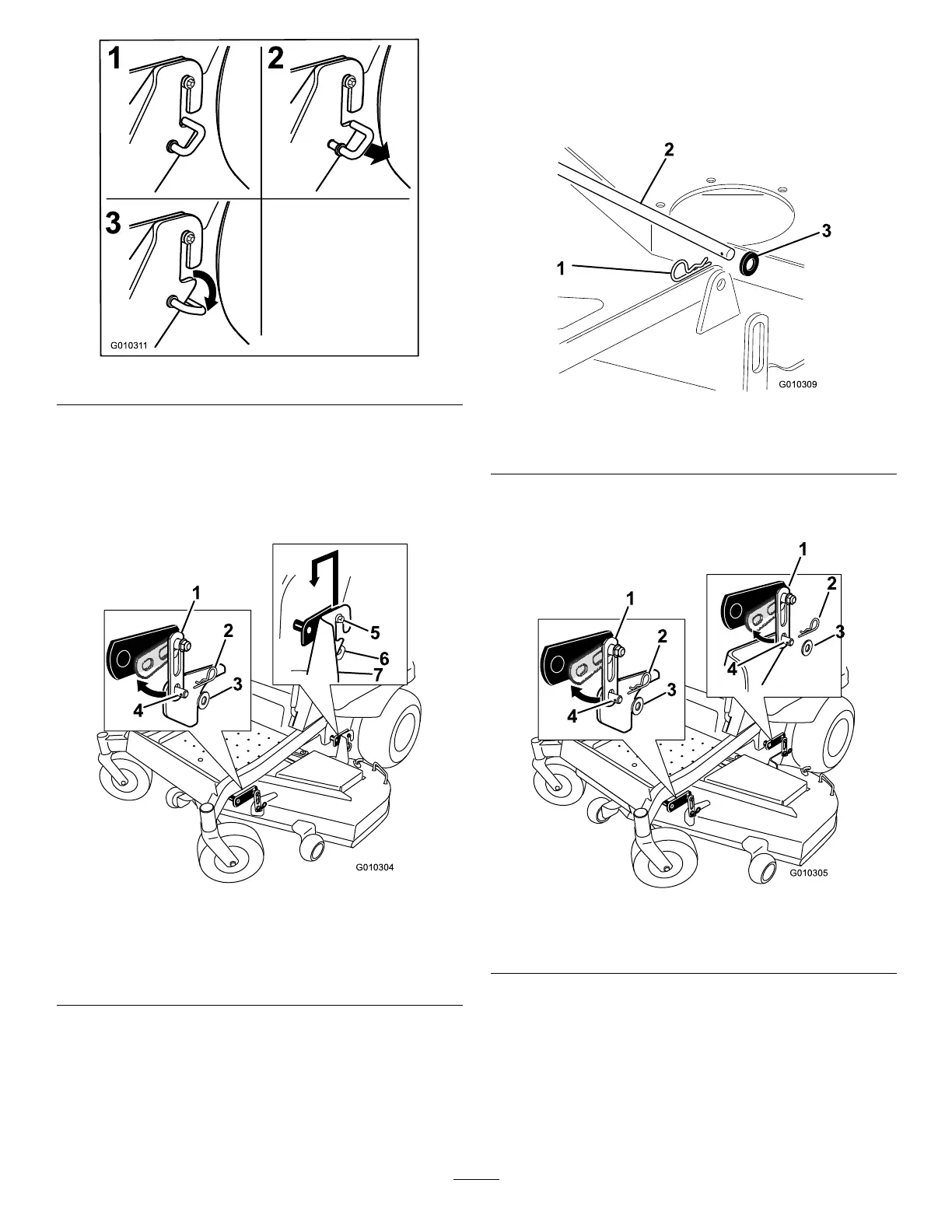

Figure66
2.Removethehardwarefromthefrontdeckhangers
onbothsidesofthedeck(Figure67).
3.Carefullyliftthedeckofftherearhangerboltsand
lowerthefrontofthemowerdecktotheground
(Figure67).
G010304
1
2
3
4
5
6
7
Figure67
1.Deckhanger5.Rearhangerbolts
2.Hairpincotter6.J-hook
3.Washer7.Reardeckhangerbracket
4.Weldedpostondeck
4.Raisetheheight-of-cuttothetransportposition
5.Slidethemoweroutfromunderneaththemachine.
Note:Retainallpartsforfutureinstallation.
60inchMowerDecks
1.Removethehairpincotterandwashersecuringthe
long,linkbartotheframeanddeck;removethelink
bar(Figure68).
G010309
1
2
3
Figure68
1.Hairpincotter3.Linkbar
2.Washer
2.Removethehardwarefromthefrontandreardeck
hangersonbothsidesofthedeck(Figure67).
G010305
1
2
3
4
1
2
3
4
Figure69
1.Deckhanger3.Washer
2.Hairpincotter4.Weldedpostondeck
3.Raisetheheight-of-cuttothetransportposition
4.Slidethemoweroutfromunderneaththemachine.
Note:Retainallpartsforfutureinstallation.
46
