Toro 74882 - Pushing the Machine by Hand

4
1
2
G015764
3
5

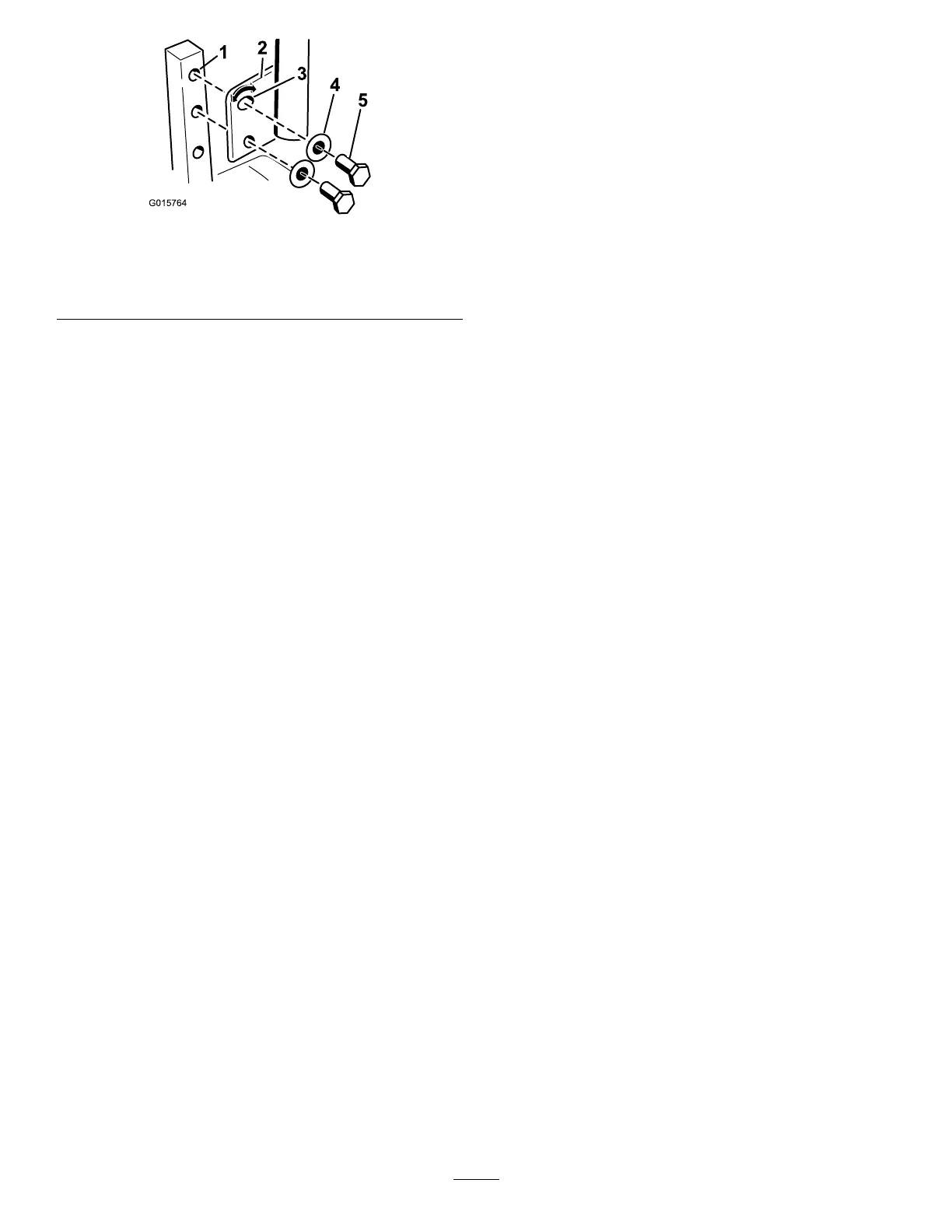

Figure26
1.Controlarmshaft
4.Washer
2.Controllever
5.Bolt
3.Slotted,upperhole
3.Repeattheadjustmentfortheoppositecontrollever.
AdjustingtheTilt
Themotioncontrolleverscanbetiltedforwardorbackward
formaximumoperatorcomfort.
1.Loosentheupperboltholdingthecontrollevertothe
controlarmshaft.
2.Loosenthelowerboltjustenoughtopivotthecontrol
leverforwardorbackward.
3.Tightenbothboltstosecurethecontrolinthenew
position.
4.Repeattheadjustmentfortheoppositecontrollever.
PushingtheMachinebyHand
Important:Alwayspushthemachinebyhand.Machine
damagecanoccurwhenthemachineistowed.
ToPushtheMachine
1.Parkthemachineonalevelsurfaceanddisengagethe
bladecontrolswitch.
2.Engagetheparkingbrake.
3.Movethemotioncontrolleversoutwardtoneutrallock
position,stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.
4.Locatethebypassleversattherearofthemachine,on
theleftandrightsideoftheframe.
5.Movethebypassleversrearwardandthendownto
locktheminplaceasshownin
Figure27todisengage
thewheelmotors.
Note:Ensurethattheleftandrightbypassleversare
rearwardandlockedbeforemovingthemachine.
6.Disengagetheparkingbrake.
Themachineisnowabletobepushedbyhand.
23
