Assembly
10
1
4
2
3
5
m–3619

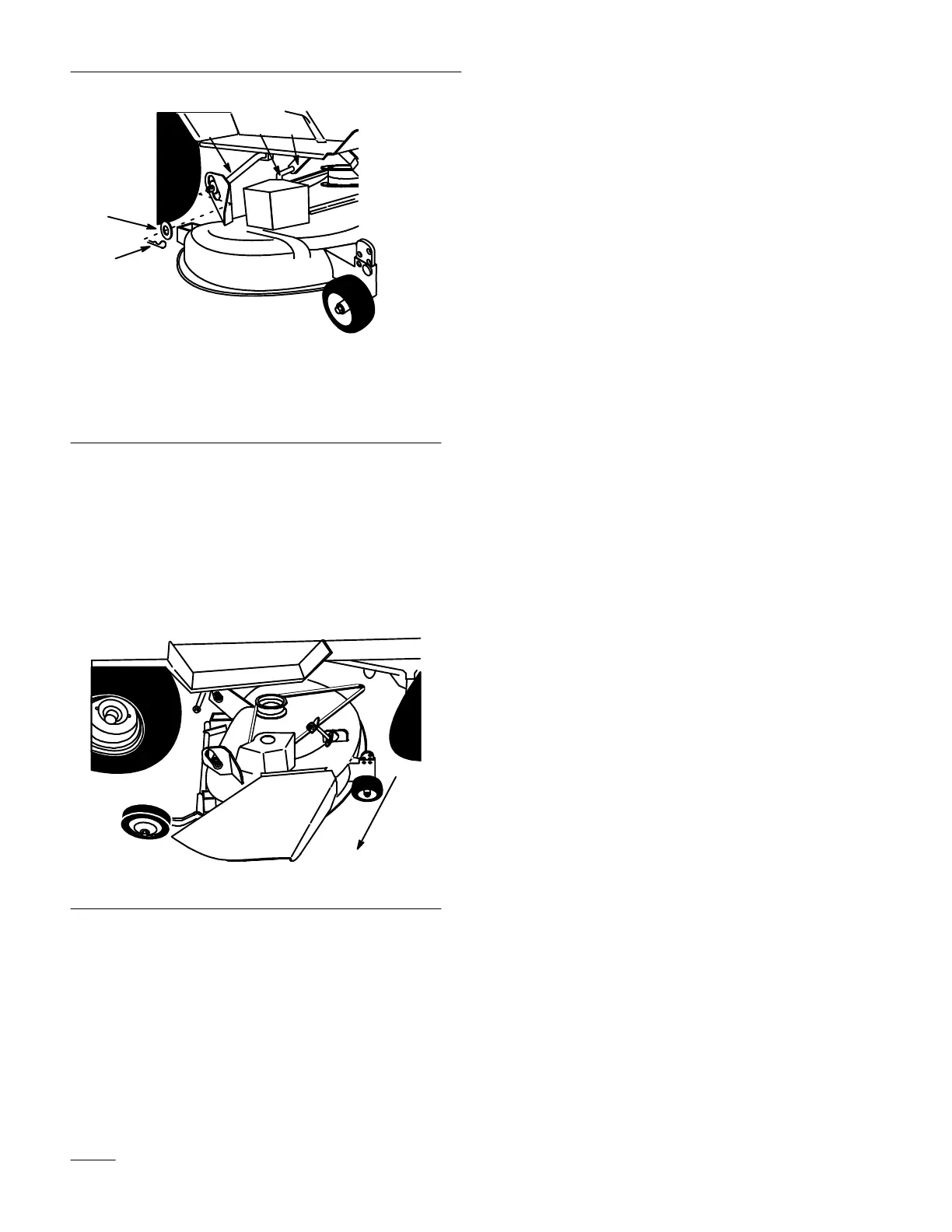

Figure 13
1. Lift
arm
2. Washer
3.
Hair pin cotter
4.
Rear link
5.
Attachment lift
8. Turn the front wheels fully to the left and raise
attachment lift lever all the way to the latched
position; refer to tractor Operator’
s Manual.
Slide the mower out from under the chassis to
the the right side (Fig. 14)
Note: Save all hardware, washers and hairpin
cotters for use when installing deck.
