Toro CM Series - Fuel Tank and Oil Level Checks; Filling the Fuel Tank

1
G019799

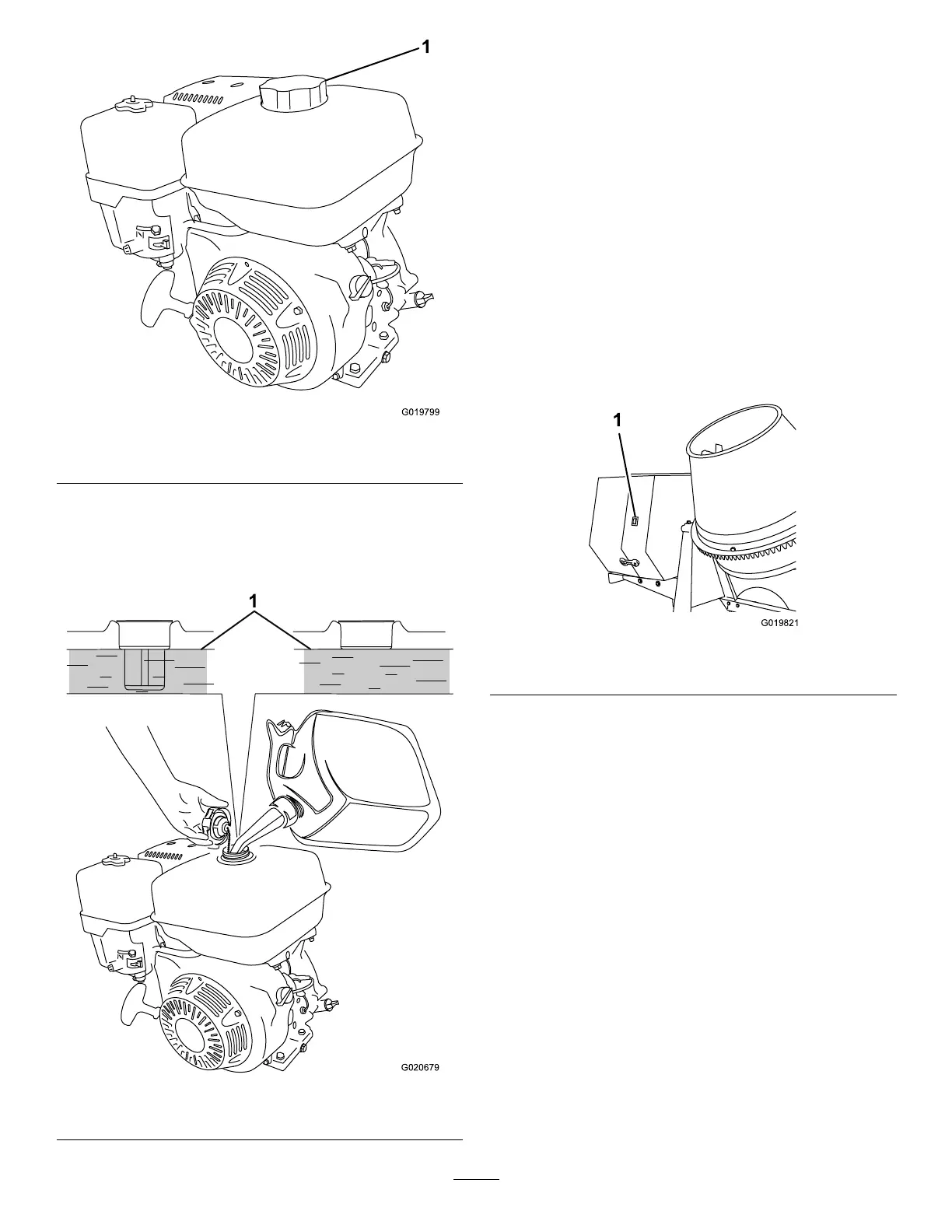

Figure33
1.Fuelcap
3.Addfueltothefueltank,untilthelevelisatthebottom
ofthemaximumfuellevel,asshowninFigure34.
Important:Thisspaceinthetankallowsthefuel
toexpand.Donotllthefueltankcompletelyfull.
G020679
1
Figure34
1.Maximumfuellevel
4.Installthefuelcapsecurely(Figure33).
5.Wipeupanyfuelthatmayhavespilled.
CheckingtheEngine-OilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page32).
StartingandShuttingOffthe
Engine
StartingtheEngine
1.Ontheenginecowl,movetheengineswitchtotheON
position(Figure35).
G019821
1
Figure35
1.Engineswitch
2.Ontheengine,movethethrottleleverawayfromthe
MINposition,1/3ofthewaytowardtheMAXposition
(Figure36).
