Toro ECXTRA Sprinkler Timer User Manual

Outdoor Model Installation

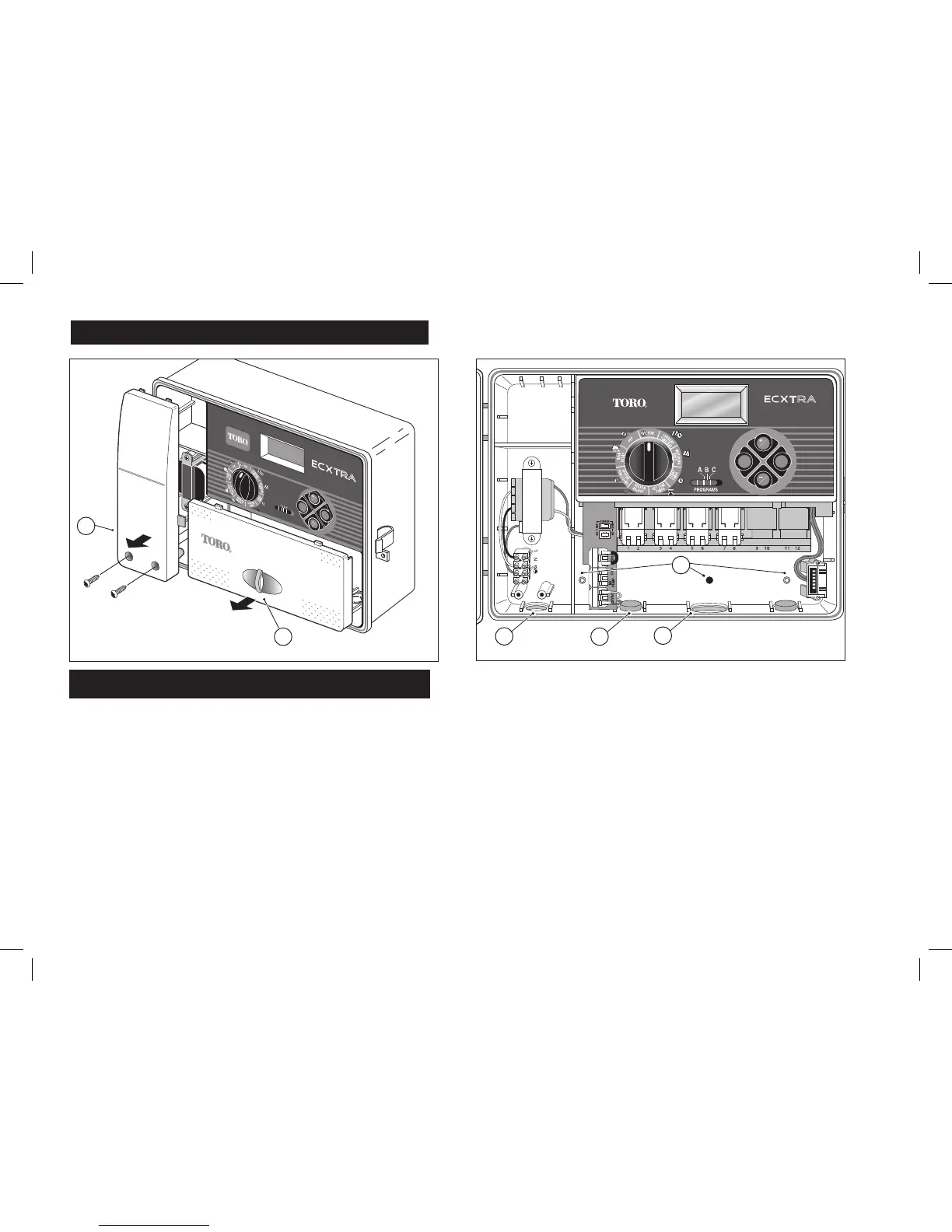

1. Remove the lower housing cover (A) by pulling
outward on the handle.
2. Remove the two phillips screws from the transformer
access cover (B). Pull the cover outward from the
bottom to remove.
3. Three lower mounting holes (C) are provided. The
center hole is open and the outer holes are plugged.
If you intend to use the outer holes for installation,
carefully drill through the plugs with a 3/16″ (6mm)
drill bit.
Three wiring access holes are provided in the cabinet
base as follows:
(D) - 1/2
″ (13mm) for power and equipment ground
wires.
(E) - 1/2
″ (13mm) for optional Toro RainSensor wires.
(F) - 3/4
″ (19mm) for sprinkler valve wires.
4. If planning to install the optional Toro RainSensor,
remove hole plug.
Preparing the Cabinet for Installation
9
MANUAL
START
O
N
N
E
X
T
O
F
F
MANUAL
S
TART
O
N
N
E
X
T
O
F
F
PROGRAMS
B
C
A
R
B
CA
MANUAL
START
ON
NEXT
OFF
A
B
C
F
E
D

Toro ECXTRA Sprinkler Timer Specifications

General

Brand	Toro
Model	ECXTRA Sprinkler Timer
Category	Timer
Language	English
