Groundsmaster 4100--D/4110--D Page 1 -- 5 Safety
Jacking Instructions
CAUTION
When changing attachments, tires or perform-
ing other service, use correct jacks and sup-
ports. Make sure machine is parked on a solid,
level surface such as a concrete floor. Prior to
raising machine, remove any attachments that
may interferewith the safe and proper raising of
themachine.Alwayschockorblockwheels.Use
jackstands to supportthe raised machine.If the
machine is not properly supported by jack
stands, the machine may move or fall, which
may result in personal injury.
Jacking the Front End (Fig. 1)
1. Set parking brake and chock both r ear tires to pre-
vent the machine from moving.
2. Position jacksecurelyunder the frame,justtothein-
side of the front tire. Jack front wheel off the ground.
3. Once the machine is raised, position suitable jack
standunder the frame as closetothe wheelaspossible
to support the machine.
Jacking the Rear End (Fig. 2)
1. Place jack securely under the center of rear axle.
2. Chock both front tires. Jack rear of machine off the
ground.
3. Oncethemachineisraised,usesuitablejackstands
under the rear axle to support the machine.

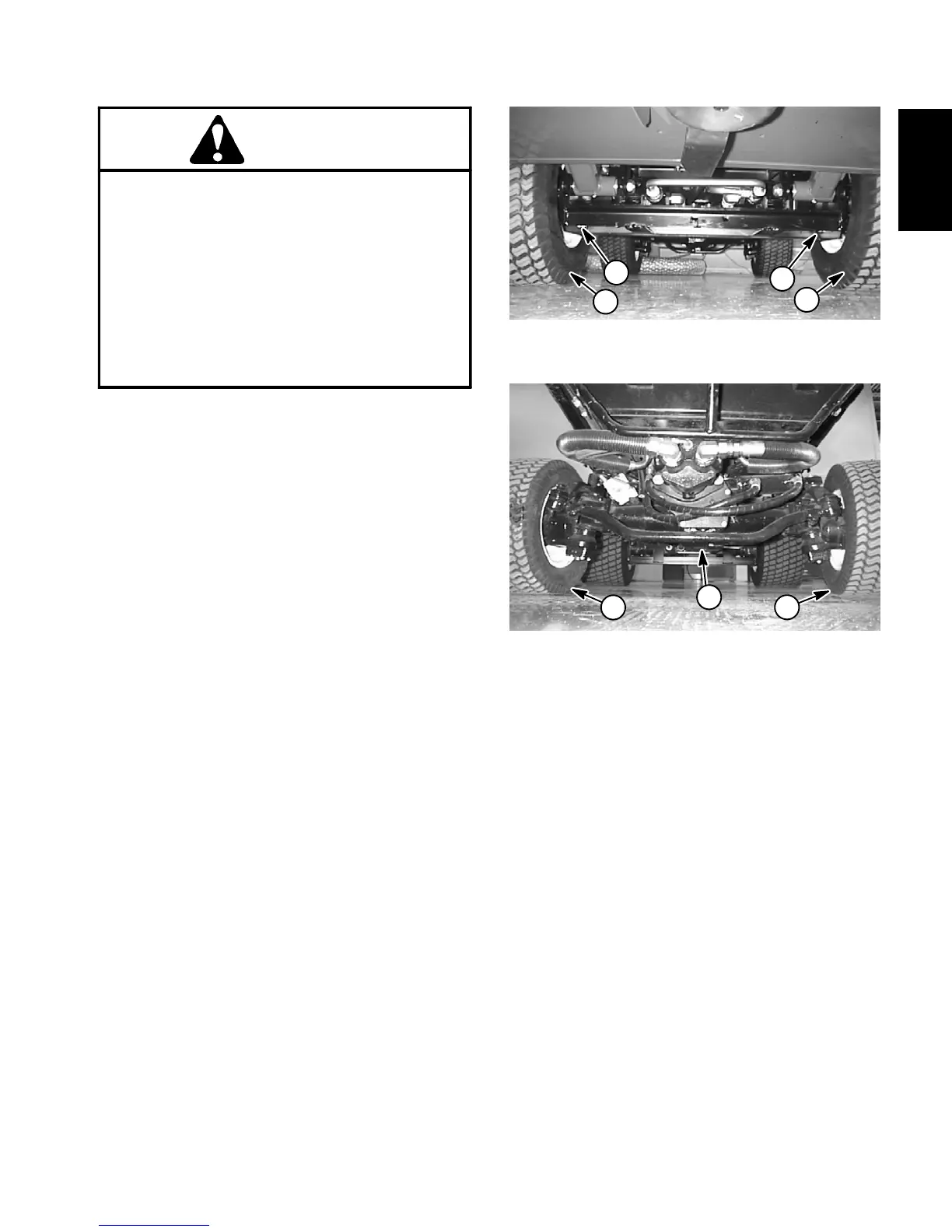

1. Frame jacking point 2. Front tire
Figure 1
1
2
2
1
1. Rear axle jacking point 2. Rear tire
Figure 2
1
2
2
