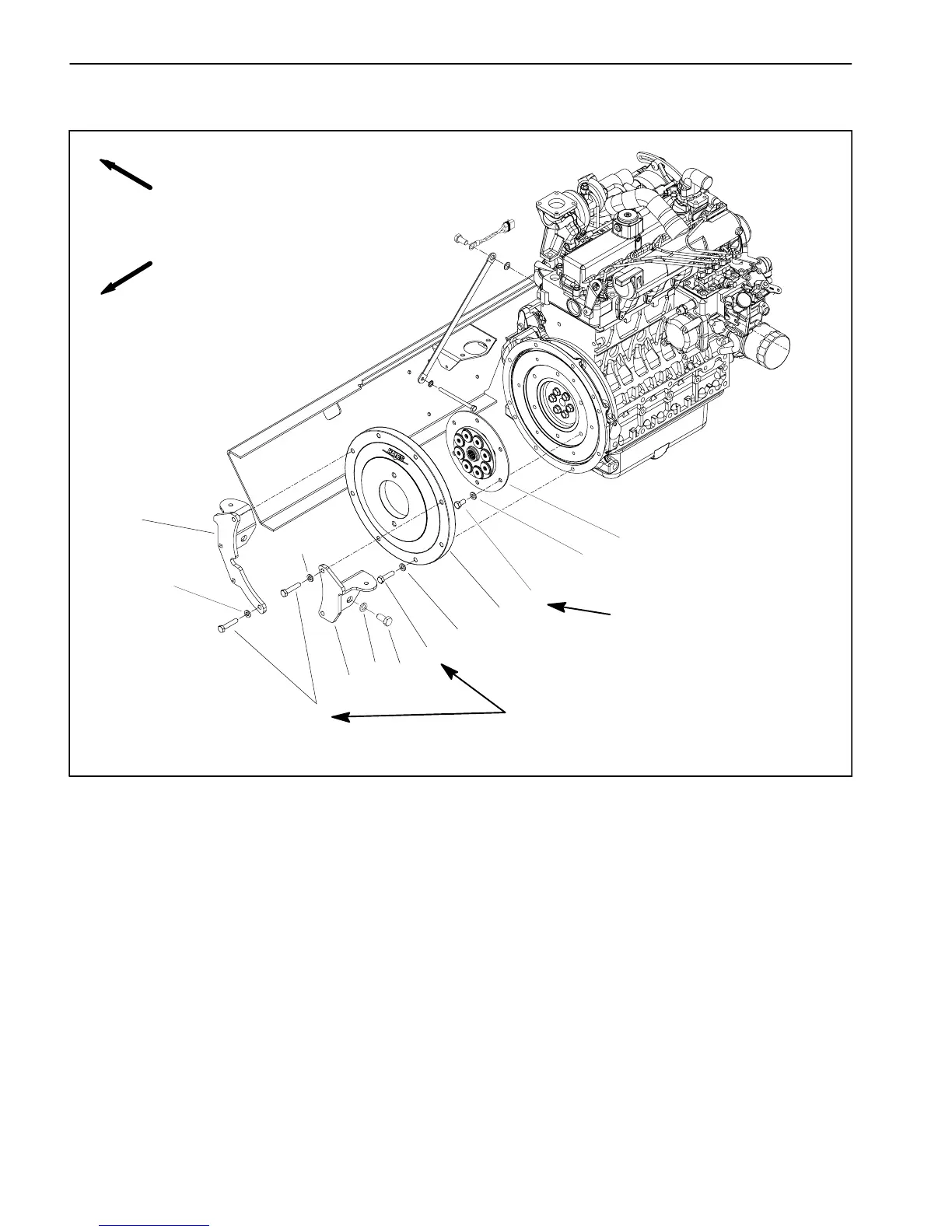

Groundsmaster 4100--D/4110--DPage 3 -- 18Kubota Diesel Engine
Spring Coupler
Figure 17
1. Spring coupler
2. Washer (14 used)
3. Cap screw (6 used)
4. Flywheel plate
5. Cap screw (4 used)
6. LH engine mount
7. Cap screw (2 used)
8. RH engine mount
9. Lock washer (2 used)
10. Cap screw (2 used)
1
2
3
6
5
4
7
2
8
FRONT
RIGHT
(38to43N--m)
28 to 32 ft--lb
2
2
Loctite #242
(40to44N--m)
29 to 33 ft--lb
Loctite #242
9
10
