Toro Groundsmaster 4110-D Service Manual

Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 114

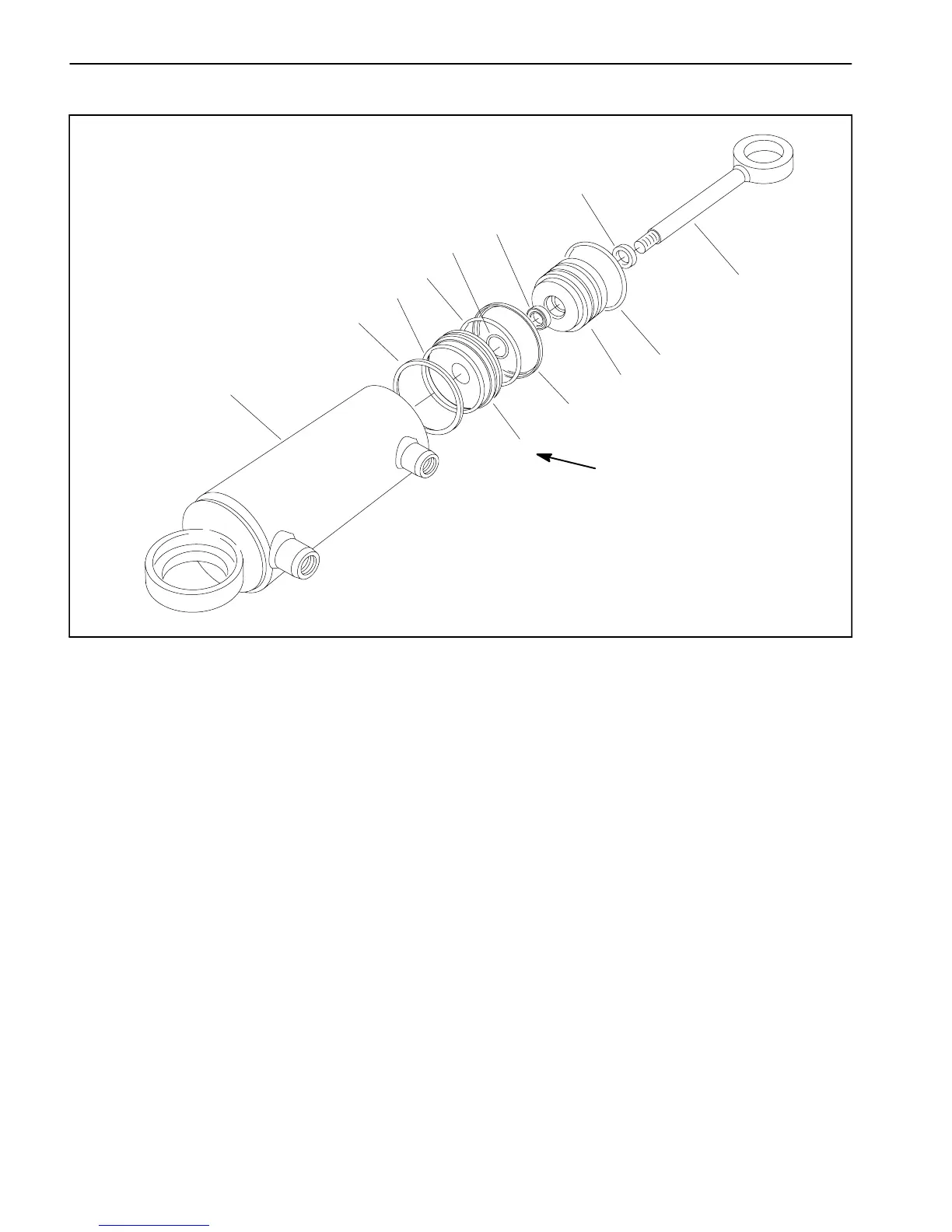

Steering Cylinder Service
1. Tube assembly
2. Rod
3. Piston assembly
4. Head
5. Retaining ring
6. Backup ring
7. O--ring
8. Cap seal
9. Rod seal
10. O--ring
11. O--ring
12. Wiper
Figure 78
45 to 55 ft--lb
(62to74N--m)
1
6
7
3
9
10
4
11
2
8
5
12
