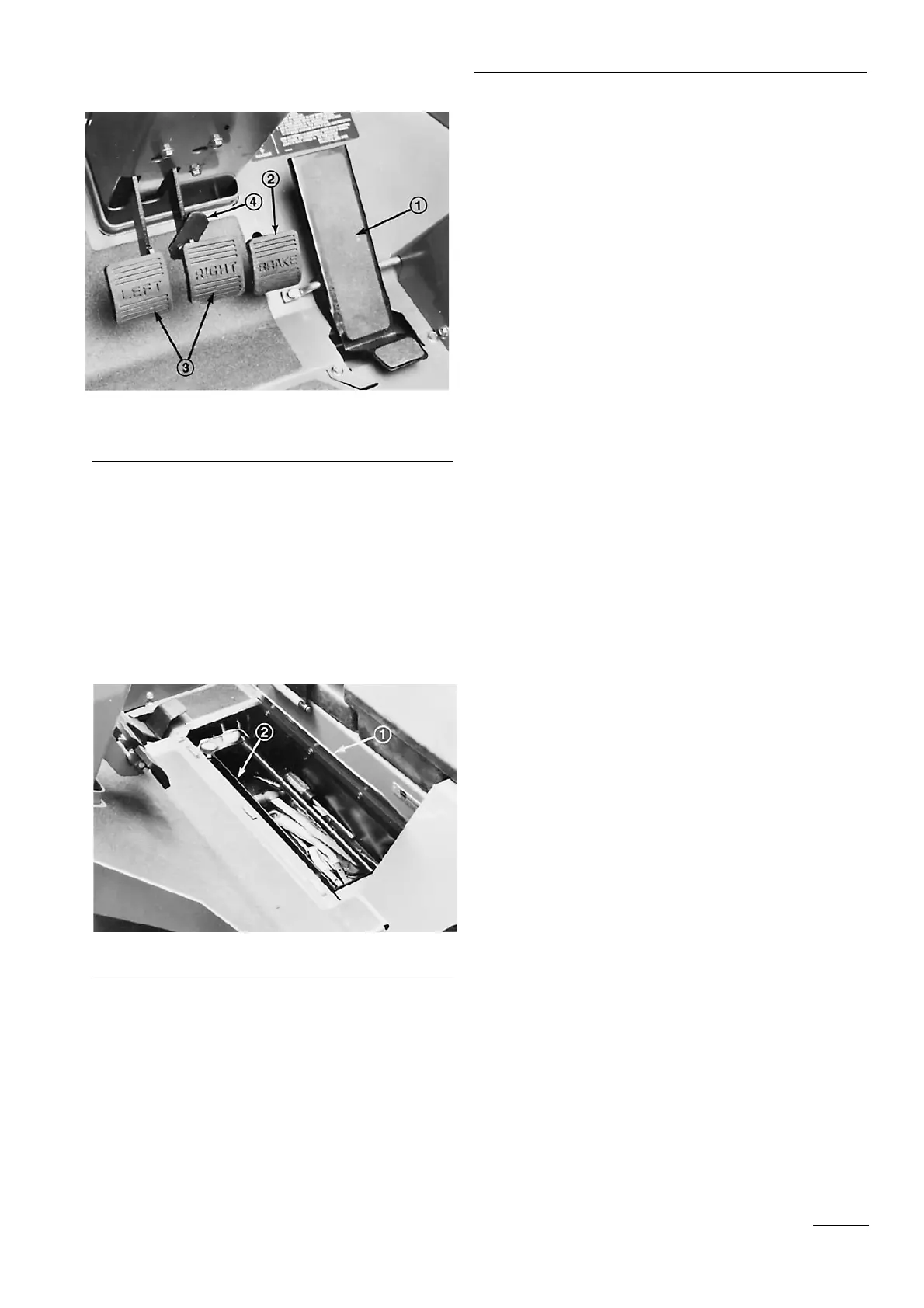

Figure 19
1. Traction pedal
2. Brake pedal
3. Steering/parking brake pedals
4. Brake latch lever
Brake Pedal (Fig. 19)—A pedal operated by the right foot
actuates fully enclosed, multiple-disc front brakes.
Note: There is dynamic braking through the closed-loop
hydrostatic traction drive system.
Storage (Fig. 20)—A large removable tool storage tray is
located under a hinged floor plate. A small storage and
beverage holder is to the operator’s right.
Figure 20
1. Hinged floor plate
2. Removable tool tray
19
Controls
