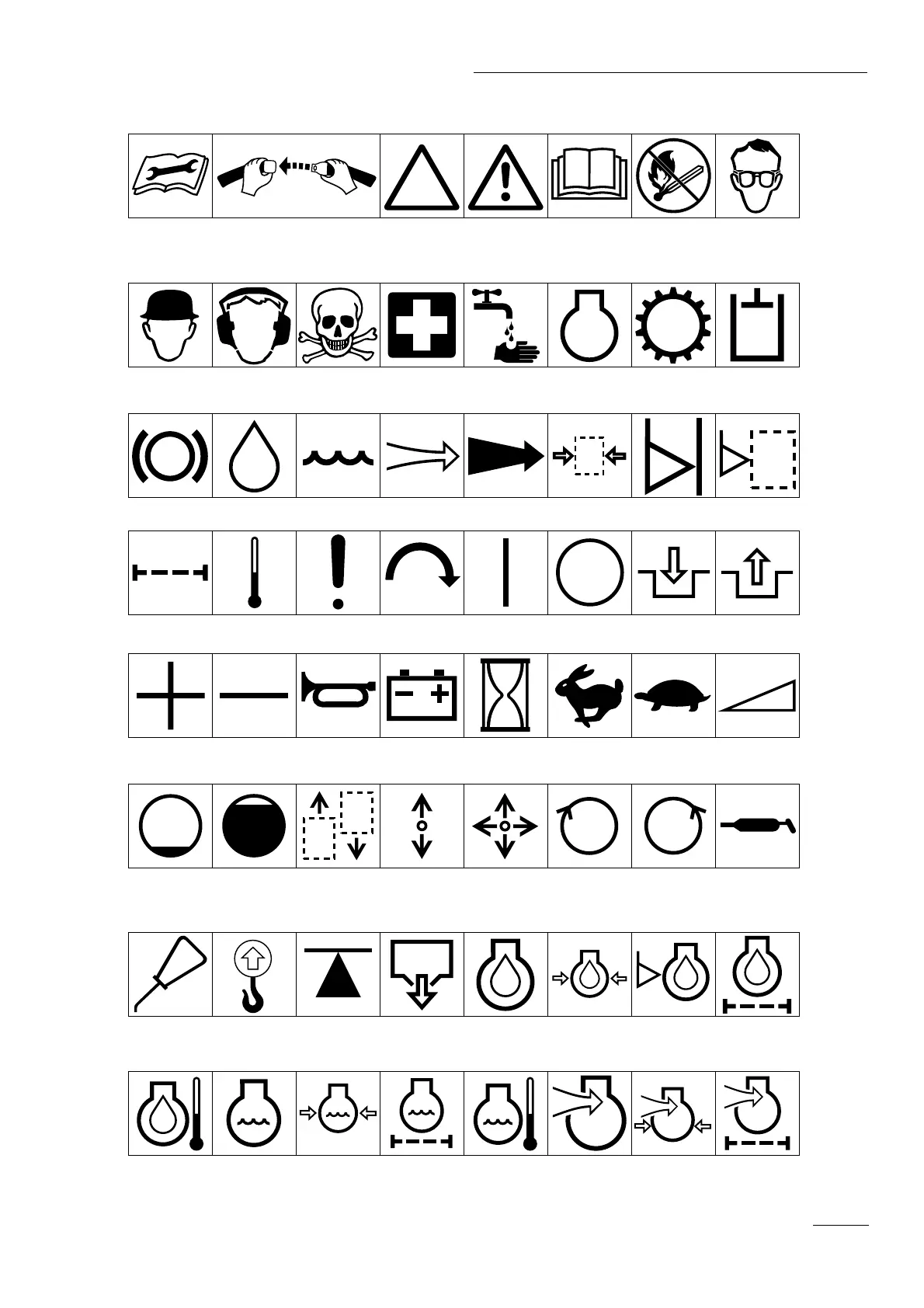

Safety Instructions
7
Fasten seat
belts
Safety alert
triangle
Outline safety
alert symbol
Read operator’s
manual
Fire, open light
and smoking
prohibited
Eye protection
must be worn
Consult technical
manual for proper
service
procedures
Hearing
protection must
be worn
Caution, toxic
risk
Head protection
must be worn
Flush with water Engine Transmission Hydraulic systemFirst aid
Oil Coolant (water) Intake air Exhaust gas Pressure Level indicator Liquid level
Brake system
Disengage
Filter Temperature Failure/
Malfunction
Start switch/
mechanism
On/start Off/stop Engage
Plus/increase/
positive polarity
Minus/decrease/
negative polarity
Horn
Battery charging
condition
Hourmeter/
elapsed operating
hours
Fast Slow Continuous
variable, linear
Volume empty Volume full Machine travel
direction,
forward/
rearward
Control lever
operating
direction, dual
direction
Control lever
operating
direction, multiple
direction
Clockwise
rotation
Counter-clock-
wise rotation
Grease
lubrication
point
Oil lubrication
point
Lift point Jack or
support point
Draining/
emptying
Engine lubricat-
ing oil
Engine
lubricating
oil pressure
Engine lubricating
oil level
Engine lubricating
oil filter
Engine lubricating
oil temperature
Engine coolant
Engine coolant
pressure
Engine coolant
filter
Engine coolant
temperature
Engine intake/
combustion air
Engine intake/com-
bustion air pressure
Engine intake/air
filter
