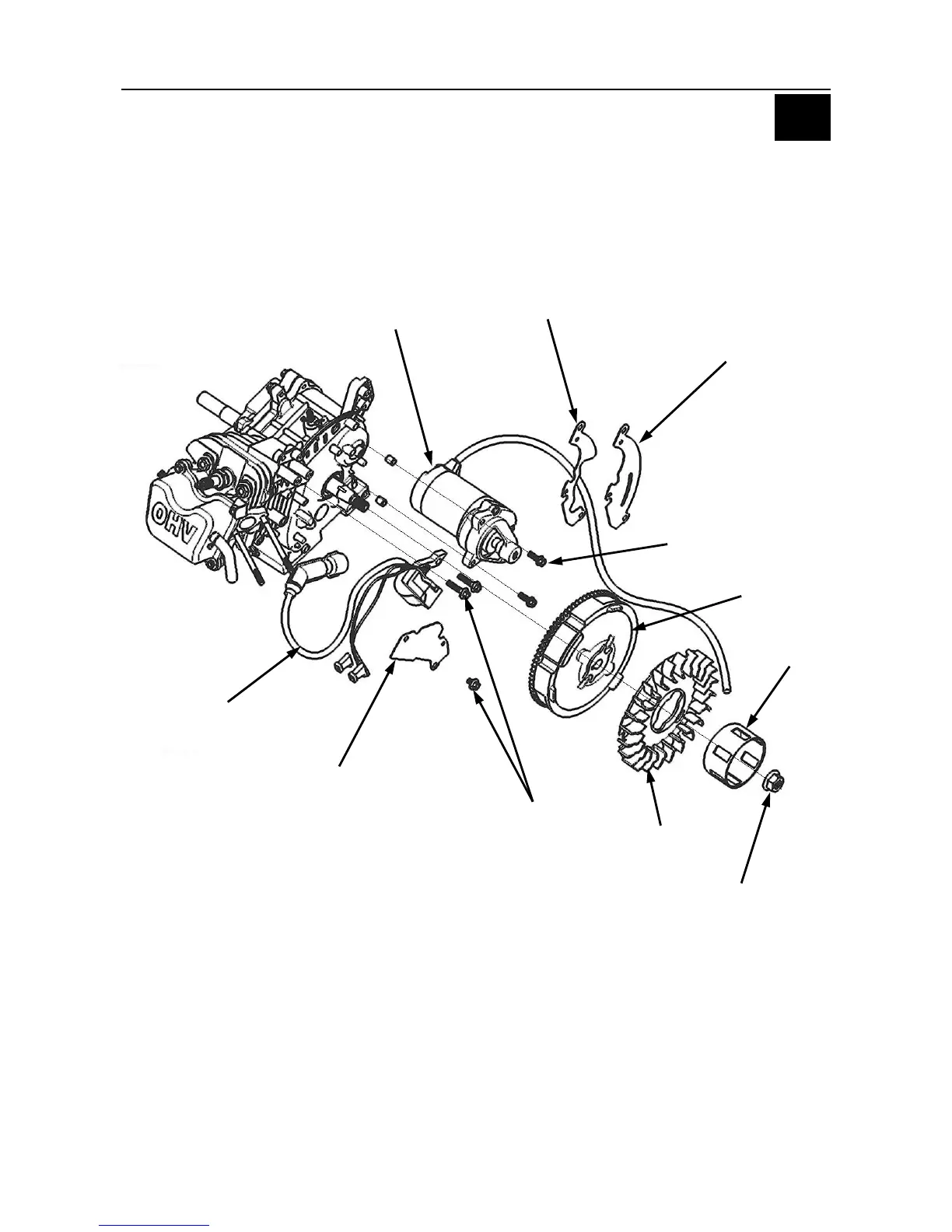

Starter / Flywheel / Coil Exploded View
Image for Reference Only
Starter Removal
1. Remove recoil and shroud asm.
2. Remove flywheel with an appropriate puller.
3. Remove the fasteners securing the starter motor to the engine and remove starter asm.
Starter Asm.
(Optional)
Blower Shroud
Electric Start
Blower Shroud
Recoil Start
Side Plate
7 ft-lbs (10 Nm)
7 ft-lbs (10 Nm)
Ignition Coil Asm.
Flywheel Nut
62.5 ft-lbs (85 Nm)
Cup
Fan
Flywheel
3
