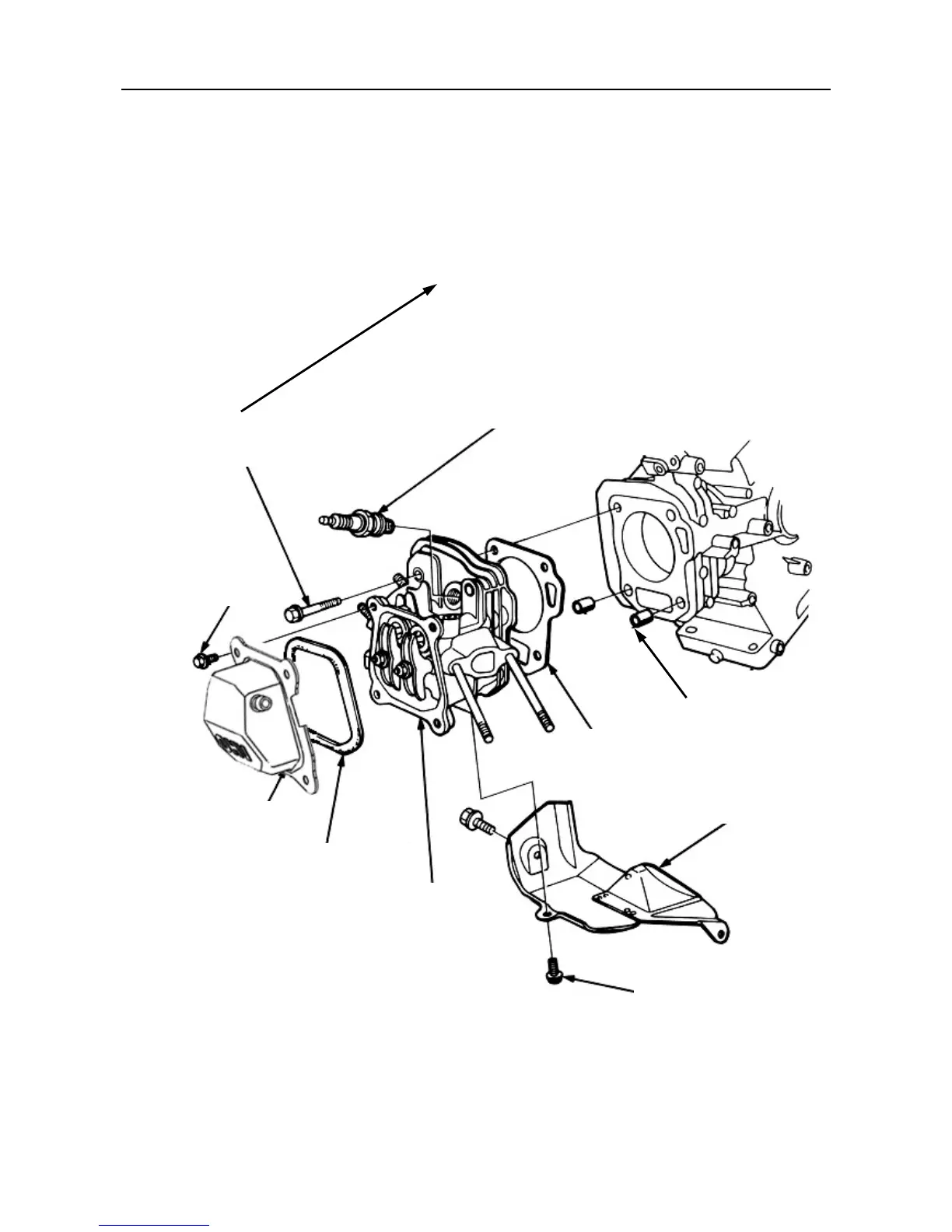

Cylinder Head Exploded View and Service Information
Spark Plug
Cylinder Head Bolts
25 ft-lbs (34 Nm)
7 ft-lbs (10 Nm)
Valve Cover
Gasket
Cylinder Head
7 ft-lbs (10 Nm)
Shroud
Gasket
Cylinder Head Bolt Torque Sequence:
1. Initially Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 10 ft-lbs (14 Nm).
2. Evenly Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 25 ft-lbs (34 Nm).
Dowl
NOTE: The only internal parts available for this engine are gaskets and seals.
