Toro MH-400 - Electrical Schematic for EH Model

Maintenance Instructions Page 47
Electrical Schematic For EH Model

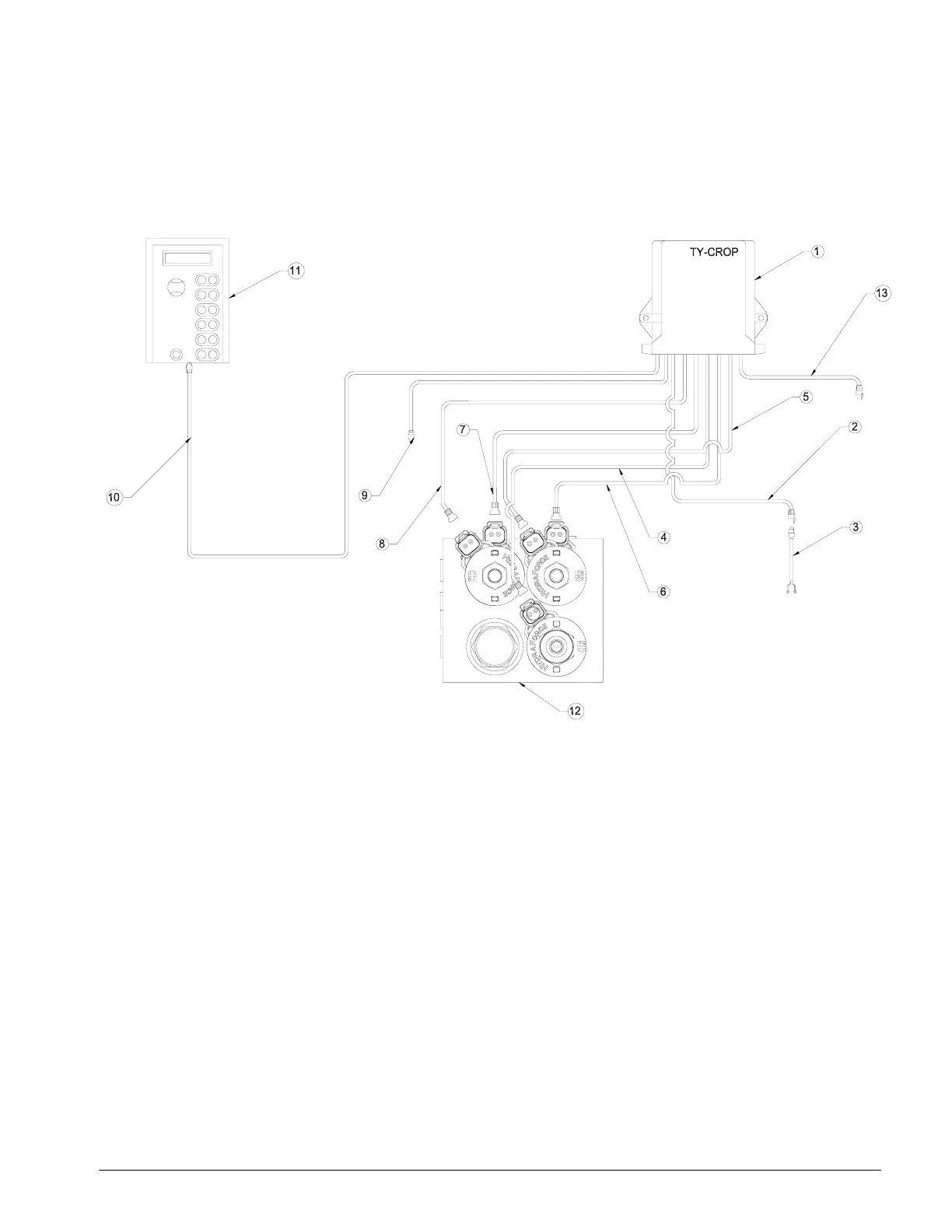

Figure 37: Electrical schematic For EH Model
1. Wiring Loom
2. Power Lead
3. Connection to Power Supply
4. Option Forward Lead
5. Bin Lower Lead
6. Bin Raise Lead
7. Floor Reverse Lead
8. Floor Forward Lead
9. Control Pendant Lead To Swing Arm Lead
10. Control Pendant Lead To Tow Vehicle Lead
11. Control Pendant
12. Hydraulic Block
13. Not Used – Remote Switch
