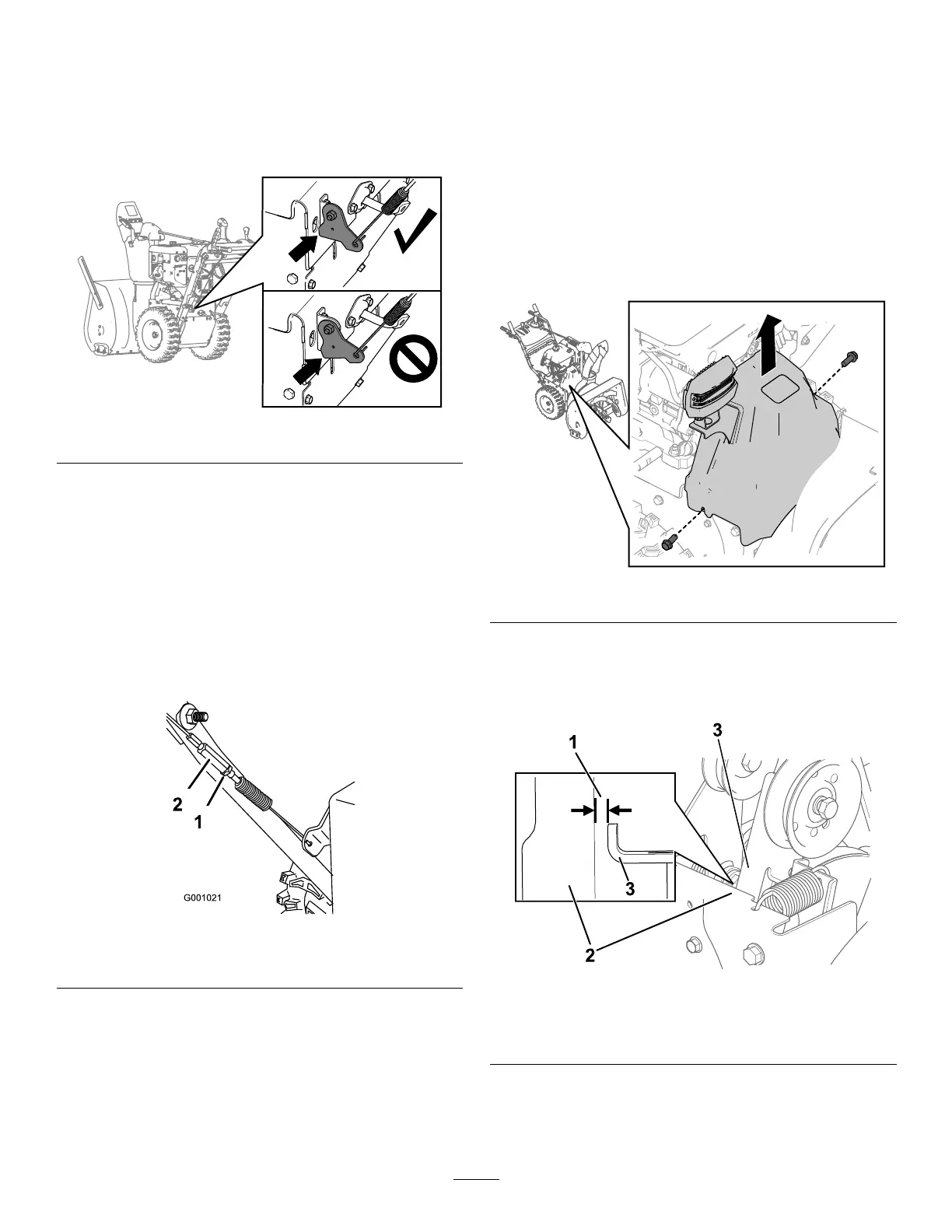

Toro Power Max 1428 OHXE - Checking and Adjusting the Auger;Impeller Cable

Ifthemachinedoesnotdriveintheforwardorreverse
speedsoritdriveswhenyoureleasethetractionlever,
adjustthetractioncable.
Withthetractionleveldisengaged,ensurethatthe
bottomofthetraction-cablebracketistouchingthe
frameofthemachine(Figure23).
g259431
Figure23
Ifthebottomofthetraction-cablebracketisnot
touchingtheframeofthemachine,theleft(traction)
cableisnotproperlyadjusted.
Toadjustthetractioncable,dothefollowing:
1.Loosenthejamnut.
2.Loosenortightentheturnbuckletountilthe
cableistaughtandthebottomofthebracket
touchestheframeofthemachine.
3.Tightenthejamnut(Figure24).
g001021
Figure24
1.Jamnut2.Turnbuckle
CheckingandAdjustingthe
Auger/ImpellerCable
ServiceInterval:Aftertherst2hours—Inspectthe
auger/impellercableandadjustitif
necessary.
Yearly—Inspecttheauger/impellercableand
adjustorreplaceitifnecessary.
1.Removethe2screwsthatareholdingthebelt
coverinplace(Figure25).
2.Removethebeltcover(Figure25).
g260066
Figure25
3.Withtheauger/impellerleverdisengaged,
ensurethatthegapbetweentheaugerclutch
armandtheframeofthemachineis1.5mm
(1/16inch)asshowninFigure26.
g260108
Figure26
1.1.5mm(1/16inch)
3.Augerclutcharm
2.Frame
4.Iftheauger/impellercableisnotproperly
adjusted,dothefollowingsteps:
5.Loosenthejamnut(Figure27).
18
