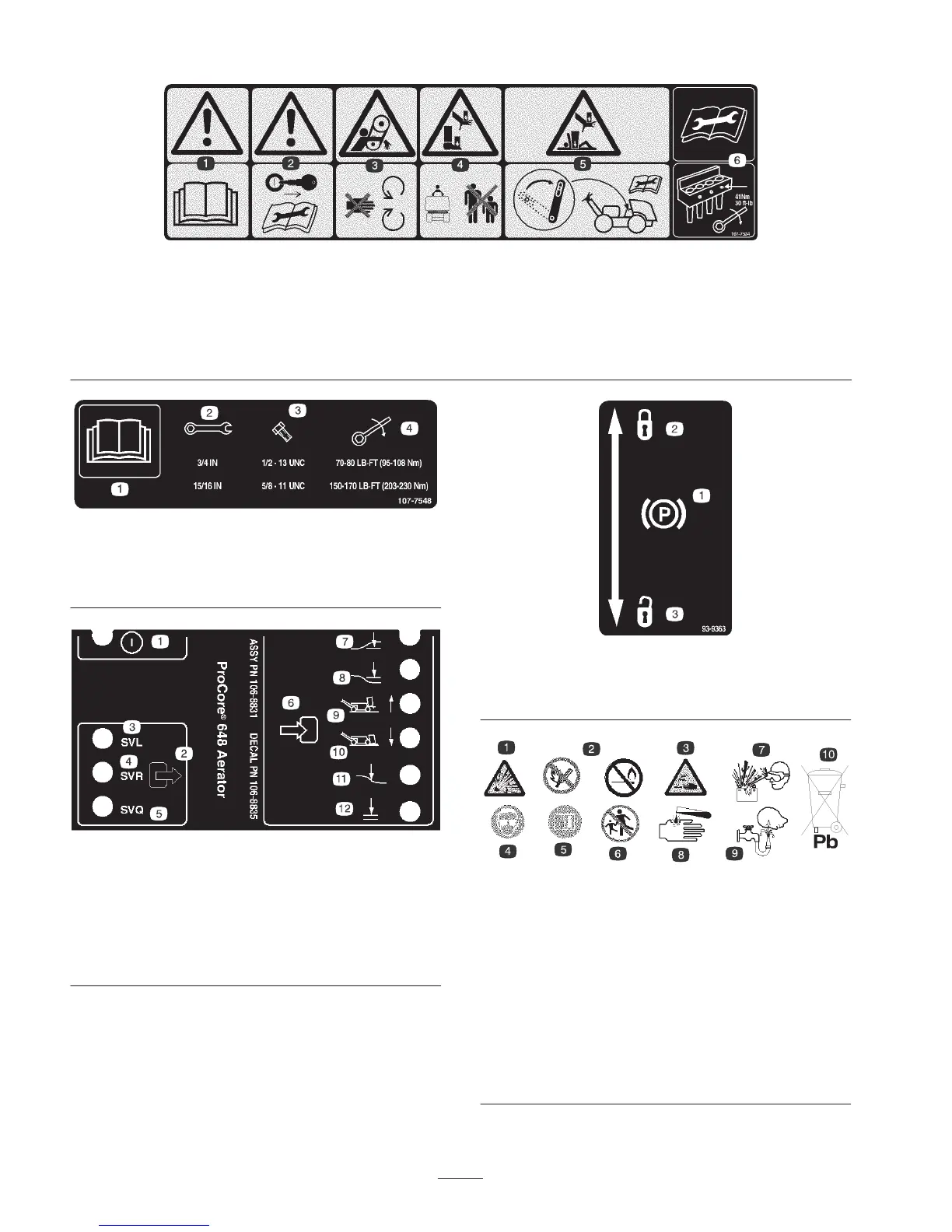

6
107-7534
1. Warning—read the
Operator’s Manual.
2. Warning—remove the
ignition key and read the
instructions before servicing
or performing maintenance.
3. Entanglement hazard,
belt—stay away from moving
parts.
4. Crushing hazard of hand or
foot—keep bystanders a safe
distance from the machine.
5. Crushing hazard of hand and
body—engage the service
latch when the coring head is
raised; read the instructions
before servicing or
performing maintenance.
6. Read the instructions before
servicing or performing
maintenance—torque the tine
bolts to 41 N⋅m (30 ft.-lb).
107-7548
1. Read the Operator’s
Manual.
2. Wrench size
3. Bolt size
4. Torque
106-8835
1. On/off
2. Output
3. Solenoid valve lower
4. Solenoid valve raise
5. Solenoid valve quick
6. Input
7. Head low
8. Head high
9. Transport (#1)
10. Aerate (#4)
11. Ground following
12. OK to lower
93-9363
1. Parking brake
2. Locked
3. Unlocked
Battery Symbols
Some or all of these symbols are on your battery.
1. Explosion hazard
2. No fire, open flames, or
smoking.
3. Caustic liquid/chemical
burn hazard
4. Wear eye protection
5. Read the Operator’s
Manual.
6. Keep bystanders a safe
distance from the battery.
7. Wear eye protection;
explosive gases can
cause blindness and other
injuries
8. Battery acid can cause
blindness or severe burns.
9. Flush eyes immediately
with water and get medical
help fast.
10. Contains lead; do not
discard.
