ServicingtheFoamAir-CleanerElement
1.Washthefoamelementusingamilddetergent
andwater.
2.Squeezeitdrywithacleancloth.
3.Soakitwithnewengineoil.
4.Gentlysqueezeoutexcessoilfromtheelement
inanabsorbentcloth.
ServicingthePaperAir-CleanerElement
1.Cleanthepaperelementbytappingitgentlyto
removedust.Ifitisverydirty,replacethepaper
element(Figure14).
2.Inspecttheelementfortears,anoilylm,or
damagetotherubberseal.
3.Replacethepaperelementifitisdamaged.
Important:Donotcleanthepaperlter.
InstallingtheFoamandPaperElements
1.Mountthepaperelementintheair-cleaner
housingandsecureitwiththewingnut.
2.Positionthefoamelementoverthepaper
element.
3.Installtheair-cleanercoverandsecureitwith
thewingnut.
ServicingtheEngineOil
ServiceInterval:Beforeeachuseordaily—Check
theengine-oillevel.
Aftertherst20hours—Changetheengineoil.
Every100hours—Changetheengineoil.
Yearlyorbeforestorage—Changetheengine
oil.
Engine-OilSpecications
Note:Changetheoilmorefrequentlywhenthe
operatingconditionsareextremelydustyorsandy.
OilType:DetergentoilwithanAPIserviceofSJor
higher.
CrankcaseCapacity:1.1L(37oz)

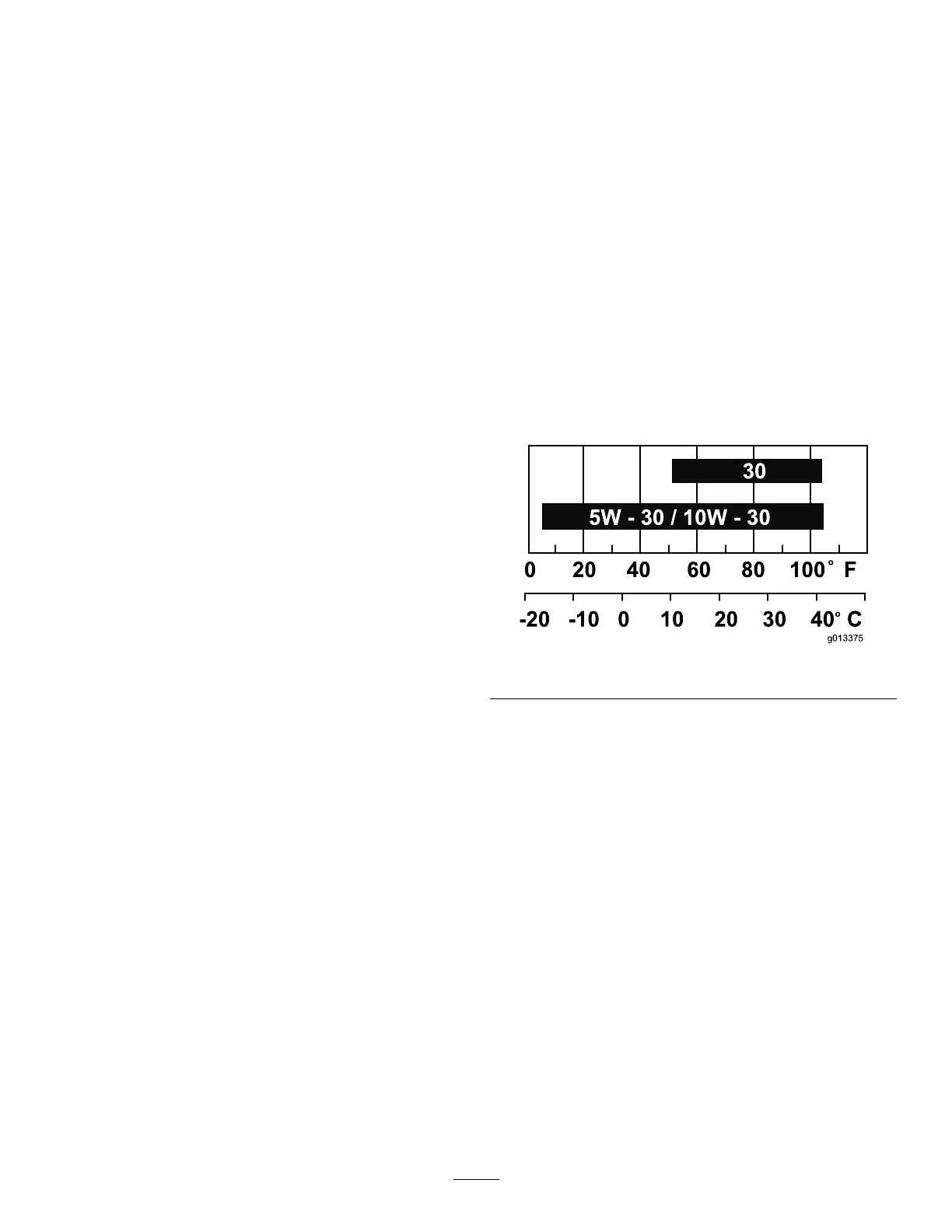

Viscosity:Refertothegurebelow.
g013375
Figure15
CheckingtheEngine-OilLevel
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Checktheengine-oillevelasshowninFigure
16.
