3.Locatethetracking-adjustmentboltnearthe
motion-controlleverontheparticularsidethat
needsadjusting(Figure46).
Note:Raisetheseatforeasieraccesstothe
adjustmentbolt.
4.Rotatethebolttodecreasethespeedforthat
particularwheel.
Note:Rotatetheboltasmallamounttomake
minoradjustments.
g294926

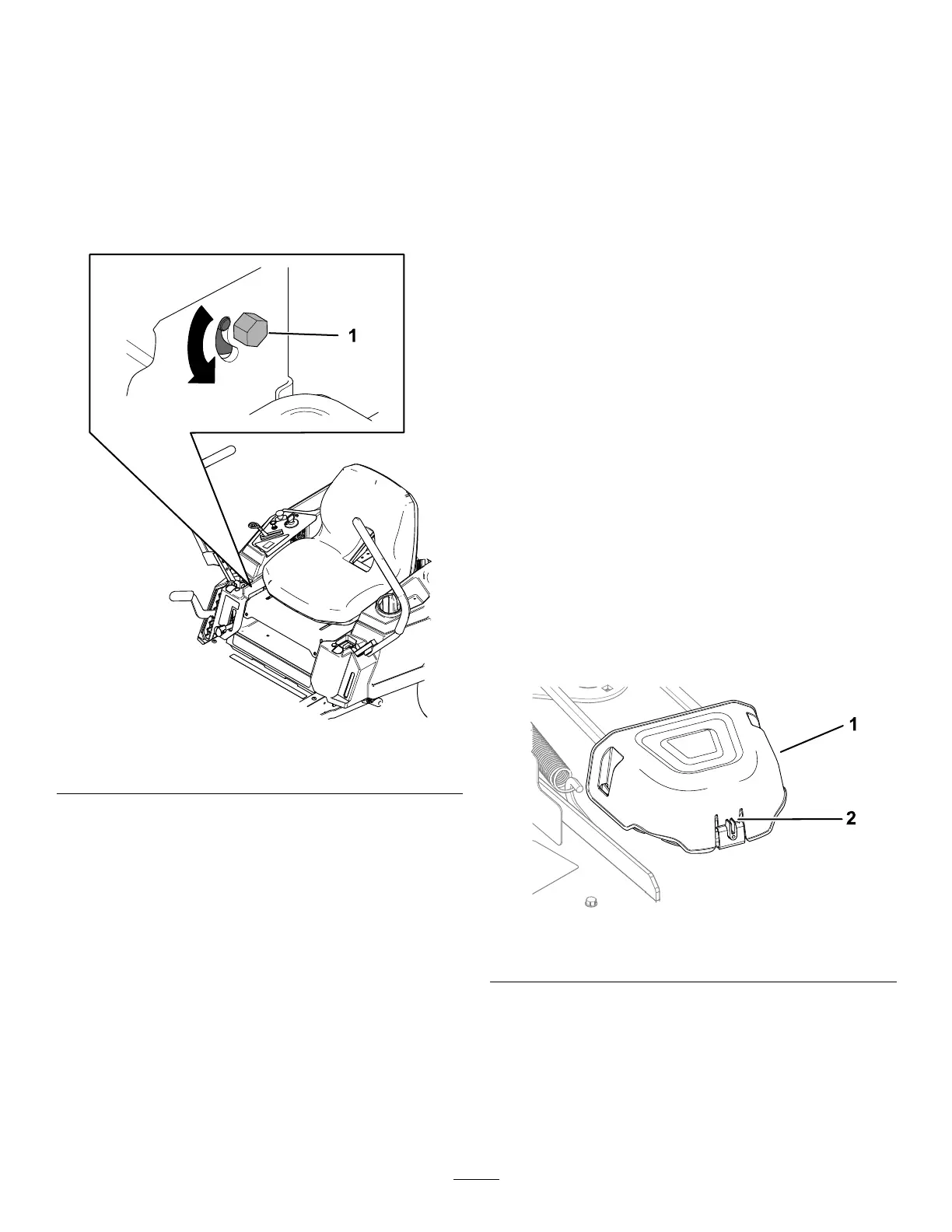

Figure46
1.Bolt
5.Startthemachineanddriveforwardacrossa
at,levelsurfacewiththemotion-controllevers
fullyforwardtocheckifthemachinetracks
straight.Repeattheprocedureasneeded.
BeltMaintenance
InspectingtheBelts
ServiceInterval:Every25hours—Checkthebelts
forwearorcracks.
Replacethebeltifitisworn.Thesignsofawornbelt
includesquealingwhilethebeltisrotating;theblades
slippingwhilecuttinggrass;andfrayededges,burn
marks,andcracksonthebelt.
ReplacingtheMowerBelt
Thesignsofawornbeltincludesquealingwhilethe
beltisrotating,bladesslippingwhilecuttinggrass,
andfrayededges,burnmarks,andcracksonthebelt.
Replacethemowerbeltifanyoftheseconditionsare
evident.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Settheheightofcutatthelowestcuttingposition
(38mm(1-1/2inches).
4.Pushinthetabonthecovertoremovethe
pulleycovers(Figure47).
g298345
Figure47
1.Cover
2.Tab
5.Usingaspring-removaltool(ToroPartNo.
92-5771),removetheidlerspringfromthedeck
hooktoremovetensionontheidlerpulley,and
rollthebeltoffthepulleys(Figure48).
