SteeringControlBoxInstallation(continued)
g301716
Figure150
25.Fliptheseatbackintotheoperatorposition.
MotionControlActuatorReplacement
MotionControlActuatorRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Torelievetensionondecklifthandle,placewoodblocks(2x4inches)under
eachsideofthedeck.Lowerthedeckuntiltensionisrelievedfromthelift
handle.

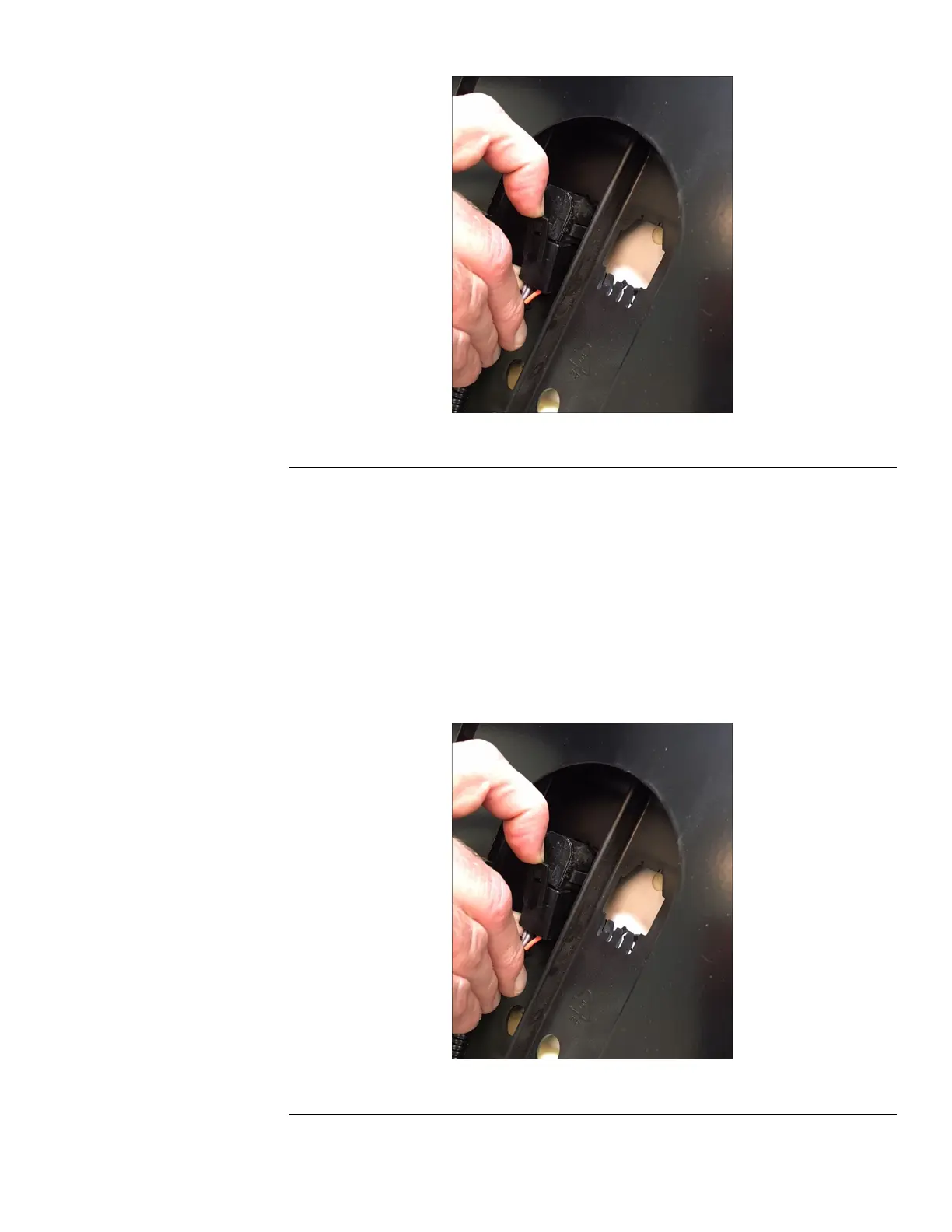

3.Fliptheseatforwardandremovetheseatswitchconnection.
g301716
Figure151
4.Fliptheseatbacktotheoperatorposition.
TIMECUTTER®ServiceManual
Page5–65
Chassis:ServiceandRepairs
3433-938RevA
