BrakeModuleInstallation
1.Installandhandtightenthe4Philipsheadscrewssecuringthebrackettothe
module.Placethebrakemoduleintopositiononthemachine.
2.Installthe2(3/8inch)screwssecuringthebrakemodulebrackettothe
chassis.T orquescrewsto9–11N•m(80–100in-lb).

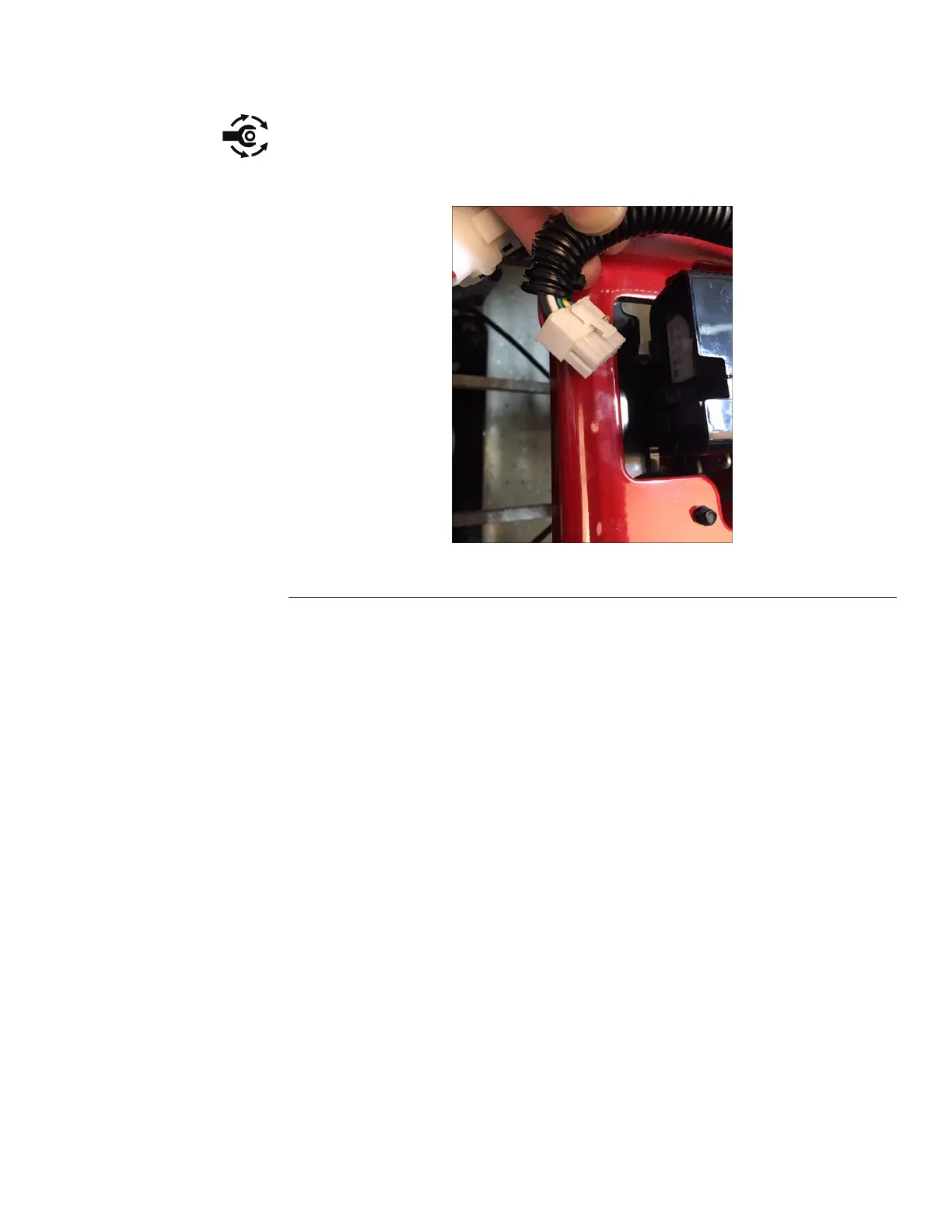

3.Installtheconnectortothemodule.
g302093
Figure282
4.Installthe2cotterpinsandatwasherssecuringthebrakerodstothebrake
module.
5.Fliptheseatintooperatingposition.
6.Connectthebatterybyinstallingthepositivebatterycablerst,thenthe
negativecabletothebattery.
PTOSwitchReplacement
PTOSwitchRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.
3.RemovethePhilipsheadscrewfromthecontrolpanel.
4.DisconnectthePTOswitch.
TIMECUTTER®ServiceManual
Page8–13
ElectricalSystem:ServiceandRepairs
3433-938RevA
