HydroTransaxleDriveBeltRemoval(continued)

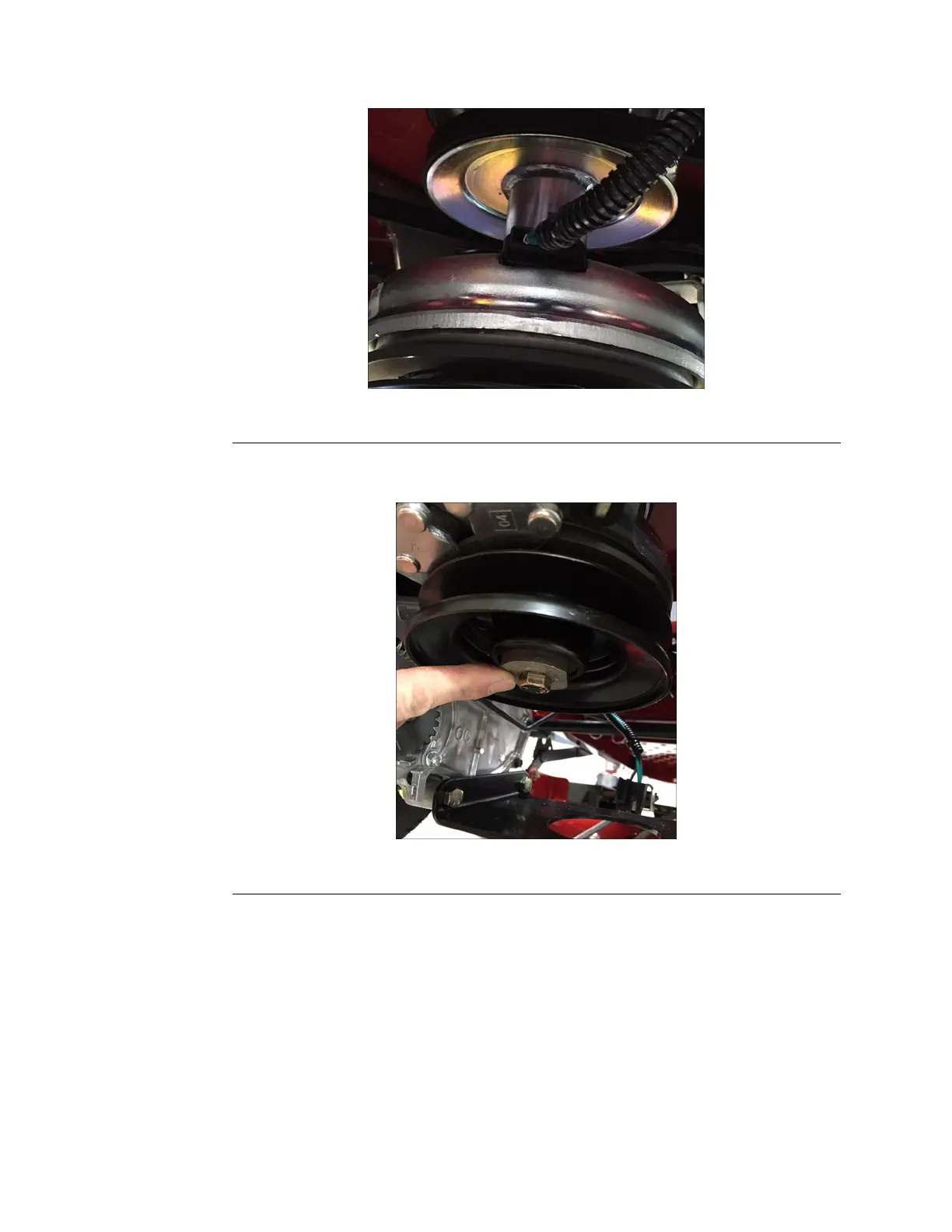

6.Disconnectthewiringtotheclutch.
g300624
Figure224
7.Removethe5/8hexboltsecuringtheclutchtothecrankshaftoftheengine.
Removetheclutch.
g300625
Figure225
8.Removethehydrobelttensionerspringfromthespringanchorpointon
thechassis.
HydrostaticDriveSystem:ServiceandRepairs
Page6–6
TIMECUTTER®ServiceManual
3433-938RevA
