G014476

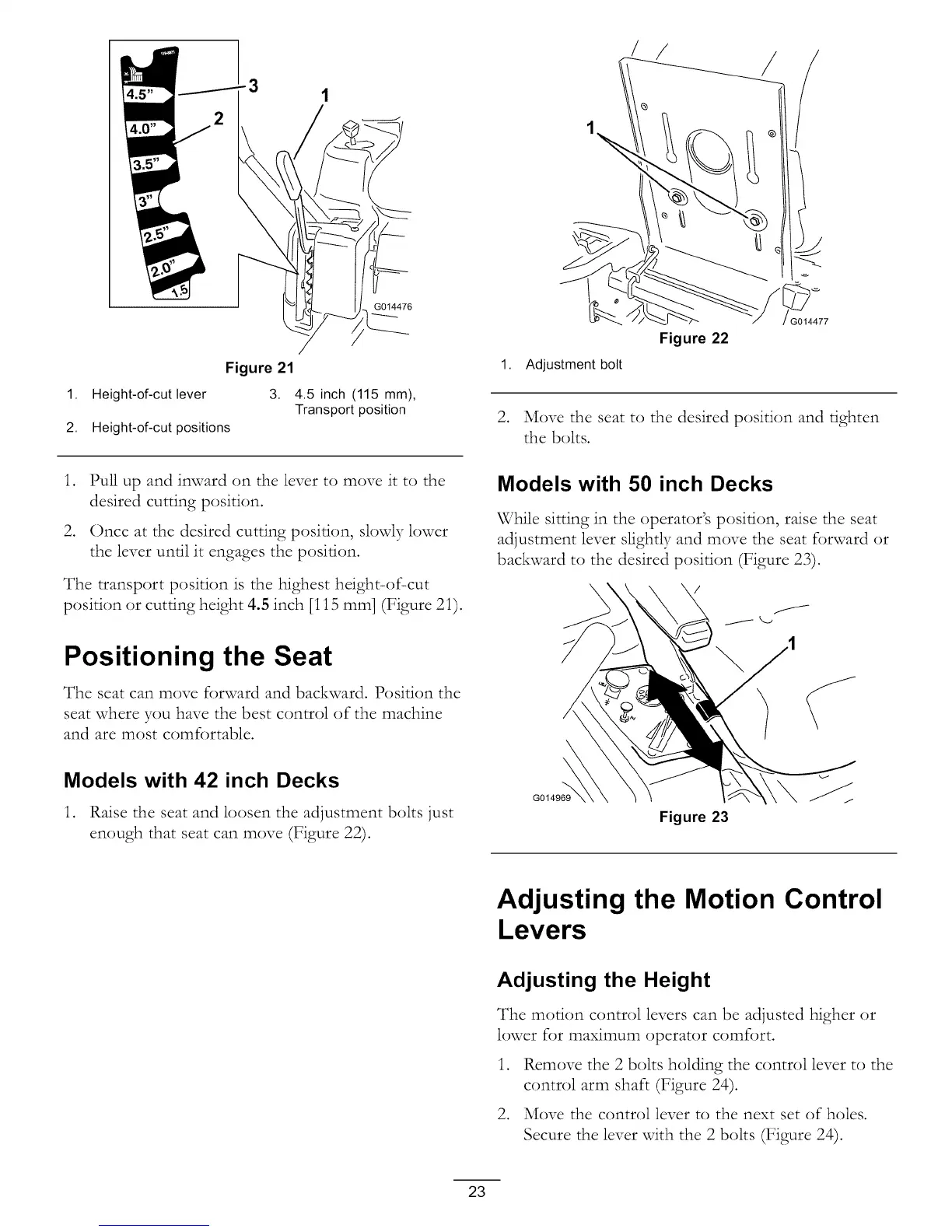

Figure 21
1. Height-of-cut lever 3. 4.5 inch (115 mm),
Transport position
2. Height-of-cut positions
/
o!
1. Adjustment bolt
Figure 22
G014477
2. Move the seat to the desired position and tighten
the bolts.
.
.
Pull up and inward on the lever to move it to the
desired cutting position.
Once at the desired cutting position, slowly lower
the lever until it engages the position.
The transport position is the highest height-of-cut
position or cutting height 4.5 inch [i 15 ram] (Figure 2i).
Positioning the Seat
The seat can move forward and backward. Position the
seat where you have the best control of the machine
and are most comfortable.
Models with 42 inch Decks
1. Raise the seat and loosen the adjustment bolts just
enough that seat can move (Figure 22).
Models with 50 inch Decks
While sitting in the operator's position, raise the seat
adjustment lever slightly and move the seat forward or
backward to the desired position (Figure 23).
\
G014969
Figure 23
Adjusting the Motion Control
Levers
Adjusting the Height
The motion control levers can be adjusted higher or
lower for maximum operator comfort.
1. Remove the 2 bolts holding the control lever to the
control arm shaft (Figure 24).
2. Move the control lever to the next set of holes.
Secure the lever with the 2 bolts (Figure 24).
23
