TRANSAXLE
TimeCutter™ Z Service Manual 5 - 7
5

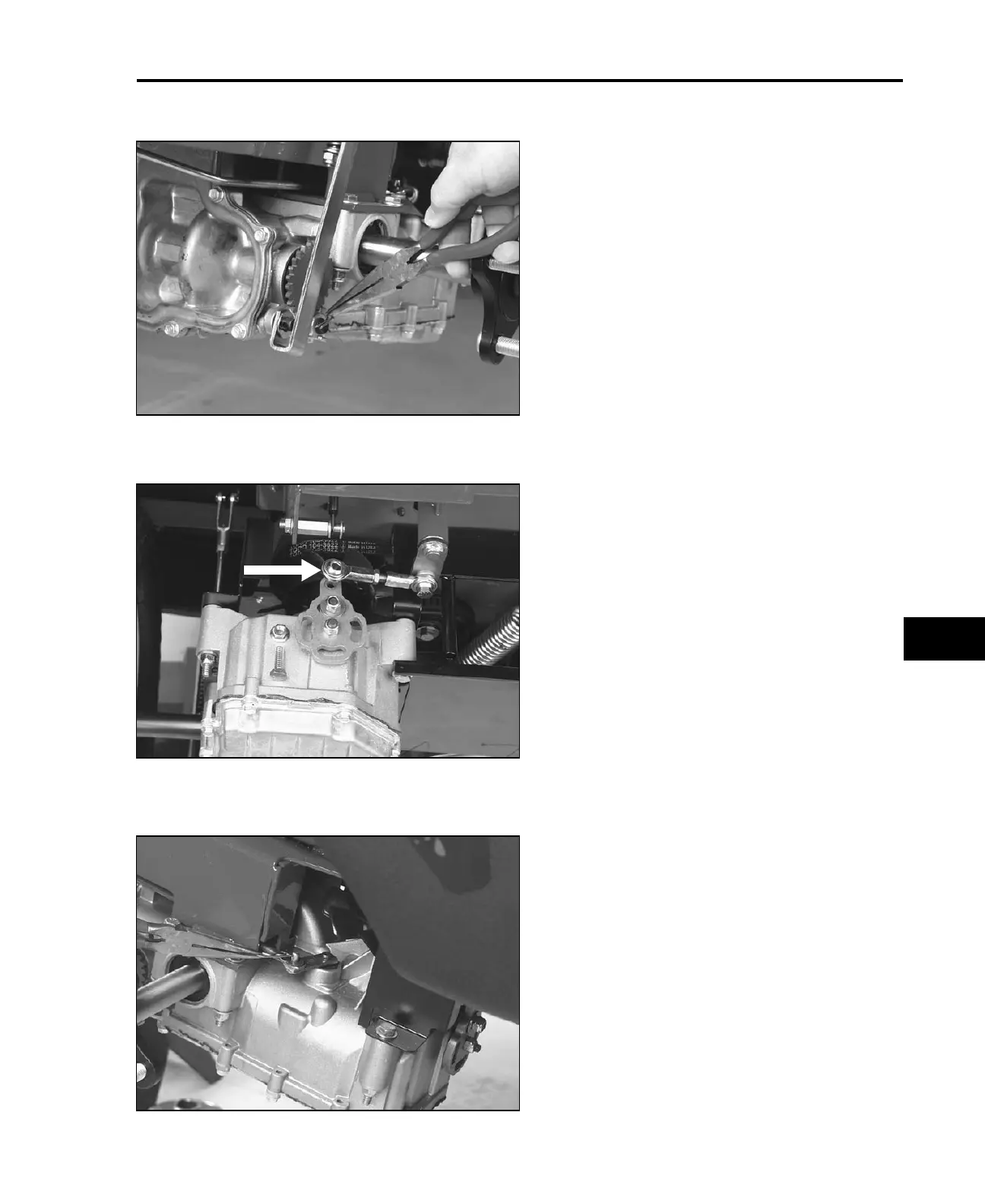

Remove the parking brake link from the brake
arm.
Disconnect the motion control link from the
transaxle.
Remove the hairpin cotter and washer from the
bypass valve lever. Leave the rod in place.
0702-0509
0702-0510
0702-0511
