TRANSAXLE
TimeCutter™ Z Service Manual 5 - 9
5

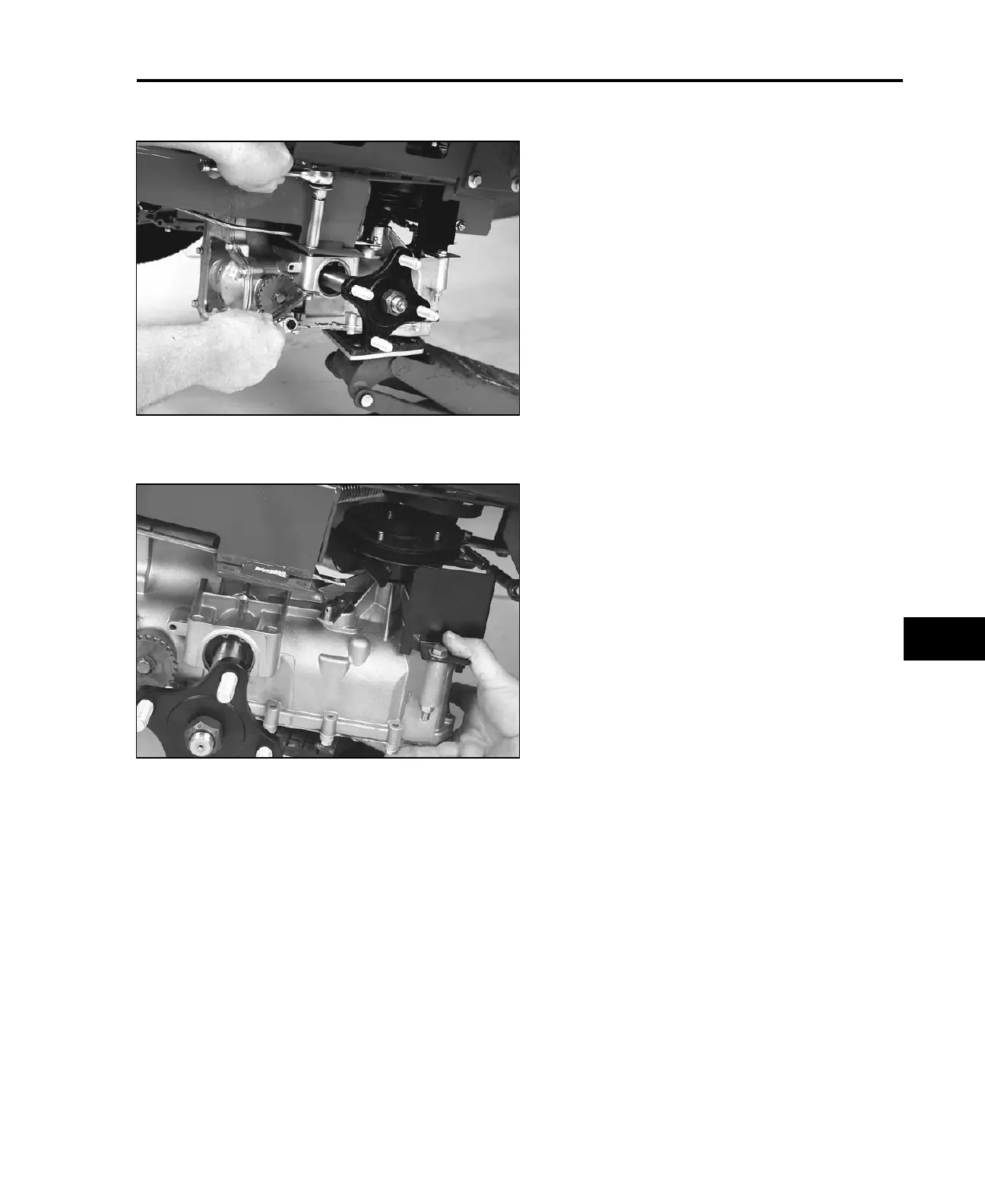

Support the transaxle with a jack while removing
the last bolts.
Guide the transaxle as it is lowered. Make sure
the cooling fan and vent hose clear the chassis.
0702-0514
0702-0515
