CHASSIS
TimeCutter™ Z Service Manual 6 - 5
6

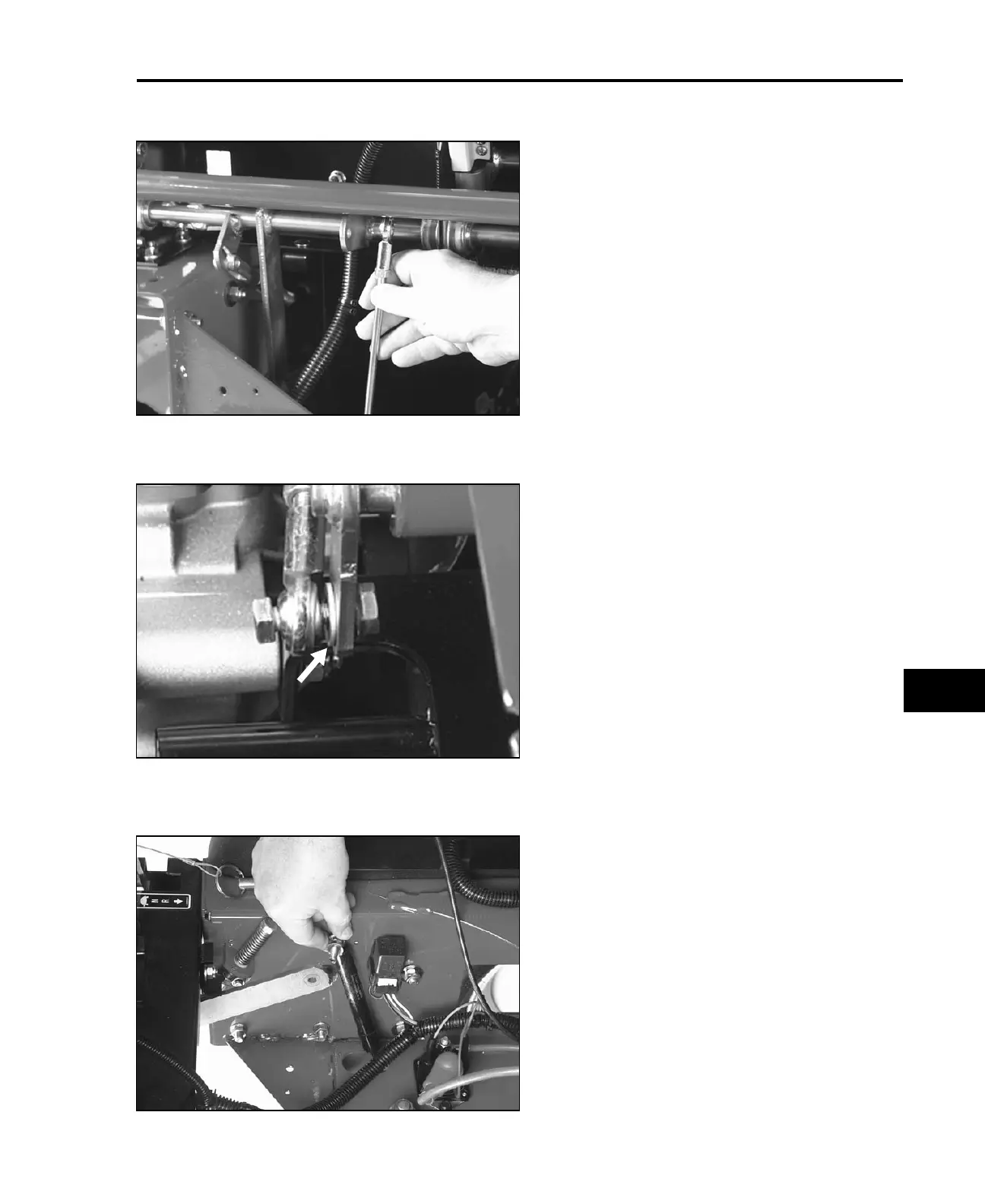

Remove the link between the front and rear
bellcranks.
NOTE: All the ball joint assemblies are installed
with a flat washer between the ball joint and
lever.
Disconnect the steering damper.
0702-0606
0702-0607
0702-0608
