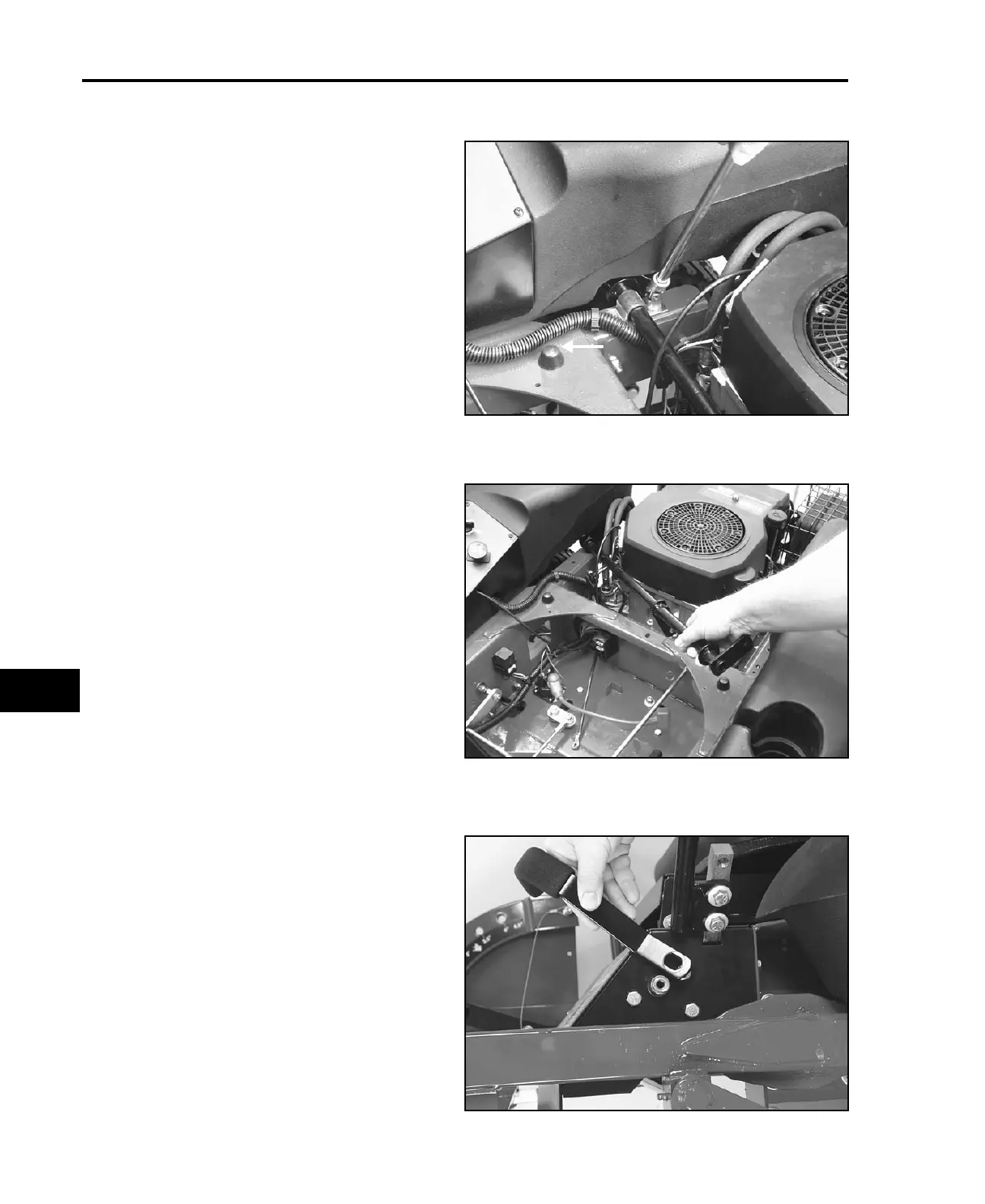

6 - 12 TimeCutter™ Z Service Manual
CHASSIS
6
Remove the two clamps securing the brake
shaft.
NOTE: During reassembly, the wiring harness is
routed below the brake shaft, throttle cable is
routed above.
Remove the brake shaft from the chassis and
actuator rod.
To remove the front brake shaft, first remove the
brake handle.
0702-0617
0702-0618
0702-0619
