CHASSIS
TimeCutter™ Z Service Manual 6 - 19
6

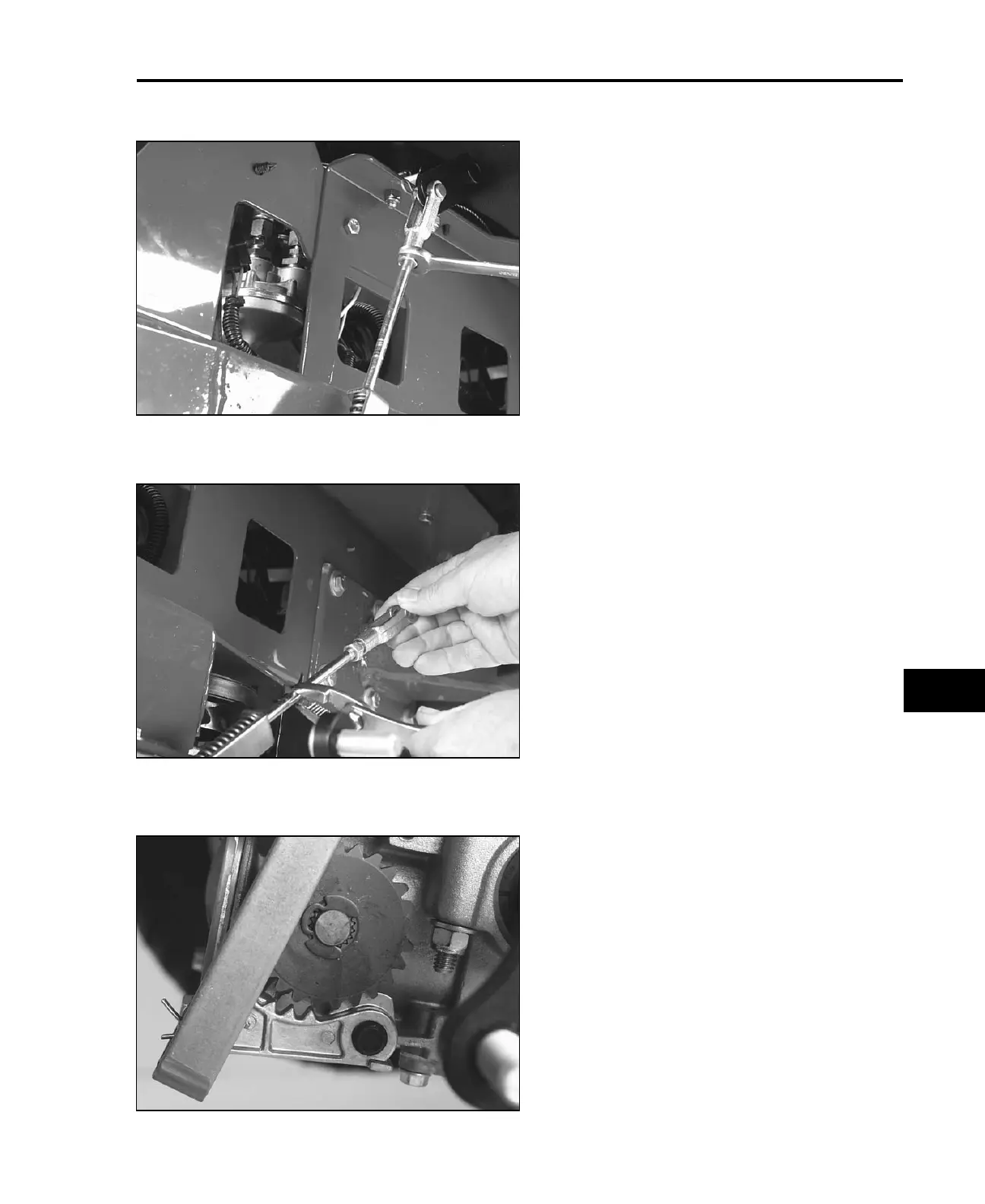

To adjust the parking brake:
1. Loosen the jam nut at the clevis yoke.
2. Remove the clevis pin and turn the yoke to
adjust the length of the rod until the brake
arm engages and disengages the cog
completely.
3. Reconnect the brake rod clevis and tighten
the jam nut. Recheck to make sure the
brake arm clears the teeth of the brake cog
when the park brake is disengaged.
0702-0629
0702-0630
0702-0518
