7 - 4 TimeCutter™ Z Service Manual
MOWER DECKS
7

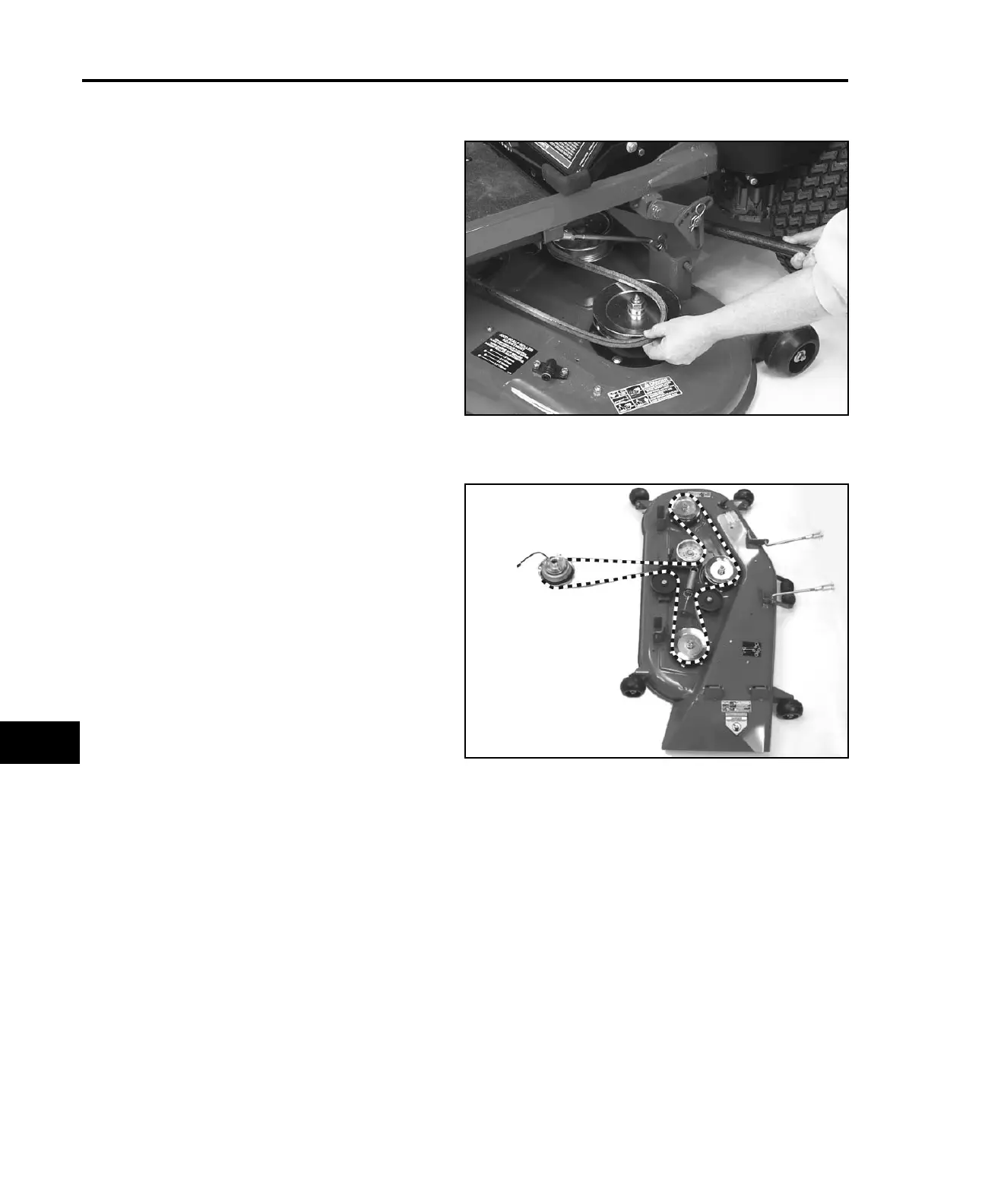

Place a length of 3/4” pipe over the idler pulley
rod and remove the belt tension. Remove the
belt from the pulley.
Reverse the steps above to reassemble. Route
the drive belt as shown.
0702-0417
0702-0716
