Toro TimeCutter Z5000 - Product Overview

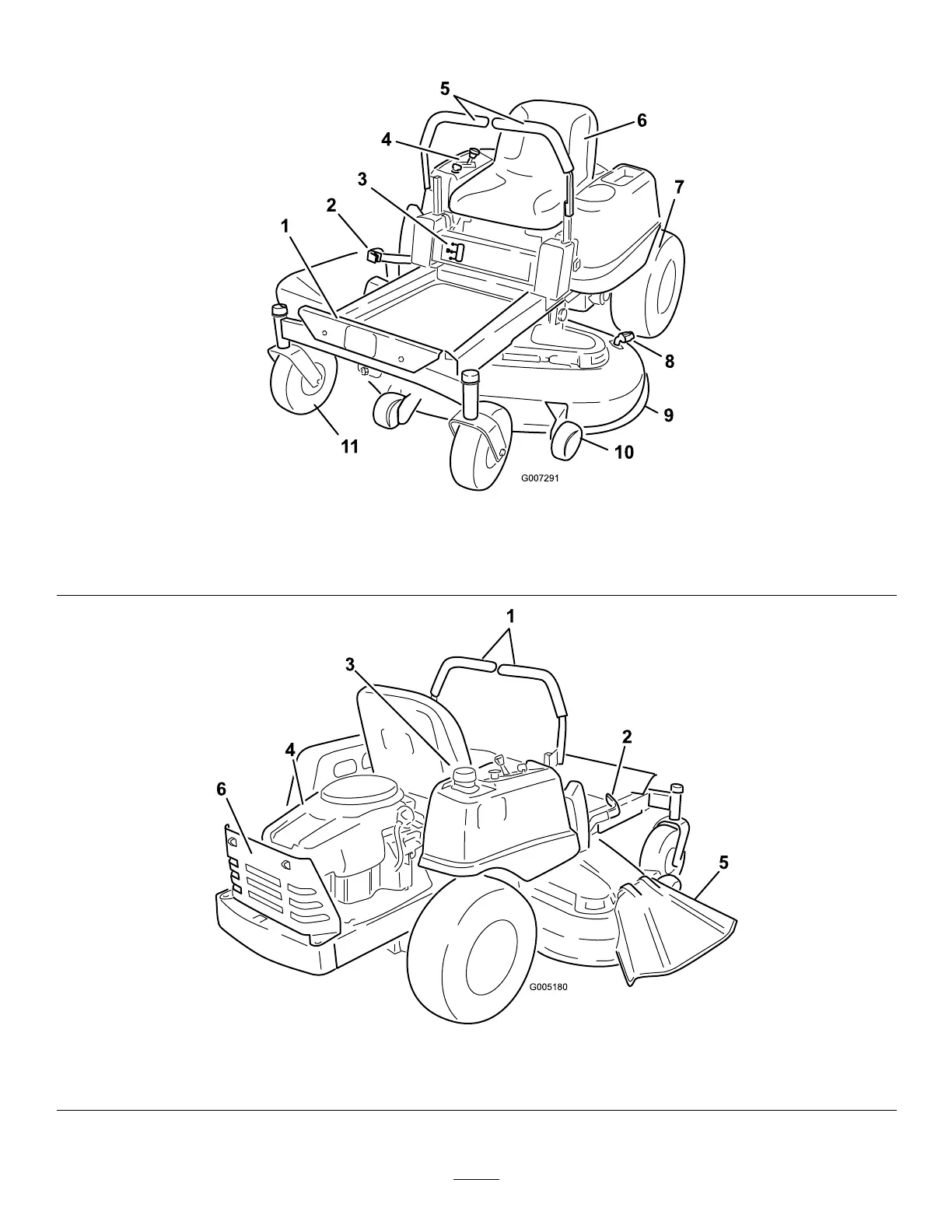

ProductOverview
Figure3
1.Footrest
4.Controlpanel
7.Reardrivewheel10.Anti-scalproller
2.Heightofcutlever
5.Motioncontrollevers
8.Washouttting
11.Frontcasterwheel
3.Fuelgauge
6.Operatorseat
9.Mowerdeck
G005180
1
2
3
4
5
6
Figure4
1.Motioncontrollevers
3.Gastankcap5.Deector
2.Heightofcutlever
4.Engine6.Engineguard
