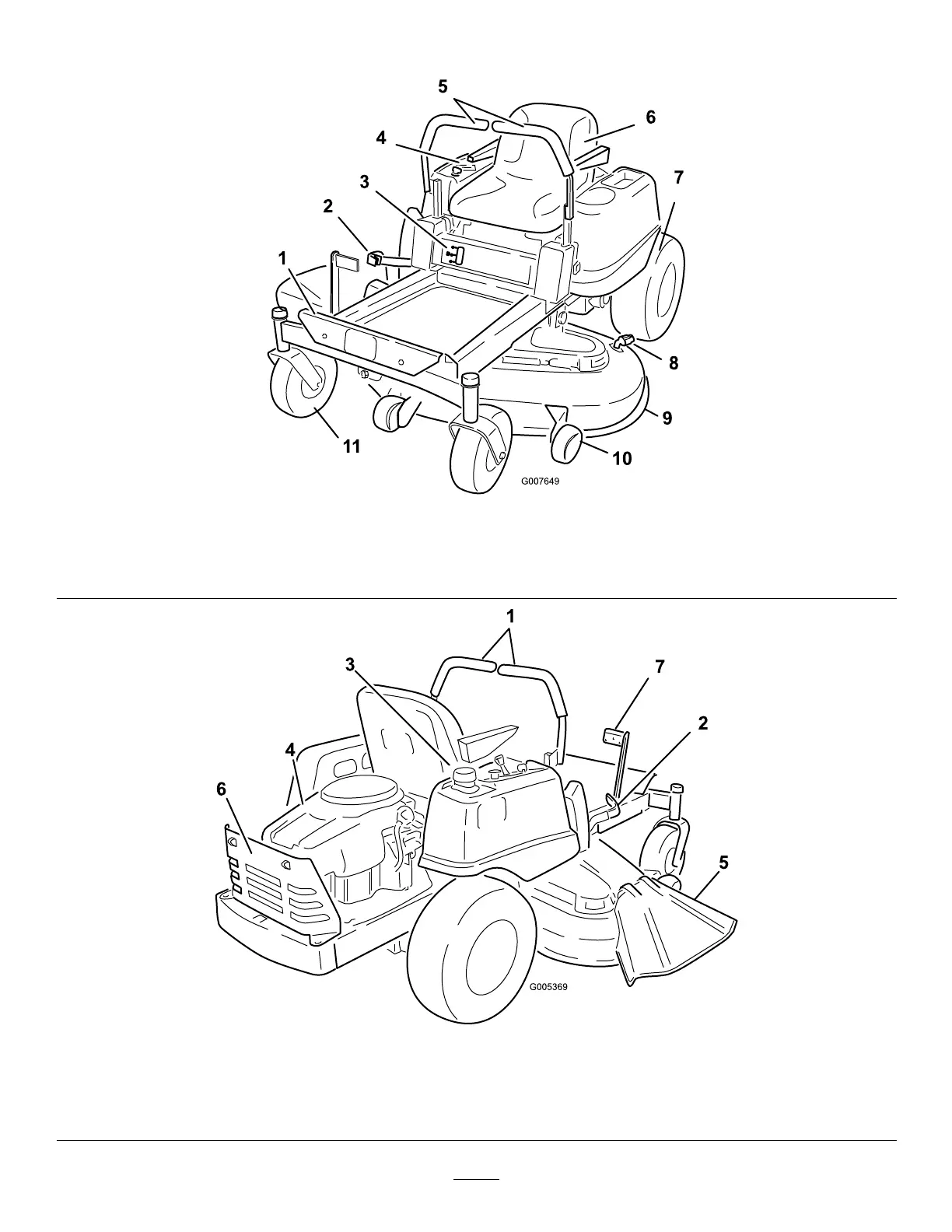

ProductOverview
Figure3
1.Footrest
4.Controlpanel
7.Reardrivewheel10.Anti-scalproller
2.Heightofcutlever
5.Motioncontrollevers
8.Washouttting
11.Frontcasterwheel
3.Fuelgauge
6.Operatorseat
9.Mowerdeck
Figure4
1.Motioncontrollevers
3.Gastankcap5.Deector7.Footassistpedal(Model
74399only)
2.Heightofcutlever
4.Engine
6.Engineguard(Model74399
only)
