Toro TimeCutter Z5020 User Manual

G005652

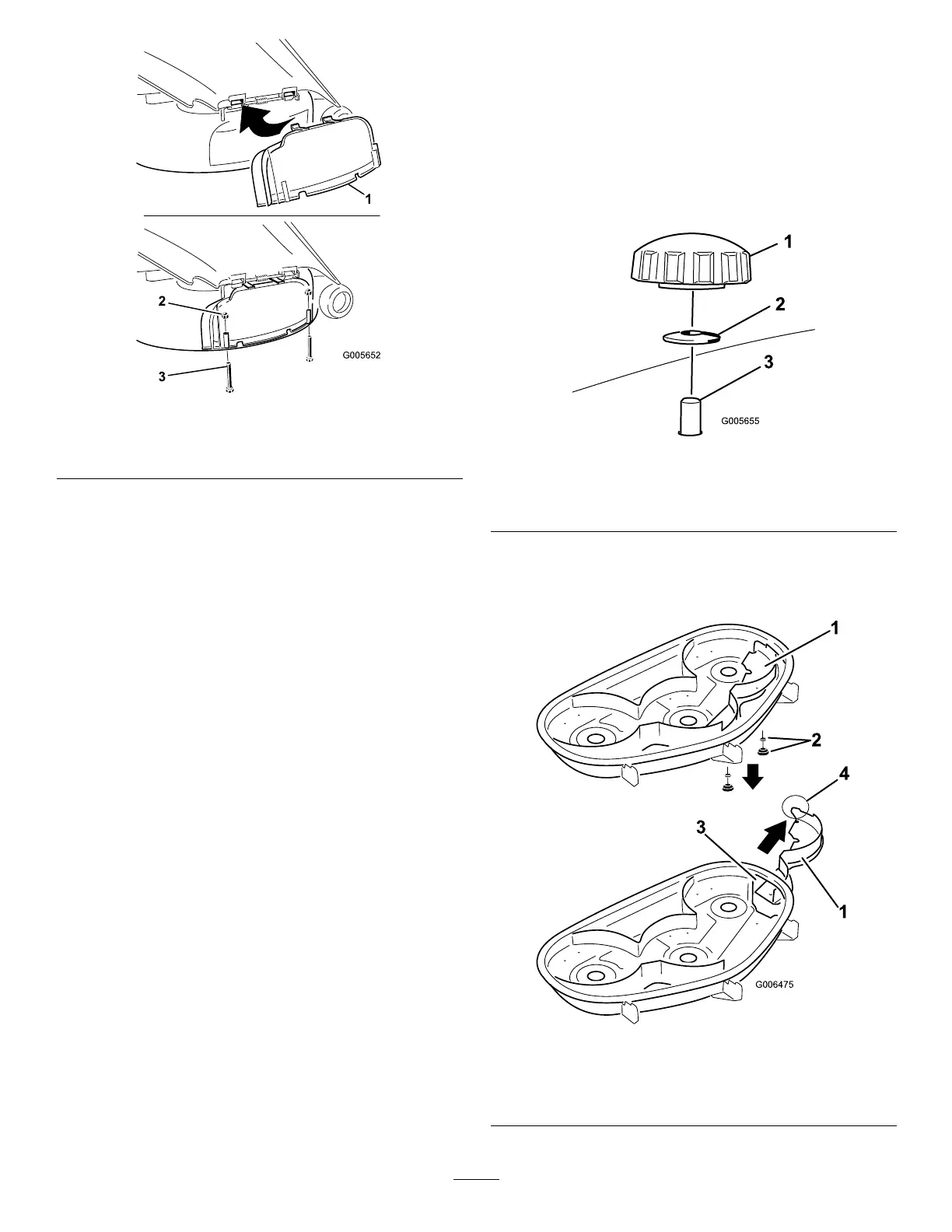

Figure24
1.Dischargecover
3.Bolt(1/4x2-1/2inches)
2.Capnut(1/4inch)
4.Securethedischargecovertothelowerlipofthe
mowerwithtwobolts(1/4x2-1/2inches)andtwo
capnuts(1/4inch)asshowninFigure24.
Note:Donotovertightenthenuts;thiscould
distortthecoverandcausebladecontact.
ConvertingtoSideDischarge
(ForModelswith50Inch
Decks)
Themowerdeckandmowerbladesshippedwith
thismachineweredesignedforoptimummulching
performance.Sidedischargeperformancecanbe
improvedbyreplacingthemulchingbladeswith
standardcuttingbladesobtainedfromyourlocal
authorizedTorodealer.Tomaintainoptimummulching
performance,alwaysinstallthemulchingbladesthatare
shippedwiththisunitwhenchangingbacktomulching
operation.
RemovingtheRightBafeforSide
Discharge
Note:Ifthebaggerattachmentisaddedthemachine,
standardbladesmustbeinstalledforproperbagging
function.ContactyourlocalauthorizedTorodealer
fortheproperpartnumber.
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversoutwardtopark
position,stoptheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removetherightmowerblade.RefertotheMower
Maintenancesection.
4.Removethe2knobsandcurvedwashersthatsecure
therightbafetothemowerasshowninFigure25.
Figure25
1.Knob
3.Bafestudcomingthrough
themower
2.Curvedwasher
5.Removetherightbafeandlowerthegrass
deectoroverthedischargeopeningasshownin
Figure26andFigure25.
G006475
1
2
3
4
1
Figure26
1.Rightbafe
3.Dischargeopening
2.Curvedwasherandknob4.Tab(mustremainoutside
ofthemower)
24
