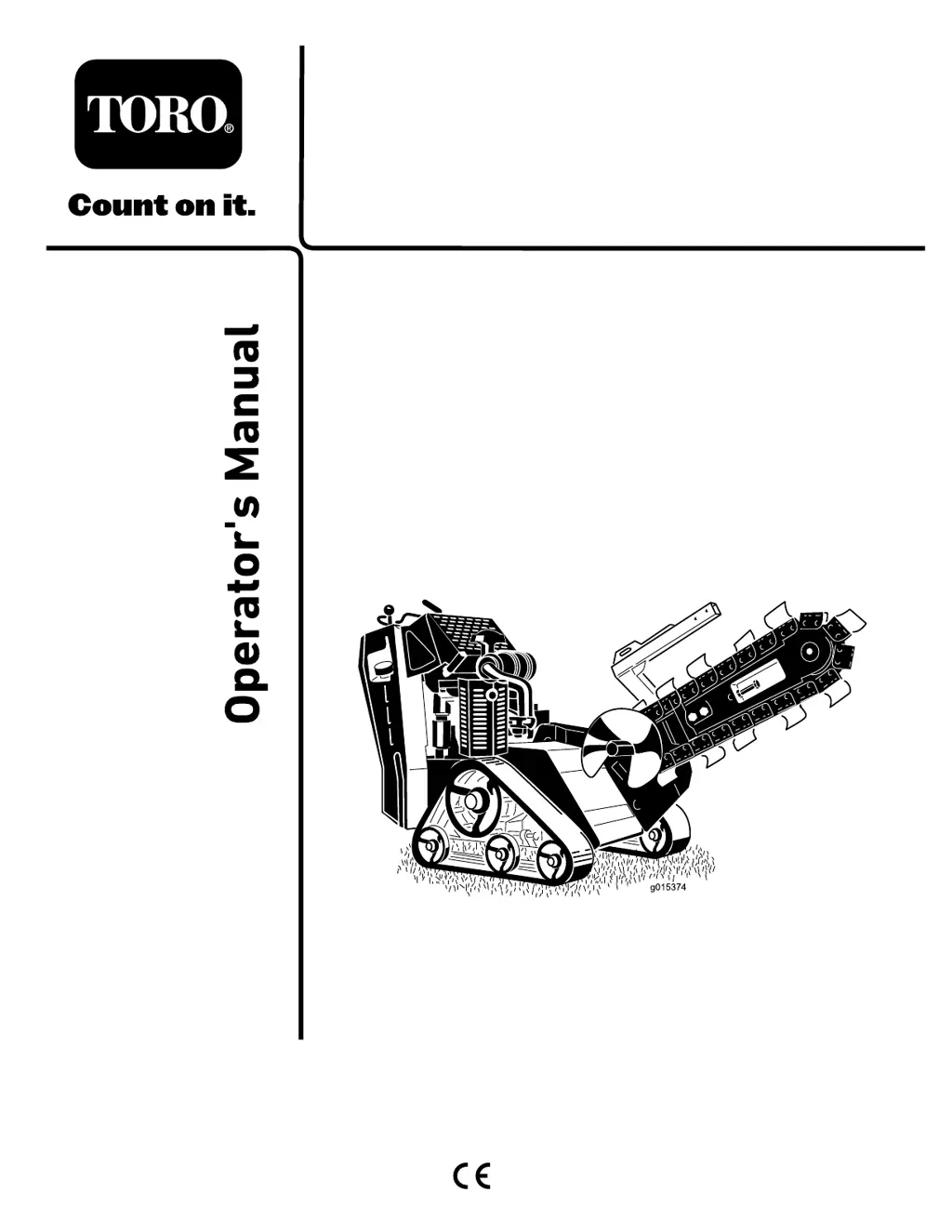

Toro TRX-26 - User Manual

Other manuals for Toro TRX-26

Original Instructions52 pages

Questions and Answers

N
Nicole NashAug 22, 2025
Why won't my Toro Construction Equipment engine start?
- D
  danielle47Aug 22, 2025
  If your Toro Construction Equipment's engine won't start, struggles to start, or stalls, several factors could be at play. First, ensure the fuel tank isn't empty and that the fuel shut-off valve is open. Make sure the controls are in neutral and the choke is engaged. Check the air cleaner, and clean or replace the elements if they're dirty. Also, ensure the spark plug wire is securely connected. If the spark plug is damaged, replace it. If these steps don't resolve the issue, there might be dirt, water, or stale fuel in the fuel system.
N
nturnerAug 25, 2025
What to do if the starter doesn't crank on my Toro Construction Equipment?
- A
  amy33Aug 25, 2025
  If the starter on your electric-start Toro Construction Equipment isn't cranking, the battery might be discharged; try charging or replacing it. Also, check the electrical connections for corrosion or looseness and ensure they're making good contact. If these steps don't solve the problem, the relay or switch might be damaged.
M
mwilliamsAug 26, 2025
Why is my Toro Construction Equipment engine losing power?
- R
  Richard MathisAug 26, 2025
  If your Toro Construction Equipment engine is losing power, there are several potential causes. First, the engine load might be excessive, so reduce the ground speed. Check the air cleaner and clean or replace it if it's dirty. Also, ensure the oil level in the crankcase is adequate and add oil if needed. Clear any obstructions from the cooling fins and air passages under the engine blower housing. Finally, inspect the spark plug and replace it if it's damaged. If these steps don't resolve the issue, there might be dirt, water, or stale fuel in the fuel system.
K
keithshepardAug 28, 2025
What causes a Toro Construction Equipment engine to overheat?
- A
  Alexis ClarkAug 28, 2025
  If your Toro Construction Equipment engine is overheating, consider a few possible causes. The engine load might be excessive, so try reducing the ground speed. Check the oil level in the crankcase and add oil if it's low. Also, ensure that the cooling fins and air passages under the engine blower housing are free from obstructions; remove any debris you find.
S
Stephanie SosaAug 30, 2025
What to do if my Toro Construction Equipment won't drive?
- R
  Ricky SmithAug 30, 2025
  If your Toro Construction Equipment isn't driving, first check if the parking brake is engaged and disengage it. Then, verify the hydraulic fluid level and add fluid if it's low. Also, ensure that the tow valves are closed. If these steps don't resolve the issue, the hydraulic system might be damaged.
K
Kelly MedinaSep 1, 2025
Why is my Toro Construction Equipment trencher not digging fast enough?
- E
  Edward DrakeSep 1, 2025
  If your Toro Construction Equipment trencher isn't digging fast enough, the digging teeth might be worn and need replacement. Also, the chain you're using might not be appropriate for the ground type, so evaluate the ground and change chains if necessary. The hydraulic system might be overheated, so shut down the system and allow it to cool. If these steps don't resolve the issue, the hydraulic system might be obstructed, contaminated, or damaged.
M
Maria TurnerSep 2, 2025
What to do if the chain on my Toro Construction Equipment won't turn?
- S
  Steven RiceSep 3, 2025
  If the chain on your Toro Construction Equipment isn't turning, sand or debris might have built up in a tooth root of the drive sprocket; run the chain backward and then reduce the chain tension. The digging chain might be too tight, so adjust the digging chain tension. If these steps don't resolve the issue, the trencher boom end bearing may have failed, the trencher drive system might be damaged, or the hydraulic system could be obstructed, contaminated, or damaged.
S
Sue CarrollSep 5, 2025
How to fix abnormal vibration in my Toro Construction Equipment?
- K
  Karen PattersonSep 5, 2025
  If your Toro Construction Equipment is experiencing abnormal vibration, the engine mounting bolts might be loose; tighten them.
K
Kristina ParkSep 7, 2025
Why is my Toro TRX-26 engine losing power?
- R
  Regina PerkinsSep 7, 2025
  If your Toro Lawn and Garden Equipment engine is losing power, consider the following: 1. The engine load might be excessive, so reduce the ground speed. 2. The air cleaner may be dirty; clean or replace the air cleaner elements. 3. The oil level in the crankcase could be low; check and add oil. 4. The cooling fins and air passages under the engine blower housing might be plugged; remove any obstructions. 5. The spark plug may be pitted, fouled, or have an incorrect gap; install a new, correctly gapped spark plug. If the issue persists, there might be dirt, water, or stale fuel in the fuel system; in this case, contact your Authorized Service Dealer.
W
Whitney HendersonSep 9, 2025
What to do if my Toro Lawn and Garden Equipment engine overheats?
- S
  Shirley ValdezSep 9, 2025
  If your Toro Lawn and Garden Equipment engine is overheating, consider the following: 1. The engine load might be excessive, so reduce ground speed. 2. The oil level in the crankcase could be low; check and add oil. 3. The cooling fins and air passages under the engine blower housing might be plugged; remove any obstructions.

Summary

Introduction and Safety

Introduction to the Trencher

Overview of the trencher's purpose and safe operation guidelines.

General Safety Precautions

Key safety instructions to prevent injury and damage during operation.

Setup and Product Overview

Initial Setup Procedures

Steps for installing components and checking fluid levels.

Machine Controls Overview

Identifies and explains the functions of the machine's controls.

Operation

Adding Fuel and Starting Engine

Safe fueling procedures and steps to start the engine.

Digging and Transporting the Machine

How to dig trenches and secure the machine for transport.

Operating Tips and Chain Selection

Advice for efficient operation and selecting the correct chain.

Maintenance

Recommended Maintenance Schedule

Outlines recommended maintenance tasks and their service intervals.

Engine Maintenance Procedures

Guides for air cleaner, engine oil, and spark plug maintenance.

Drive System Maintenance

Procedures for tracks, belts, and drive components.

Hydraulic System Maintenance

Procedures for hydraulic fluid, filters, and hoses.

Trencher Maintenance

Procedures for digging teeth, chain, and boom adjustment.

Cleaning and Storage

Steps for cleaning debris and preparing the machine for storage.

Troubleshooting and Schematics

Troubleshooting Common Issues

Solutions for engine, drive, and chain problems.

System Schematics

Diagrams illustrating electrical and hydraulic systems.

Toro TRX-26 Specifications

General

Engine Type	Kohler Command Pro ECV749
Engine Displacement	747 cc
Fuel Capacity	5 gal (18.9 L)
Weight	1, 465 lbs (665 kg)
Cutting Width	26 in (66 cm)
Deck Material	Steel
