Installing the Receiver Module
Important: Installation of this product must comply with national and local building and
electrical codes. For assistance, contact a professional irrigation system contractor in your area.
The receiver module is suitable for either indoor or outdoor installation. Select a location next to
the controller that provides the following conditions:
• The display screen is clearly visible and the control buttons are easily accessed.
• The connection cable can reach the controller wiring terminal strip without straining.
• The antenna will be unobstructed and is able to be adjusted.

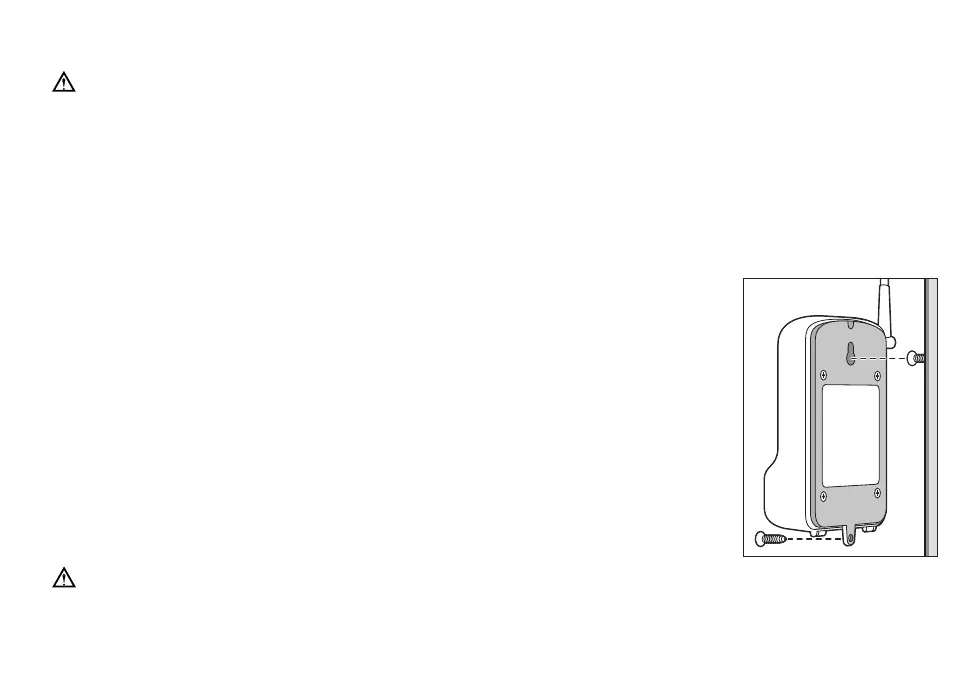

1. Install one of the provided stainless steel screws into the wall at the
intended receiver location. Leave a 1/8" (3mm) gap behind the screw head.
Note: Use screw anchors if installing the receiver on drywall or masonry.
2. Hang the receiver on the screw ensuring the keyhole slot drops down
onto the screw shaft. Back the screw out as necessary for good fit.
3. Install a second screw through the lower tab to secure the receiver.
4. Route the connection cable through the bottom of the controller cabinet
to the wiring connection terminals.
Important: If the receiver module is installed outdoors, be sure to keep the cover in the
closed position when you do not need to view the display or access the control buttons.
5
Figure 1
