Maintenance
16
Air Cleaner
Service Interval/Specification
Foam Element: Clean and re-oil after every 25
operating hours, or once a year, whichever occurs
first.
Paper Element: Replace after every 100 operating
hours or once a year, whichever occurs first.
Note: Service the air cleaner more frequently
(every few hours) if operating
conditions are extremely dusty or
sandy.
Removing the Foam and Paper Elements
1. Disengage the blade control (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine.
2. Open the hood.
3. Clean around the air cleaner to prevent dirt from
getting into the engine and causing damage.
Unscrew the knob and remove the air cleaner
cover (Fig. 12).
1
2
1798

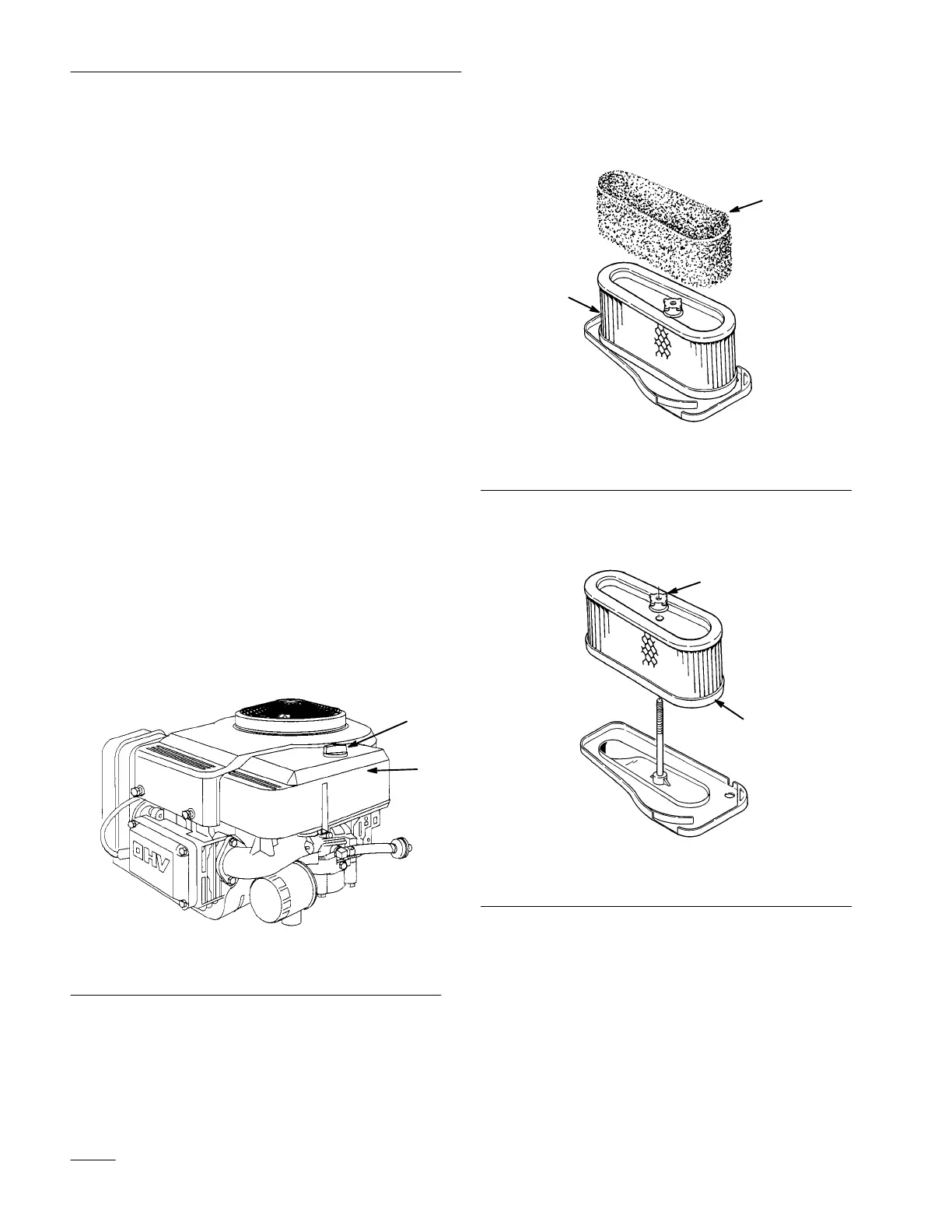

Figure 12
1. Knob 2. Air cleaner cover
4. Carefully slide the foam element off the paper
element (Fig. 13).
1
2
Figure 13
1. Foam element 2. Paper element
5. Unscrew the rubber nut and remove the paper
element (Fig. 14).
2
1
Figure 14
1. Rubber nut 2. Paper element
