Maintenance
24
Fuse
Service Interval/Specification
The electrical system is protected by fuses. No
maintenance is requires, however, if a fuse blows
check the circuit wiring for a short. To replace a fuse
pull up (Fig. 26) to remove from the socket. Push
down to insert.
Fuse: 10 amp, blade-type.
1672
1
2

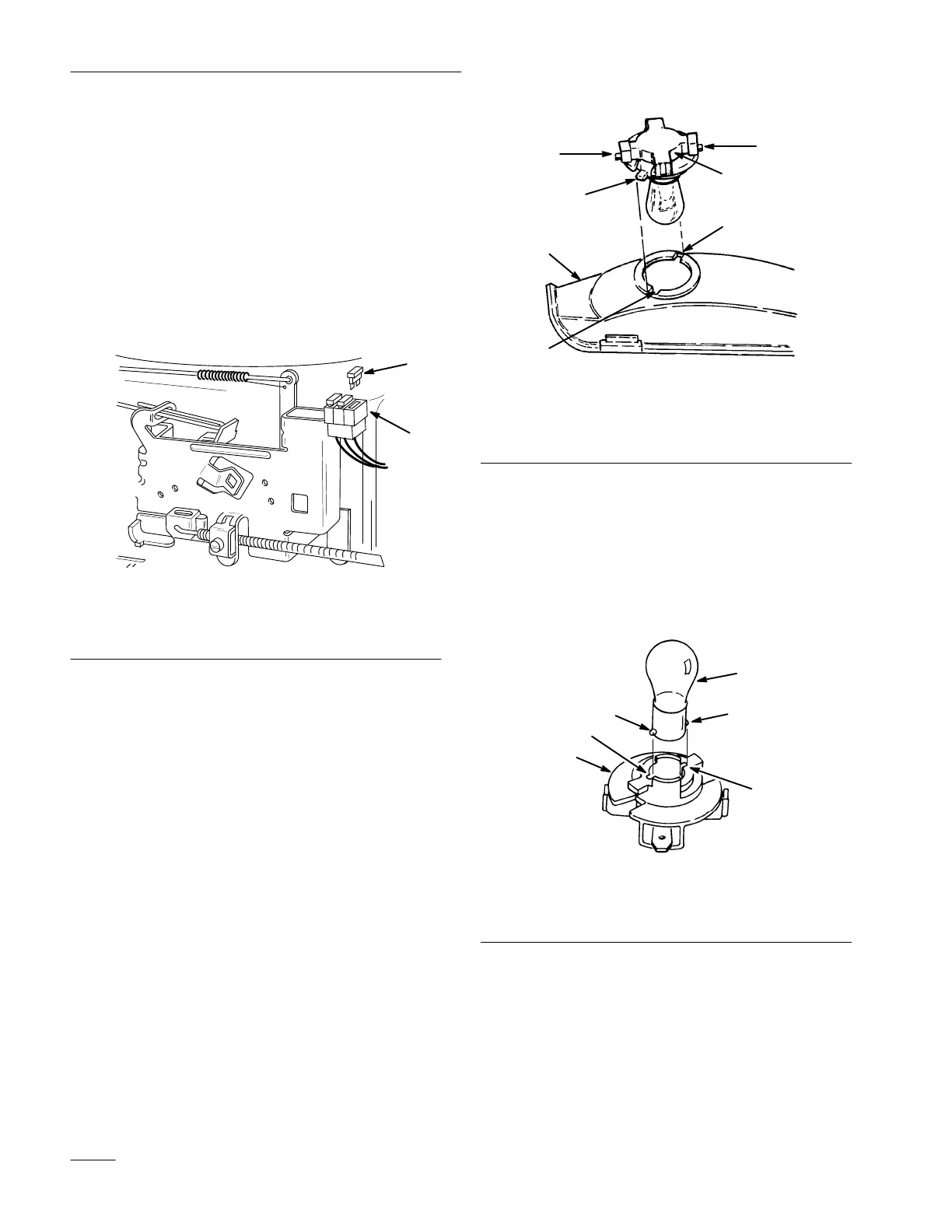

Figure 26
1. Fuse (removed)
2. Socket
Headlights
Specification: Bulb # 1156, automotive type.
Removing the Bulb
1. Disengage the blade control (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine.
2. Open the hood. Pull wire connectors off both
bulb holder terminals.
3. Rotate the bulb holder 1/4 turn counterclockwise
and remove it from the reflector (Fig. 27).
4. Push and rotate the bulb counterclockwise until
it stops (approx. 1/4 turn) and remove bulb from
the bulb holder (Fig. 28).
1
2
3
4
4
5
5
Figure 27
1. Bulb holder
2. Reflector
3. Tabs
4. Slots
5. Terminals
Installing the Bulb
1. The bulb has metal pins on the side of its base.
Align the pins with the slots in the bulb holder
and insert the base into the holder (Fig. 28).
Push and rotate the bulb clockwise until it stops.
1
2
3
4
2
4
Figure 28
1. Bulb
2. Metal pins
3. Bulb holder
4. Slots
2. The bulb holder has two tabs (Fig. 27). Align the
tabs with the slots in the reflector, insert the bulb
holder into the reflector and rotate it 1/4 turn
clockwise until it stops.
3. Push the wire connectors onto the terminals on
the bulb holder.
