Installing the Seats
Note: This procedure is only needed for Model
No. 07252TC.
Insert the seat bracket into the seat base opening and pivot
the seat downward (Fig. 6).
1
2

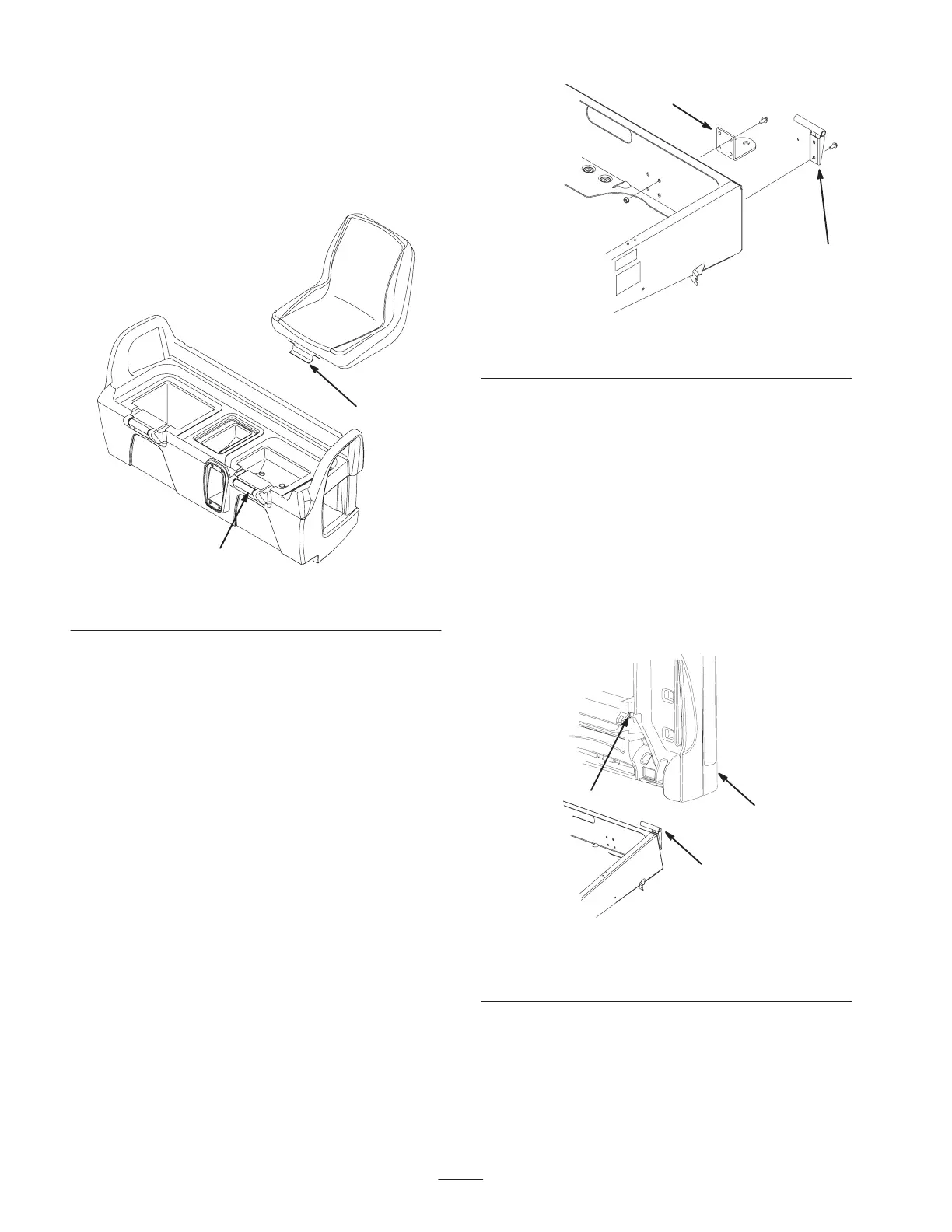

Figure 6
1. Seat bracket 2. Seat base
Installing the Hitch
Note: This procedure is only needed for Model No.
07252TC.
1. Remove the 4 bolts and nuts from the inside rear of the
frame.
2. Align the hitch with the mounting holes on the frame.
Secure the hitch with the screws and nuts (Fig. 7).
1
2
Figure 7
1. Hitch 2. Pivot bracket
Installing the Cargo Box
Note: This procedure is only needed for Model
No. 07252TC.
1. Position the cargo box onto the frame. The cargo box
must lay flat and be centered.
2. Mount the left hand pivot bracket to the left rear corner
of the frame with 2 flange head screws (3/8 x 1 inch).
Position the bracket as shown in Figure 7.
3. Slide the cargo box mounting hole onto the pivot
bracket (Fig. 8).
1
3
2
Figure 8
1. Cargo box
2. Pivot bracket
3. Cargo box mounting hole
4. Insert the right hand pivot bracket into the mounting
hole in the cargo box and then mount it to the frame.
5. Have another person help to raise the cargo box.
6. Loosen the bolt securing the prop rod clip to the frame
until you can slide the J-hook end of the prop rod under
the clip (Fig. 9).
