Page 5 – 39
4.

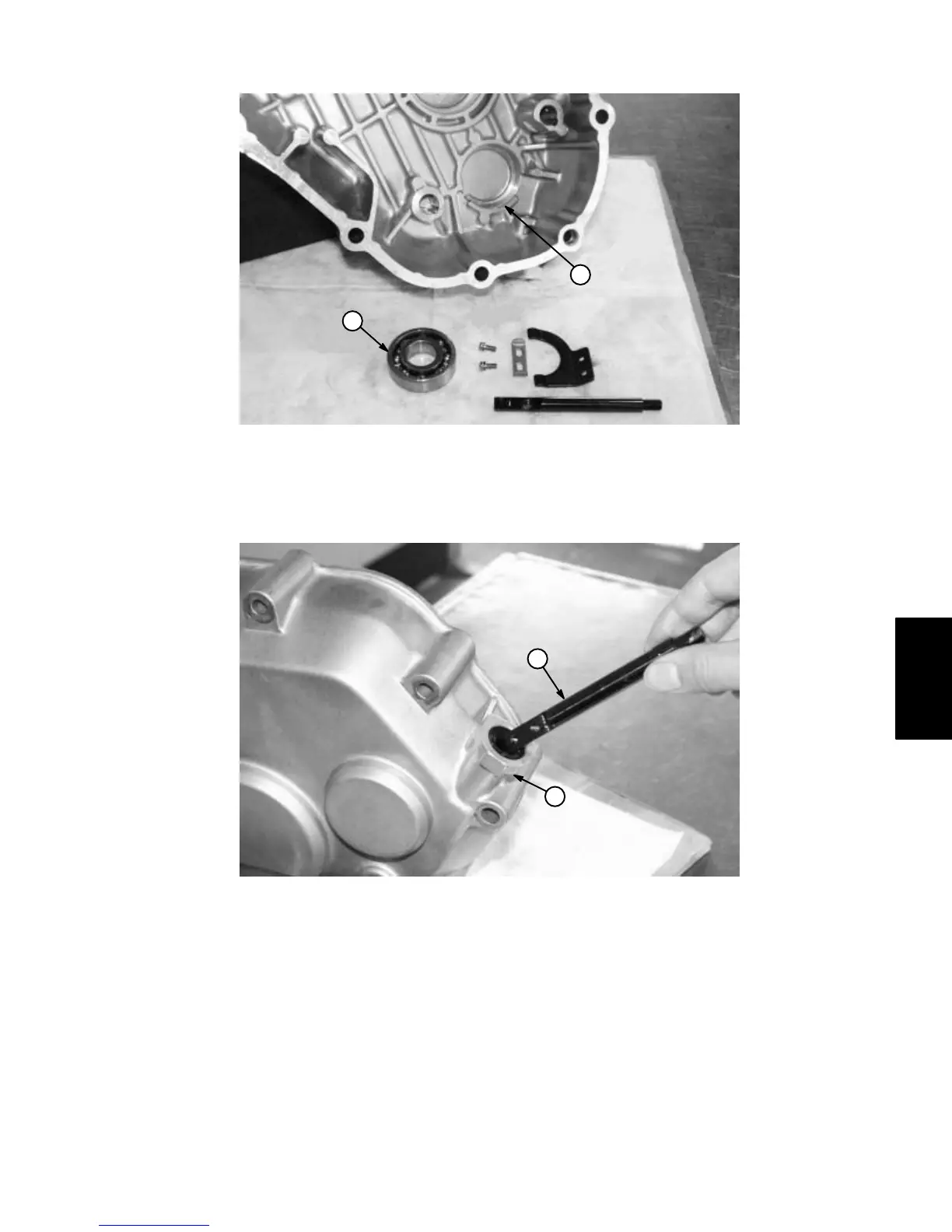

Assemble governor fork.
1. Ball
bearing
2.
Case
(bore)
Figure 63
2
1
A. Install
ball
bearing into the bore of the case (RH).
1. Governor
shaft
2.
Boss
Figure 64
2
1
IMPORT
ANT
:
Make sure not to damage the oil seal
when
installing the governor shaft into the governor
boss.
B. Lubricate
governor shaft
with molybdenum disul-
fide grease before installing.
C.
Install governor shaft into the boss.
Drive
T
rain
92
94
