Toro Workman GTX Installation Instructions

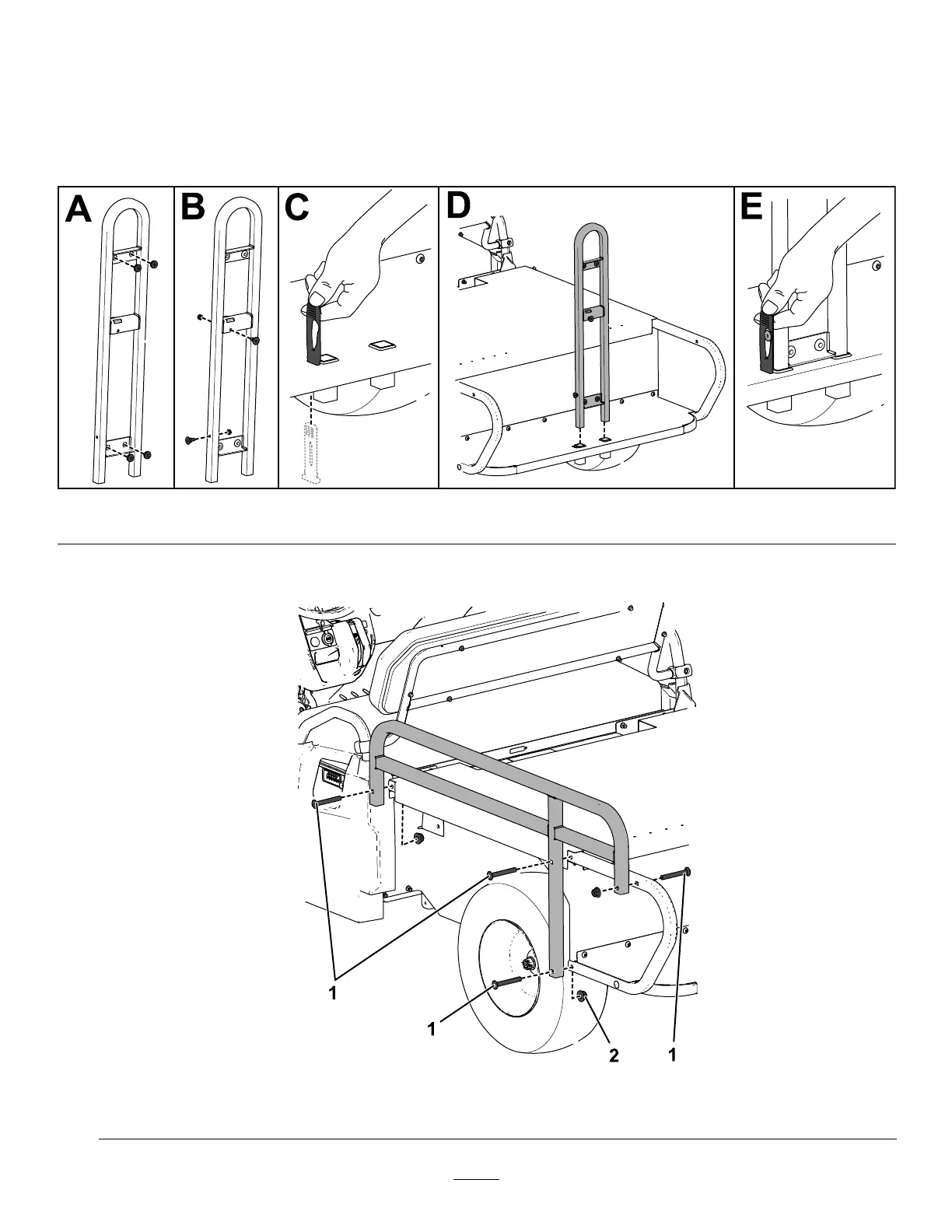

3.Install4rubbergrommetsontotherear-seathandle(AofFigure8).
4.Install2countersunkscrews(1/4inch)and2locknuts(1/4inch)ontotherear-seathandle(BofFigure8).
5.Feedthehold-downstrapthroughthebottomofthefootrest(CofFigure8).
6.Installtherear-seathandleontothefootrest(DofFigure8).
7.Securetherear-seathandletothefootrestbypullingthehold-downstrapupandaroundthecountersunk
screw(EofFigure8).
g243744
Figure8
8.Installthesiderailstotheatbedassemblywith8carriagebolts(3/8x3inches)and8hexnuts(3/8
inch)asshowninFigure9.
g258079
Figure9
1.Carriagebolt(3/8x3inches)2.Hexnut(3/8inch)
