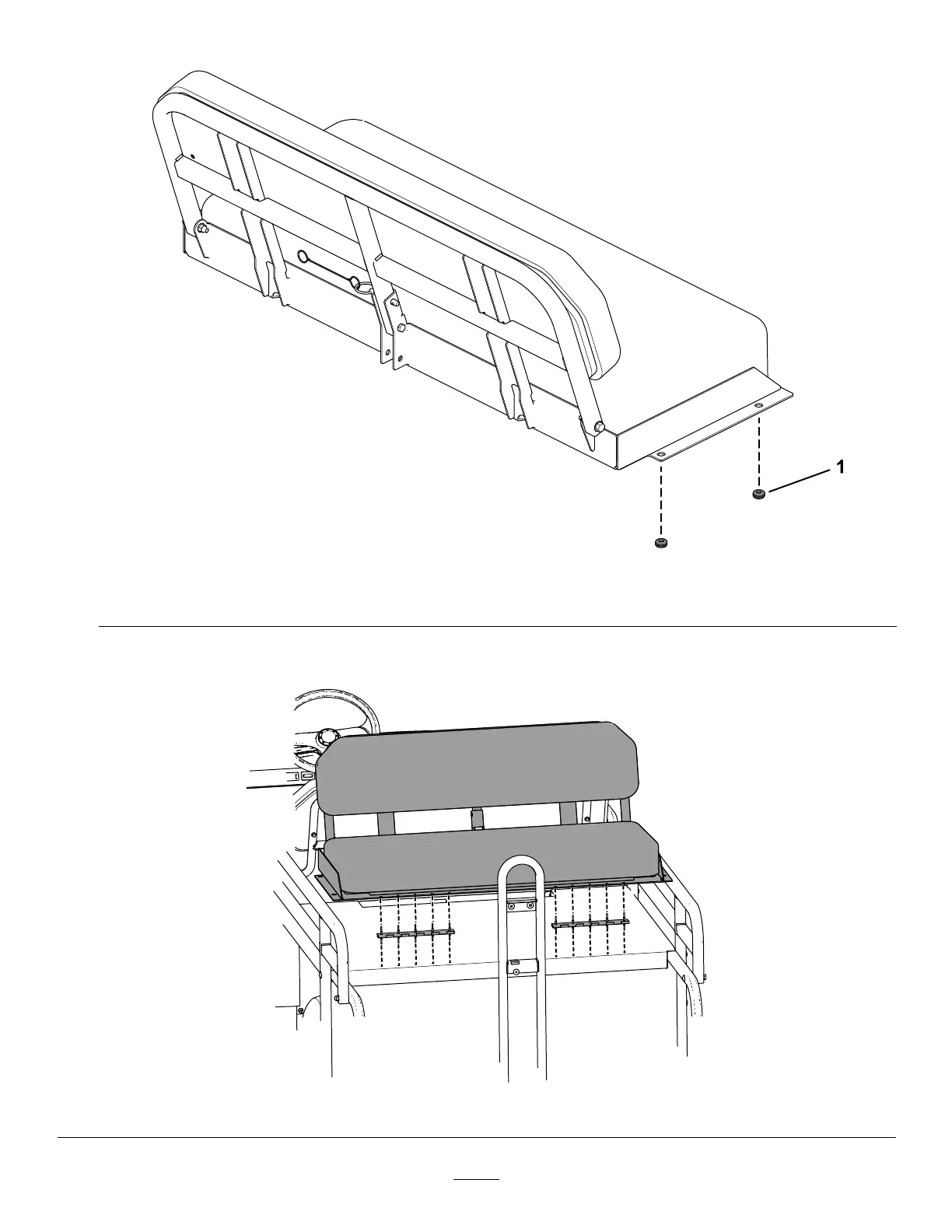

9.Install4rubbergrommetsontheedgesoftheseatbaseasshowninFigure10.
g258080
Figure10
1.Rubbergrommet
10.Installtheseatassemblyontotheatbed,lininguptheholesontheatbedwiththeholesonthehinges,
andsecuretherivetseatassemblytotheatbed(Figure11).
g243870
Figure11
6
