Workman MD/MDX
Drive Train
Page 5 -- 38

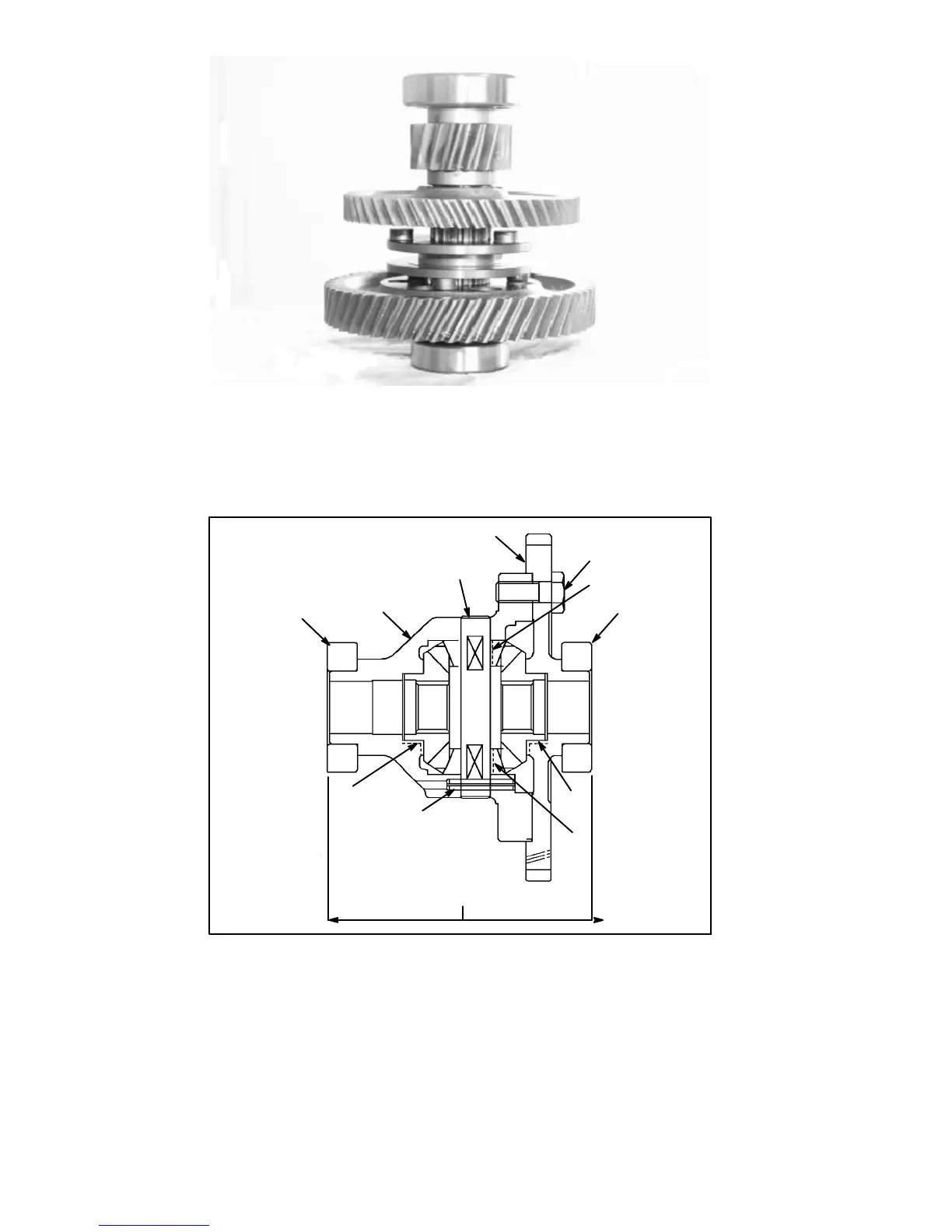

Figure 57
D. The center shaft should appear as above when
assembled.
3. Assemble differential assembly.
1. Pinion gear (greased surface)
2. Pinion shaft
3. Side gear (greased surface)
4. Differential case
5. Gear 62
6. Bolt
7. Spring pin
8. Ball bearing
9. Ball bearing
Figure 58
8
3
7
1
9
1
6
5
2
4
3
123.3 to 124.0 mm
A. Apply molybdenum disulfide grease to the inside
of both pinion gears where they contact the pinion
shaft. Apply molybdenum disulfide grease to the out-
side of both side gears where they contact the differ-
ential case and gear 62.
