Workman MD/MDX Drive TrainPage 5 -- 37

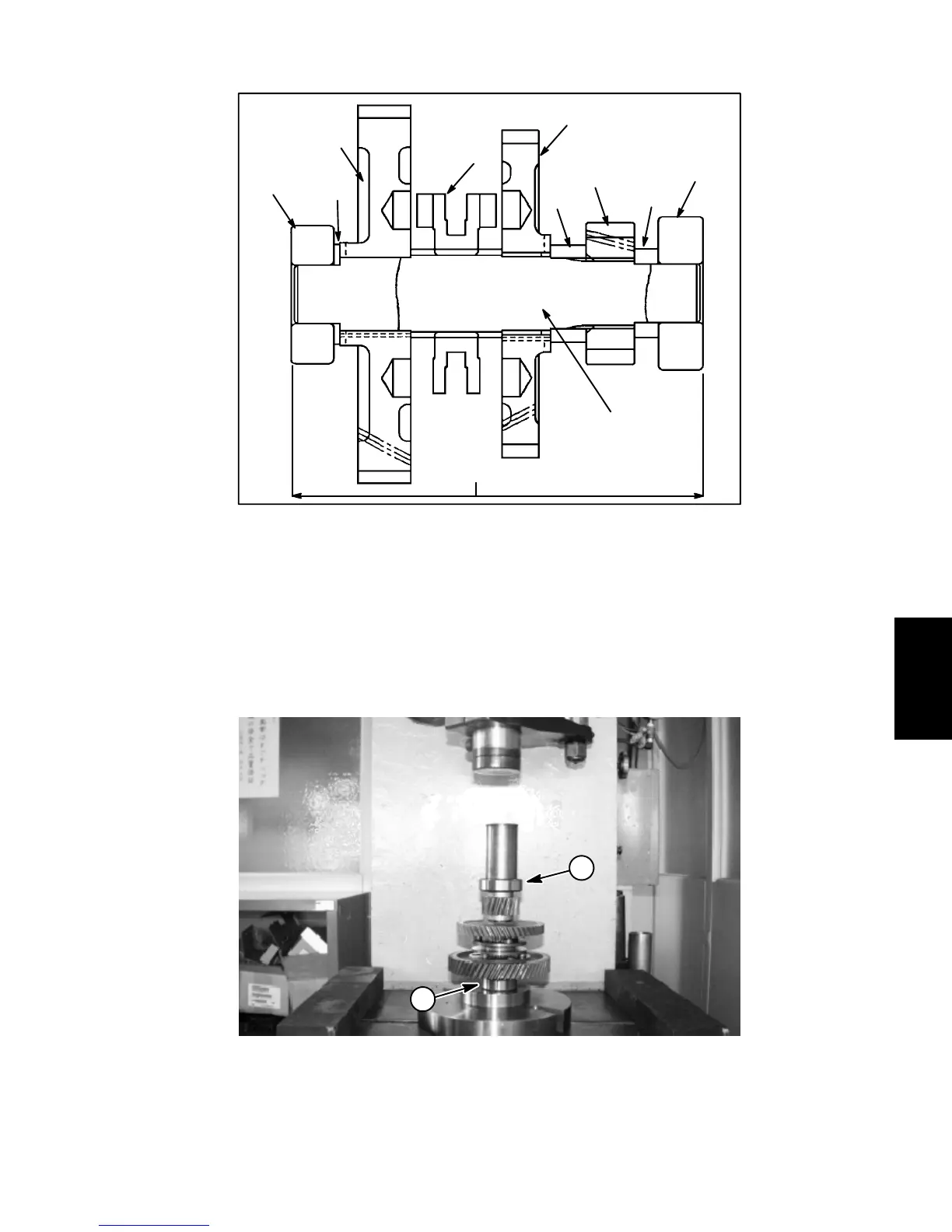

2. Assemble the center shaft assembly.
1. Pin clutch
2. Center shaft
3. Gear 47
4. Gear 55
5. Collar
6. Gear (small)
7. Bearing
8. Bearing
9. Spacer
Figure 55
7
4
6
3
5
5
8
2
1
136.8 to 137.1 mm
9
NOTE: Before assembling, apply molybdenum disul-
fide grease to the inside of gears 47 and 55.
A. Slide pin clutch onto the centershaft. Install gears
47 and 55 onto shaft noting c orrect orientation of
gears. Slide collars, small gear and spacer onto the
center shaft.
1. Ball bearing 2. Ball bearing
Figure 56
1
2
B. Press ball bearings onto the center shaft using a
bearing press.
C. Make sure distance from one ball bearing outer
edge to the other ball bearing outer edge is 136.8 to
137.1 mm (Fig. 55).
