Workman MD/MDX
Drive Train
Page 5 -- 46

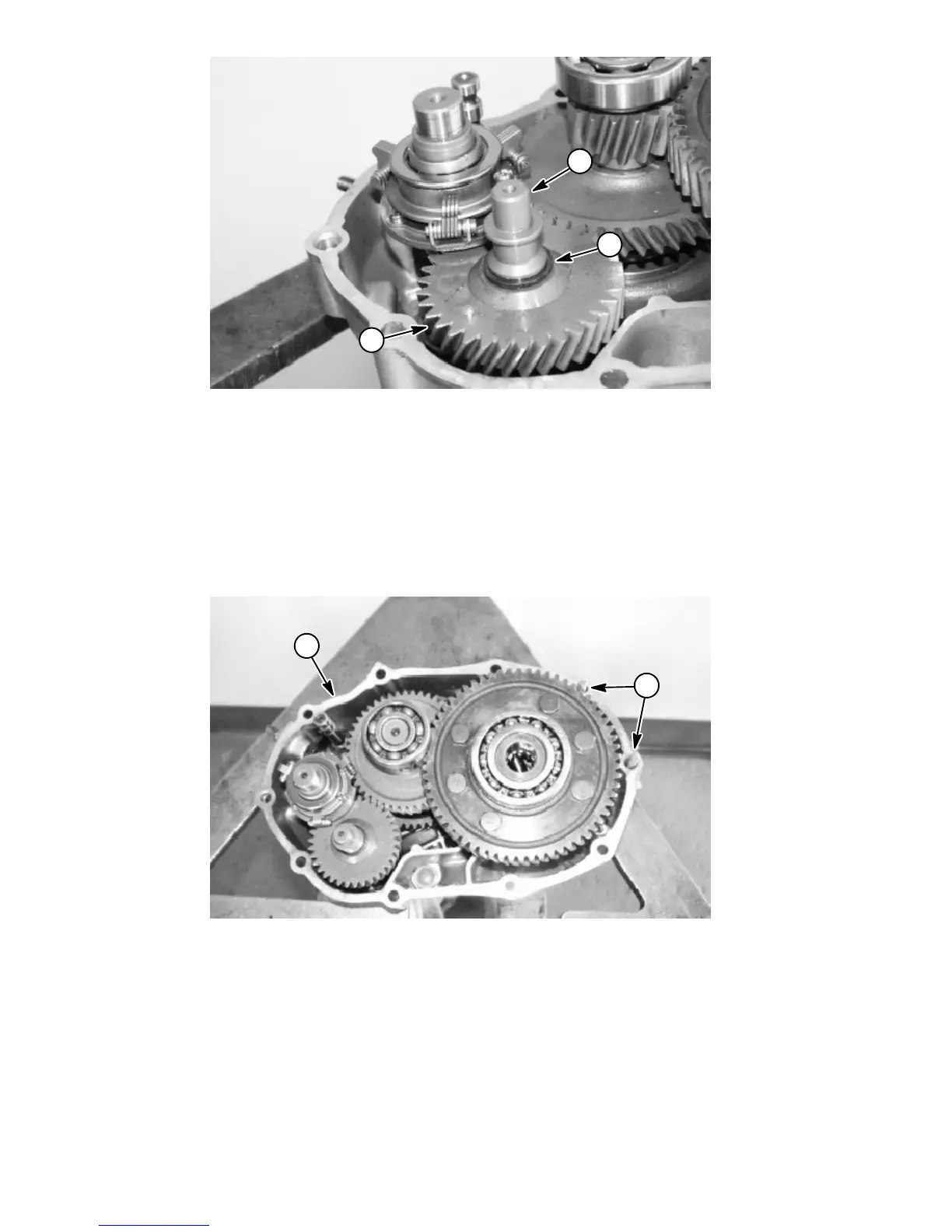

1. Gear 34
2. Counter shaft
3. Spacer
Figure 73
1
2
3
F. Apply molybdenum disulfide grease to the inside
of gear 34 and the contact surface between the case
and the counter shaft.
G. Place gear 34 onto the spacer. Make sure not to
drop the spacer. Insert needle bearing into gear. In-
sert counter shaft with remaining spacer through the
needle bearing, gear 34 and into the spacer and
case.
7. Assemble case (LH and RH).
1. Case (sealing surface) 2. Pipe knock
Figure 74
1
2
A. Make sure gasket sealing surfaces of both c ases
are clean. Install gasket to case.
B. Install both pipe knocks to the case (LH).
