Workman MD/MDX Drive TrainPage 5 -- 45

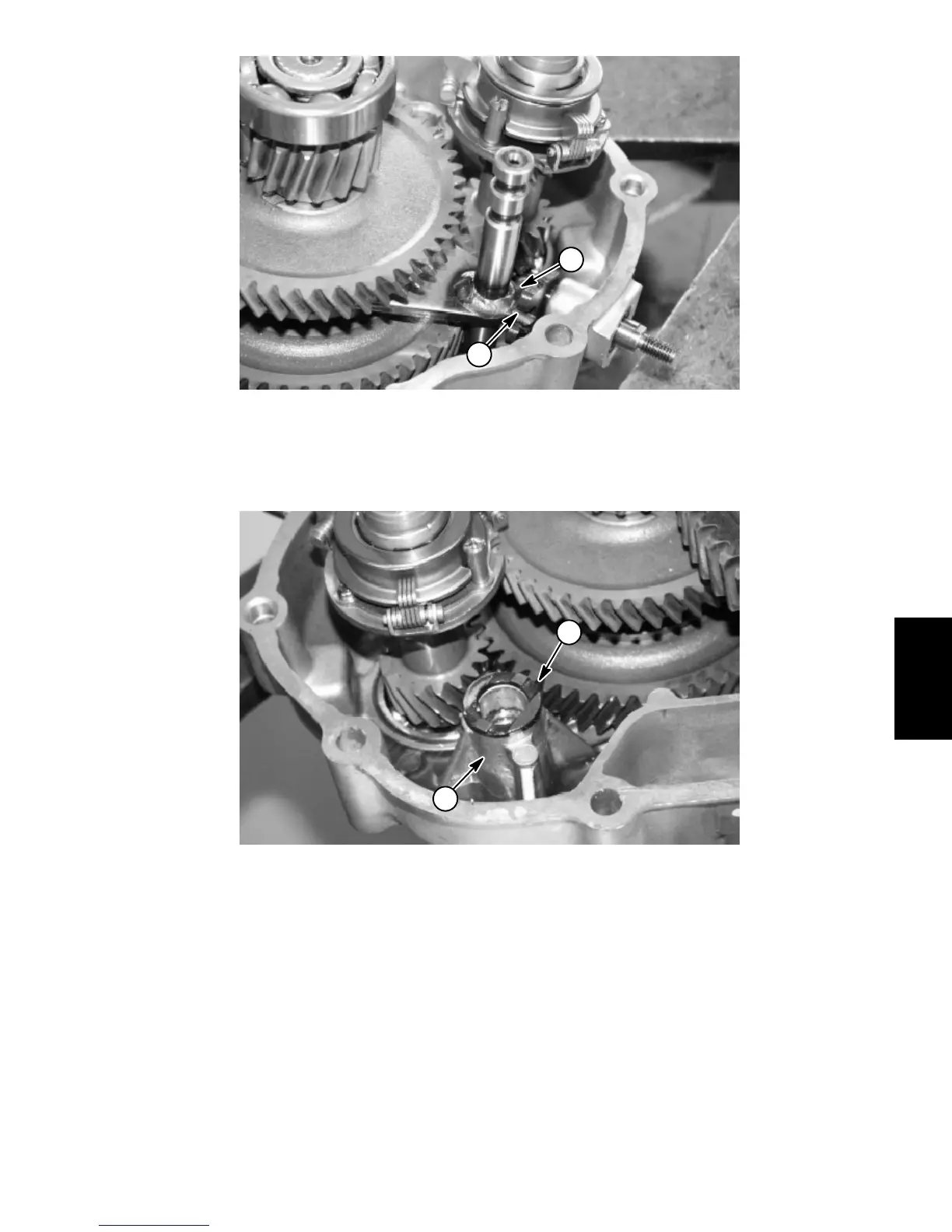

1. Fork (selector shaft) 2. Pin (shift shaft)
Figure 71
1
2
D. Make sure the selector shaft fork is contacting the
pin on the shift shaft.
1. Spacer 2. Boss (counter shaft)
Figure 72
1
2
E. Place spacer on the counter shaft boss of the
case (LH) so the oil groove faces up.
