Toro Workman MDX Service Manual

Workman MD/MDX
Drive Train
Page 5 -- 44
6. Install input shaft, center shaft and differential as-
semblies to the case.

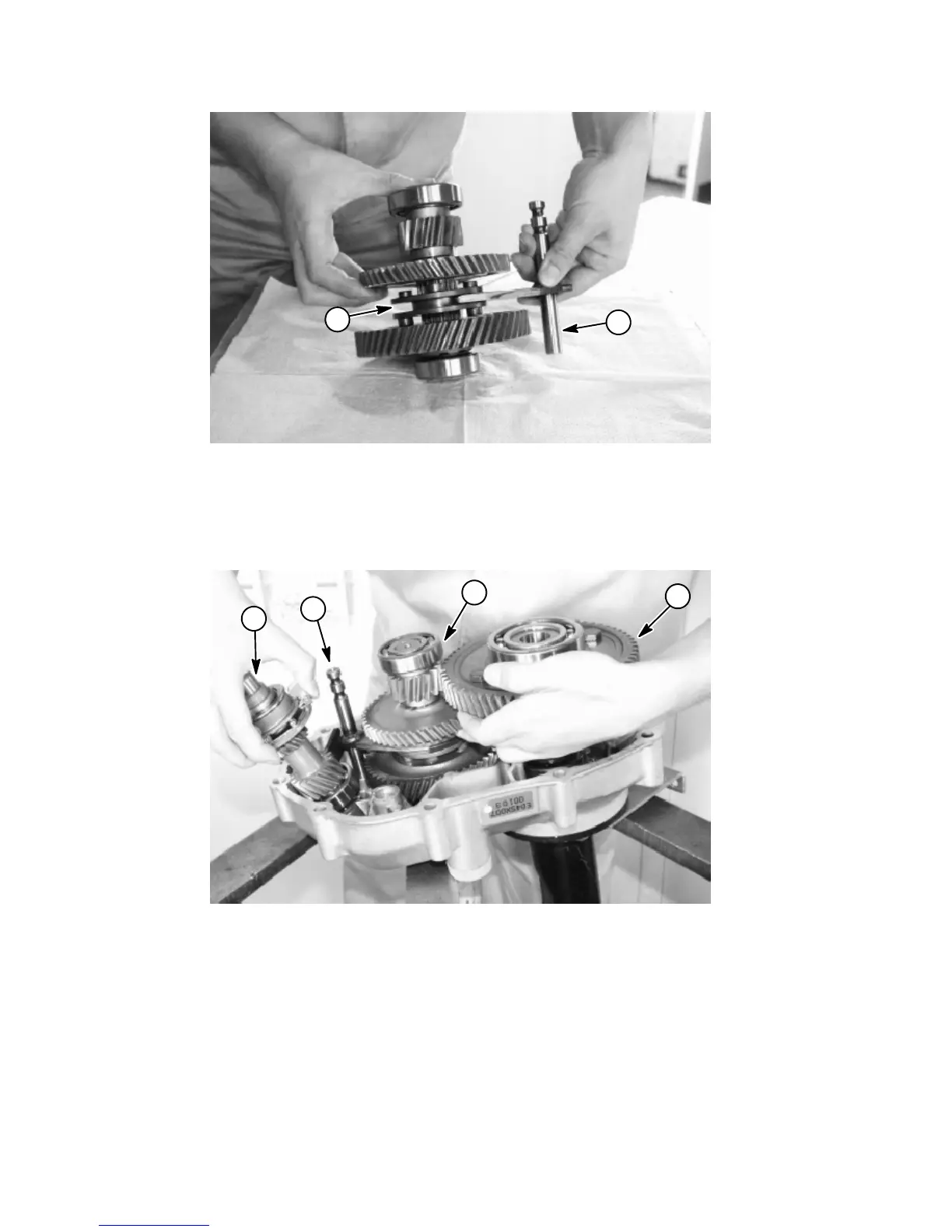

1. Shift shaft 2. Clutch groove
Figure 69
1
2
A. Insert fork of the shift shaft to the clutch groove of
the center shaft assembly.
1. Center shaft assembly
2. Shift shaft
3. Input shaft
4. Differential assembly
Figure 70
1
2
3
4
B. Replace oil seals for the input and selector shafts
on the case (LH) if cracked, nicked or distorted such
that they would not hold a proper seal.
IMPORTANT: Make sure to not damage the oil seal
when installing the input shaft.
C. Install c enter shaft assembly with shift shaft and
differential assembly. Then, install input shaft as-
sembly. Lower differential assembly, center shaft as-
sembly and input shaft assembly into the case at the
same time.
