Workman MD/MDX Drive TrainPage 5 -- 43

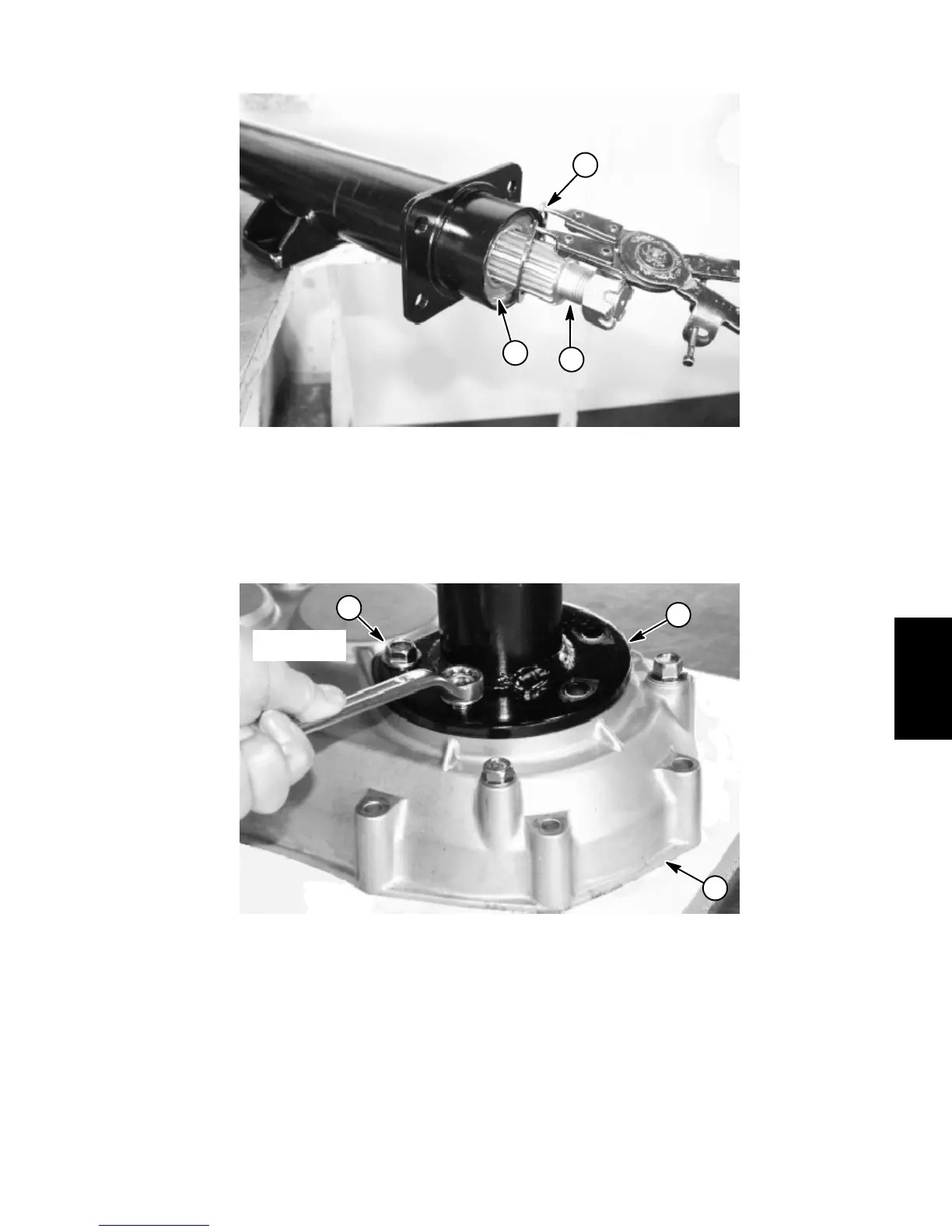

5. Install axle case to case (RH and LH).
1. Axle shaft
2. Snap ring
3. Ball bearing
Figure 67
1
2
3
IMPORTANT: Do not reuse snap ring. Replace snap
ring with new one.
A. Insert axle shaft with snap rings, collar and ball
bearings into the axle case. Install snap ring to the
axle case.
1. Axle case
2. Case
3. Flange bolt
Figure 68
25 to 31 ft--lb
(34to42N--m)
1
2
3
IMPORTANT: Make sure to install the axle case to
the proper side of the case. The right side of the
case takes the short axle case, and the left side
takes the long axle case.
IMPORTANT: Make sure to not damage the oil seal
when installing the axle case to the case.
B. Install axle case to the case. Secure each axle
case to the case with flange bolts. Torque bolts from
25 to 31 ft--lb (34 to 42 N--m).
