Toro Workman MDX Service Manual

Workman MD/MDX
Drive Train
Page 5 -- 42

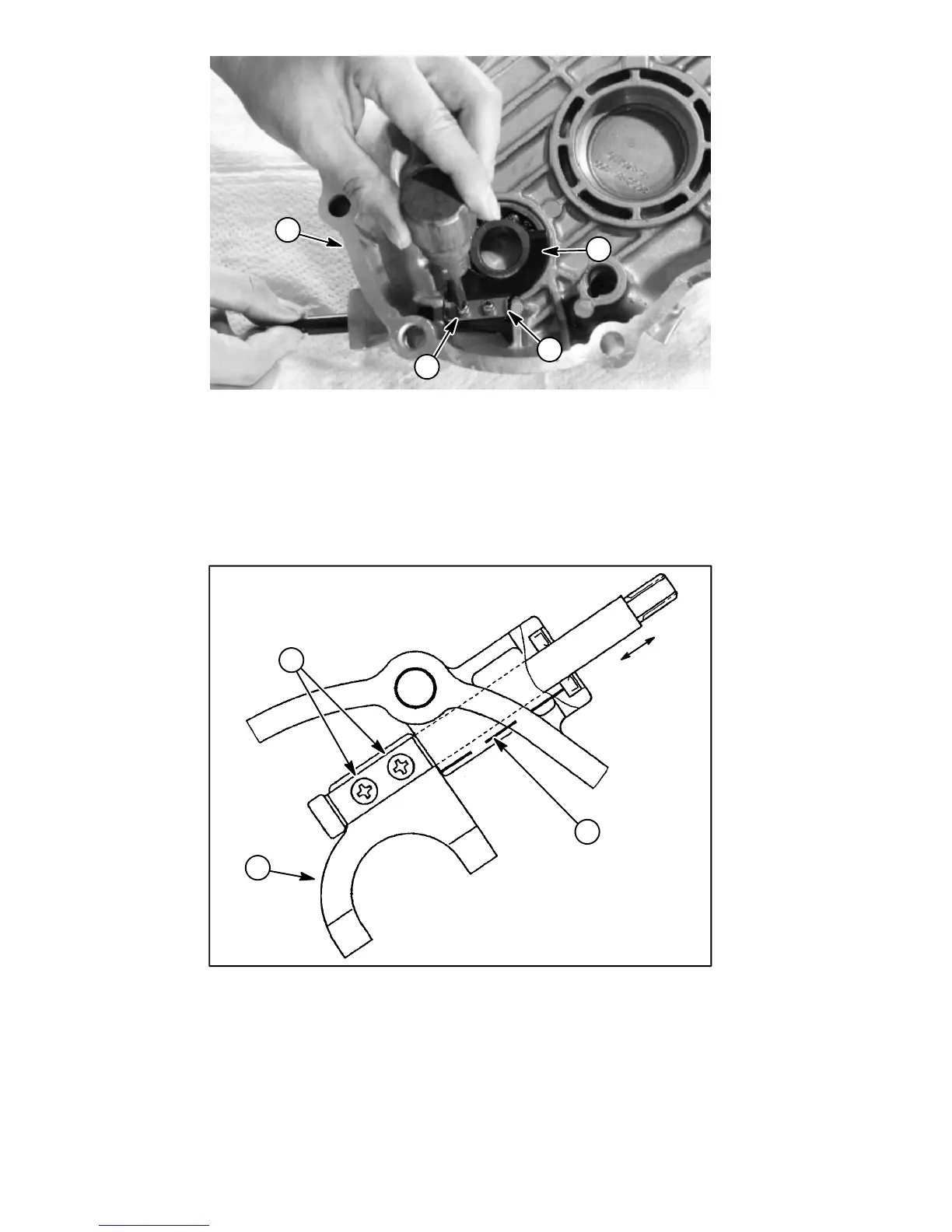

1. Screw (2 used)
2. Stopper
3. Governor fork
4. Case (RH)
Figure 65
1
2
3
4
IMPORTANT: To prevent the screws that secure the
governor fork and stopper to the governor shaft
from loosening, apply Loctite #242 (or equivalent) to
the screw threads.
D. Secure stopper and governor fork to the governor
shaft with both screws.
1. Governor fork
2. Governor shaft (greased surface)
3. Screw (2 used)
Figure 66
(0.5 mm)
12 to 16 in--lbs
(1.4 to 1.8 N--m)
1
2
3
0.020”
E. Adjust governor fork center to the center of the
ball bearing hole. Also, adjust thrust clearance of
the governor shaft to less than 0.020” (0.5 mm).
F. Torque screws from 12 to 16 in--lbs (1.4 to 1.8
N--m).
